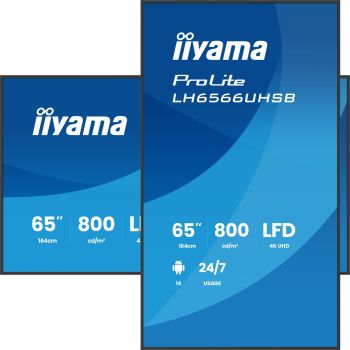

Iiyama LH6566UHSB-B1AG 164,0 cm (65") 16:9 2xHDMI+USB-C VA (freight shipping)
|
1.099,32 EUR |
|
|
( 1.308,19 EUR incl. VAT ) ≈ £920.13 | ≈ $1,225.74 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2440003 |
| Mfg Part No: | LH6566UHSB-B1AG |
| UPC/EAN: | 4948570128235 |
| Weight: | 27.52 kg |
| Type: | MNTR |
Product information for Iiyama LH6566UHSB-B1AG:
Flatscreen monitor for digital signage, continuous operation, ideal for shops, conference rooms, schools and universities, outstanding presentation and picture quality, 4K UHD resolution, LED backlighting, environmental light sensor, horizontal or vertical installation, long-term operation up to 24 hours, video and audio inputs, remote control, rear-side PC slot, TFT screen, 16:9, screen size: 65', resolution: 3840x2160pixels, response time: 6.5ms, brightness: 800cd, viewing angle: 178/178° (H/V), contrast: 5000:1, glass properties: Antiglare, connectivity: Ethernet, HDMI, RS232, USB-C, interface - video: HDMI, interface - wifi: Wi-Fi (802.11ac), operating system: Android 14, VESA / AMPS: 500x500mm, accessories: Remote Control, Accessories - Power Cord - Country: EU, UK, Accessories - Power Cord - Type: C13, IEC Connector, Accessories - Power Supply: Internal
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor manufacturer | MediaTek |
| Processor family | ARM Cortex |
| Processor model | MT9679 |
| Processor architecture | ARM Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 500 x 500 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 1.28 cm |
| Bezel width (top) | 1.28 cm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | VA |
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1428.48 x 803.52 mm |
| Display diagonal (metric) | 163.8 cm |
| Horizontal scan range | 57 - 62 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Touchscreen | |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Other features | |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Mounting kit | |
| Packaging data | |
| Package width | 1640 mm |
| Package depth | 990 mm |
| Package height | 164 mm |
| Package weight | 27.5 kg |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.0 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB Power Delivery up to | 15 W |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DVI port | |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 194 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 194 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen |
| Sustainability certificates | ErP |
| Pallet net height | 115.8 cm |
| Pallet net length | 198 cm |
| Pallet net width | 165 cm |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 1456.5 mm |
| Display depth | 69 mm |
| Display height | 831.5 mm |
| Display weight | 17.8 kg |
| Width | 1456.5 mm |
| Depth | 69 mm |
| Height | 831.5 mm |
| Weight | 17.8 kg |
