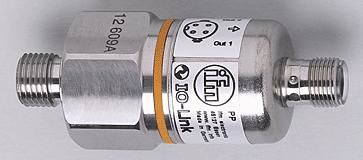

Ifm Electronic PP7554 Electronic pressure sensor, Connector
|
286,74 EUR |
|||||||||||
|
( 341,22 EUR incl. VAT ) ≈ £248.03 | ≈ $333.77 plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 432391 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | PP7554 | ||||||||||
| UPC/EAN: | 4021179189705 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Ifm Electronic PP7554:
Application: Type of pressure: relative pressure , Liquids and gases
Process connection: G ¼ A / M5 I
Operating voltage: 9.6...36 V DC
Electrical design: DC PNP
Output function: 2 x normally open / closed programmable or 1 x normally open / closed programmable + 1 x normally closed (diagnostic function)
Measuring range: -1...10 bar; -14.5...145 psi; -0.1...1.0 MPa
Pressure rating: 75 bar; 1087 psi; 7.5 MPa
Bursting pressure min.: 150 bar; 2175 psi; 15 MPa
Characteristics deviation : < ± 0.25 (BFSL) / < ± 0.5 (LS)
Connection: M12 connector
Housing materials: stainless steel (304S15); FPM (Viton); EPDM/X (Santoprene); PA
Materials (wetted parts): stainless steel (303S22); ceramics; FPM (Viton)
Medium temperature: -25...90 °C
Ambient temperature: -25...85 °C
Protection: IP 68 * / IP 69K
Display: Operation: 2 x LED green ; Switching status: 2 x LED yellow
Accessories (to be ordered separately): Socket, Mounting accessories
Type: PP7554
Questions & answers
What is the delivery time of Ifm Electronic PP7554 Electronic pressure sensor, Connector?
The article Ifm Electronic PP7554 Electronic pressure sensor, Connector is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ifm Electronic PP7554 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ifm Electronic PP7554 Electronic pressure sensor, Connector always at the best possible price. We can give you a discount of 2% on Ifm Electronic PP7554 Electronic pressure sensor, Connector if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Ifm Electronic PP7554 Electronic pressure sensor, Connector we can offer you a price of 278,14 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
