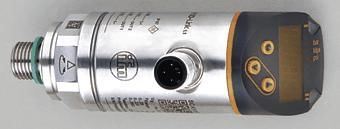

Ifm Electronic PN3592 Electronic pressure sensor, M12 connector
|
475,96 EUR |
|||||||||||
|
( 566,39 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 595675 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | PN3592 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Ifm Electronic PN3592:
Application: Type of pressure: relative pressure, Group 2 fluids according to the Pressure Equipment Directive (PED),, group 1 fluids on request
Process connection: G ¼ A / M5 I (according to DIN EN ISO 1179-2)
Operating voltage: 18...30 V DC
Electrical design: DC PNP
Output function: normally open / closed programmable; 4...20 mA or 0...10 V
Measuring range: 0...100 bar; 0...1450 psi; 0...10 MPa
Pressure rating: 300 bar; 4350 psi; 30 MPa
Bursting pressure min.: 650 bar; 9400 psi; 65 MPa
Characteristics deviation : < ± 0.25 (BFSL) / < ± 0.5 (LS)
Connection: M12 connector
Housing materials: stainless steel (316L / 1.4404); PBT+PC-GF 30; PBT-GF 20; PC
Materials (wetted parts): stainless steel (316L / 1.4404); Al2O3 (ceramics); FKM
Medium temperature: -25...80 °C
Ambient temperature: -25...80 °C
Protection: IP 65 / IP 65
Display: Display unit: 3 x LED green (bar, psi, MPa) ; Switching status: 1 x LED yellow ; Measured values: 4-digit alphanumeric display / alternating indication of red and green
Accessories (to be ordered separately): Socket, Mounting accessories
Type: PN3592
