HP 9X481UT#ABB Docking station Ultra Thunderbolt G6 180W

Your rating:
Average rating
product review for HP 9X481UT#ABB Docking station Ultra Thunderbolt G6 180W
( 0 / 5 ) 0 ratings
HP 9X481UT#ABB
This image may differ from the desired article.
HP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABBHP 9X481UT#ABB
212,39 EUR
( 252,74 EUR incl. VAT )
≈ £177.77  |  ≈ $233.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >1000 pieces
1x HP 9X481UT#ABB Docking station Ultra Thunderbolt G6 180W
Datasheet:file_download Download
Lieske Part No.:2212875
Mfg Part No: 9X481UT#ABB
UPC/EAN: 0198415314925
Weight:2 kg
Type:ACCS

Product information for HP 9X481UT#ABB:

The HP Thunderbolt 4 Ultra 180W G6 docking station (manufacturer number 9X481UT#ABB) is a wired docking solution for notebooks, primarily designed for use in business environments. It serves as a central interface for connecting laptop, monitors, network, and peripheral devices, enabling a tidy workspace in offices or home offices. The docking station features a host interface Thunderbolt 4, which enables data transfer rates of up to 40 Gbit/s and simultaneously supports power delivery over the same cable. The maximum USB power delivery is 180 W, sufficient to fully charge even power-intensive notebooks. Power supply is provided via an integrated power adapter with a capacity of 230 W.

Applications include professional use in office environments, mobile workstations, and home office scenarios where a fast and stable connection between notebook and stationary devices is required. The docking station is particularly suitable for users who frequently switch between mobile and stationary work and require a wired, yet high-performance connection. Support for 8K Ultra HD and a maximum refresh rate of 360 Hz also makes it suitable for demanding display configurations.

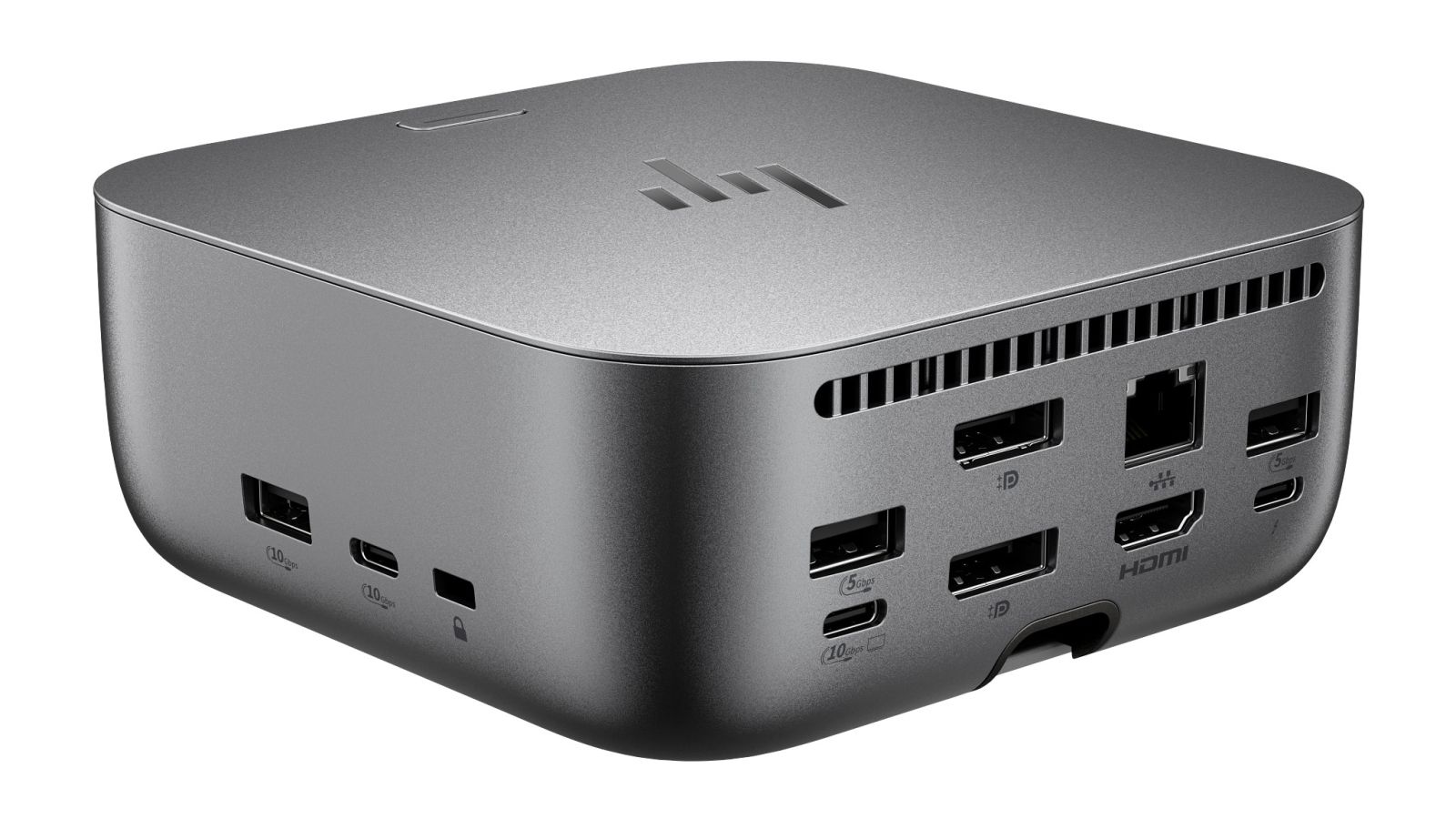

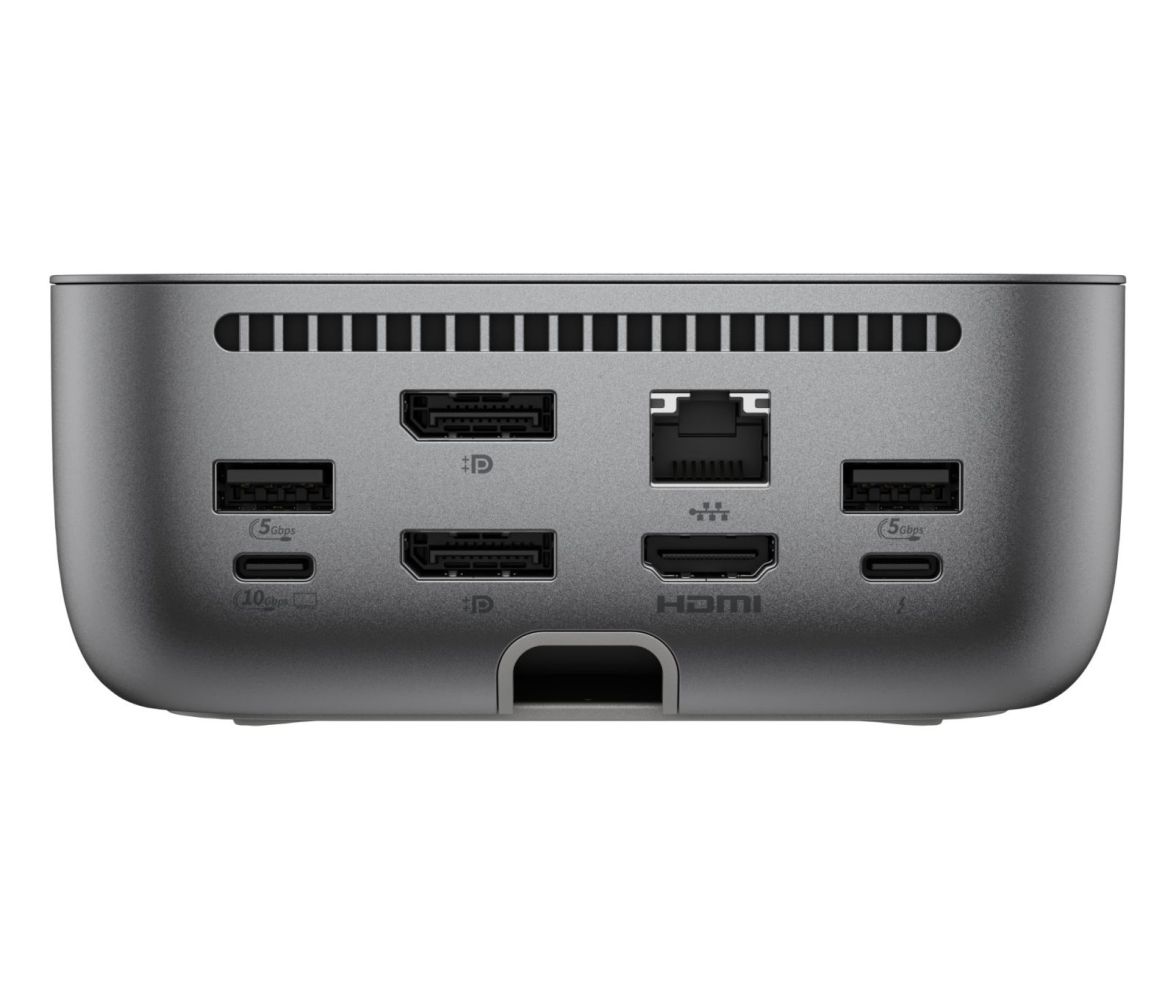

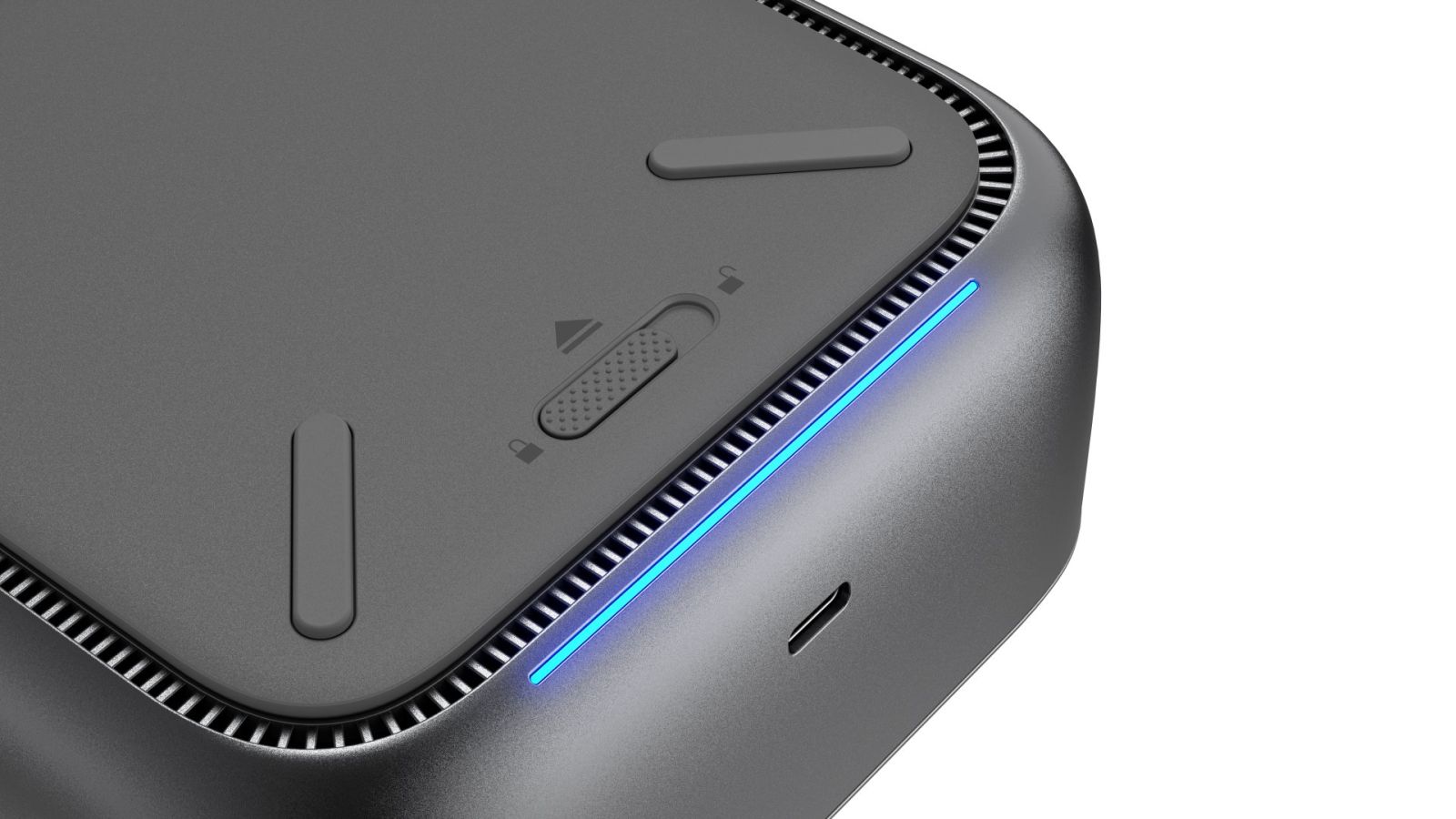

Functions and equipment in detail include multiple ports: two USB Type-A 3.2 Gen 1 (5 Gbit/s), three USB Type-A 3.2 Gen 2 (10 Gbit/s), one USB Type-C 3.2 Gen 2 (10 Gbit/s) with data and power delivery (15 W), one HDMI port (version 2.1), two DisplayPort ports (version 1.4), and one Ethernet LAN port (RJ-45) with data transfer rates up to 2500 Mbit/s. The docking station supports USB Power Delivery, allowing external devices to be charged via USB ports. A mechanical power switch with RGB LED indicator enables turning the power supply on and off. An integrated Nano security slot secures the docking station against theft.

Technology explained simply is based on the use of Thunderbolt 4 technology, which enables high bandwidth and simultaneous power delivery over a single cable. The USB 3.2 Gen 2 ports offer a transfer rate of 10 Gbit/s, while the USB 3.2 Gen 1 ports reach 5 Gbit/s. The HDMI 2.1 interface supports high-resolution video signals, and the DisplayPort 1.4 ports allow connection of multiple monitors. The integrated Ethernet LAN with 2.5 Gbit/s provides a fast network connection suitable for modern office environments. Power delivery via the Thunderbolt cable (up to 180 W) reduces the number of required cables and simplifies workspace setup.

Compatibility and accessories include support for operating systems such as Windows 10, Windows 11, macOS, Linux, ChromeOS, and ThinPro. The docking station has been tested with a range of HP notebooks and supports models from the EliteBook, ZBook, and ProBook series. Compatibility with selected third-party manufacturers is also indicated, with specific models available upon inquiry with local distribution partners. The delivery content includes the docking station itself, a 230 W power adapter, a Thunderbolt 4 cable (1 m), a power cable, product information, and a warranty card.

Installation and mounting is done by connecting the notebook to the dock using the included Thunderbolt 4 cable. The ports are clearly labeled and allow easy connection of monitors, network, USB devices, and other peripherals. The docking station is compact (121 mm x 121 mm x 49.5 mm) and lightweight (790 g), making it space-saving even on smaller workspaces. The operating temperature range is 0 to 35 °C, and the relative humidity during operation is 10 to 90 %.

Advantages in operation include simplified workspace setup through reduced cable count, fast and stable connection via Thunderbolt 4, high power delivery for the notebook, and support for multiple monitors and network connections. The integrated security via the Nano slot and support for Intel vPro technology enhance security and remote manageability in enterprise environments. The docking station is designed for use in offices and home office environments where a reliable and high-performance connection is required.

Logistics data
Master (outer) cases per pallet layer28 pc(s)
Network
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Ethernet LANYes
Operational conditions
Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude-15 - 3048 m
Non-operating altitude-15 - 12192 m
Other features
Compatible operating systemsWindows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
Pallet dimensions (W x D x H) (imperial)1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51")
Pallet dimensions (W x D x H)1200 x 1000 x 140 mm
UNSPSC-code43211602
Special featuresIntel vPro support
Packaging content
Cables includedAC
Warranty cardYes
Packaging data
Package width396 mm
Package depth171 mm
Package height95 mm
Package weight1.14 kg
Performance
HD type8K Ultra HD
Maximum refresh rate360 Hz
Cable lock slot typeNano
Product colourGrey
LED indicatorsPower
Country of originChina, Thailand, Mexico
HP segmentBusiness
Card reader integratedNo
Cable lock slotYes
Ports & interfaces
Connectivity technologyWired
Host interfaceThunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power Delivery up to180 W
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity2
DisplayPort version1.4
Thunderbolt 4 ports quantity1
USB Power Delivery (USB PD)Yes
Microphone inNo
DC-in jackNo
Power
Power supply230 W
Wireless chargingNo
Software
Windows operating systems supportedWindows 10, Windows 11
Mac operating systems supportedMacOS
Other operating systems supportedChromeOS
Linux operating systems supportedYes
Sustainability
Sustainable technologies and materials35% post-consumer recycled plastic
Technical details
Box contentsHP Thunderbolt 4 Ultra 180W G6 Dock; 230 W power adapter; Thunderbolt 4 cable (1 m); Power cord; Product notice; Warranty card
Weight & dimensions
Width121 mm
Depth121 mm
Height49.5 mm
Weight790 g


Product data sheet
Datasheet for HP 9X481UT#ABB, EAN: 0198415314925
