HP 9D9L6UT#ABB S5 Pro 524pf 60,5 cm ( 23,8 inch ) FHD HDMI/DP
|
135,40 EUR |
|
|
( 161,13 EUR incl. VAT ) ≈ £113.06 | ≈ $151.78 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 27 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 542083 |
| Mfg Part No: | 9D9L6UT#ABB |
| UPC/EAN: | 0198122902330 |
| Weight: | 7.22 kg |
| Type: | MNTR |
Product information for HP 9D9L6UT#ABB:
The HP Series 5 Pro 23.8-inch FHD monitor (model 524pf, manufacturer number 9D9L6UT#ABB) is a professional display designed for business use. It features a screen diagonal of 60.5 cm (23.8 inches) and provides a native resolution of 1920 x 1080 pixels in Full HD format with an aspect ratio of 16:9. The display technology is based on an IPS panel with LED backlighting of the side-LED type, ensuring uniform brightness distribution and high color accuracy. The display surface is matte, reducing glare and enabling glare-free operation. Brightness is rated at 350 cd/m², suitable for clear visibility even in daylight. Response time is 5 ms (GTG), and the maximum refresh rate is 100 Hz, ensuring smooth motion. The contrast ratio is 1500:1 (static), with a dynamic contrast ratio of 10000000:1 specified. Viewing angles are 178° horizontally and vertically, enabling good visibility from various positions. Color depth is 8 bit, and the color space standard is sRGB with 100 % coverage, ensuring precise color reproduction. Pixel density is 93 ppi, and the visible screen size is 52.7 cm horizontally and 29.6 cm vertically. Supported resolutions include XGA, SXGA, HD 720, WXGA+, WSXGA+, and 1080p. Horizontal scan frequency ranges from 30 to 120 kHz, and vertical scan frequency from 50 to 100 Hz. The haze rate is 25 %, and surface hardness corresponds to 3H. The color scale is specified as 100 %.
Applications
This monitor is designed for office and professional work environments. It is suitable for tasks requiring clear and precise image reproduction, such as text processing, data analysis, presentations, or graphic editing. Support for 1080p and a high refresh rate of 100 Hz also makes it suitable for applications involving smooth motion. The 3-sided frameless Micro-Edge bezel enables seamless arrangement in multi-monitor setups, visually expanding the workspace. The integrated HP Progressive White Balance technology ensures consistent white point settings across multiple monitors, which is beneficial when working with multiple displays.
Features and Equipment in Detail

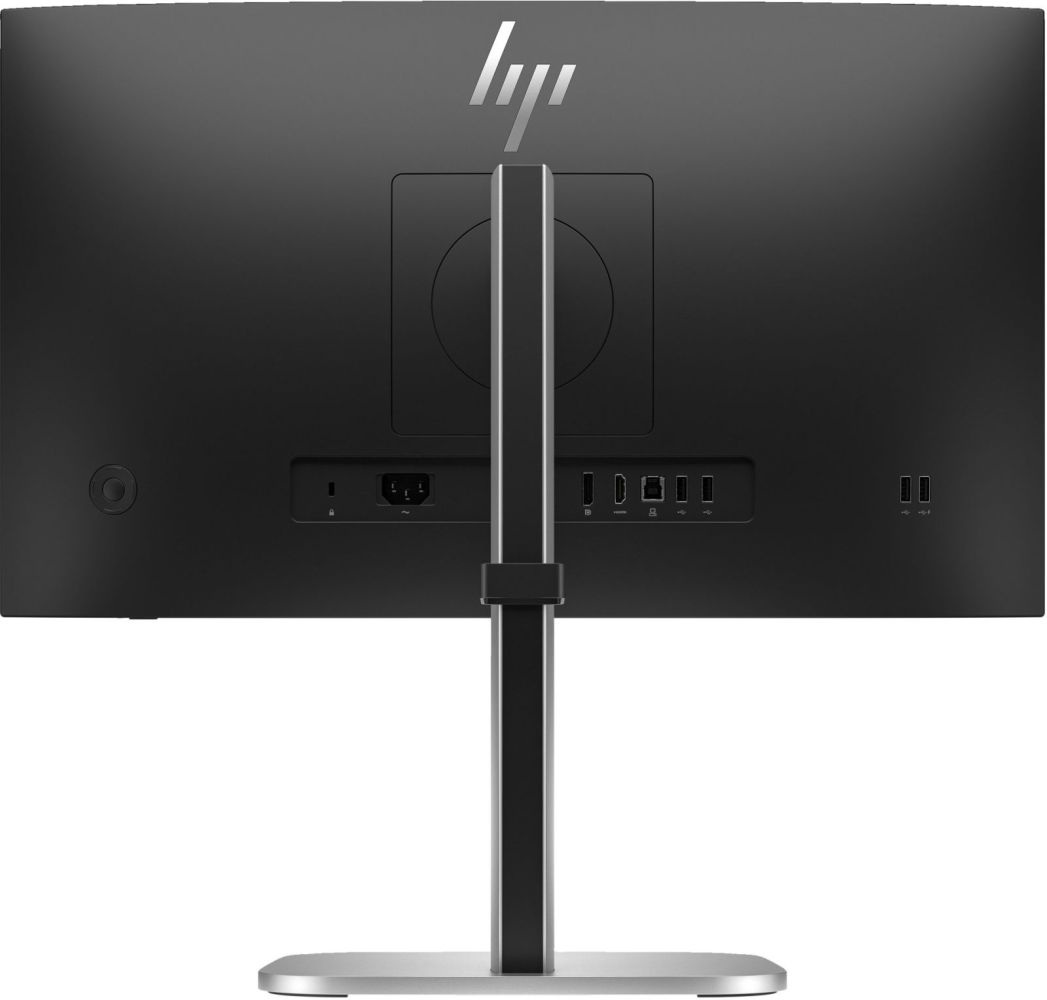

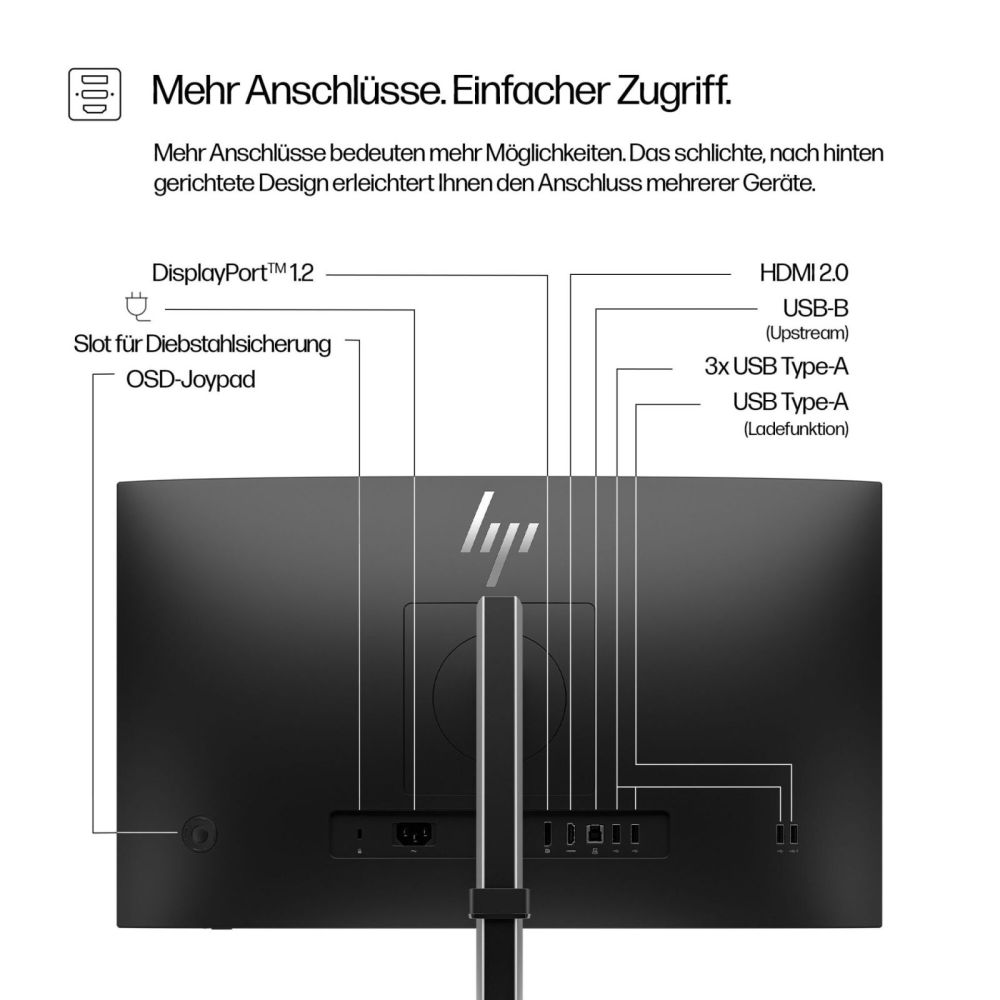

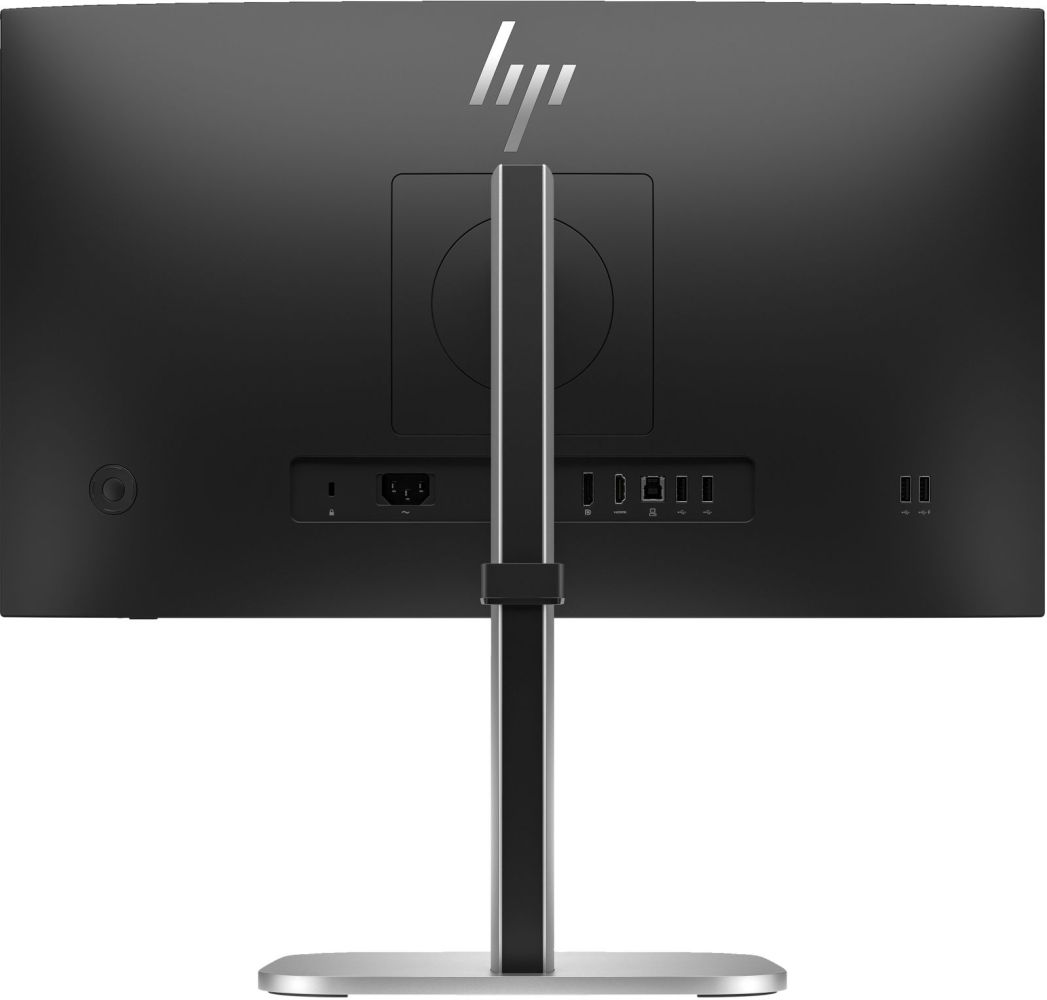

The monitor includes an integrated USB hub of version 3.2 Gen 1 (3.1 Gen 1), featuring one USB-B port (upstream) and four USB-A ports (downstream). The ports are located at the rear, facilitating access. It includes one HDMI port (version 1.4) and one DisplayPort (version 1.2), with HDCP support. These connections enable compatibility with various devices and systems. The integrated HP Eye Ease technology reduces blue light without compromising color accuracy, reducing eye strain. Flicker-free technology ensures comfortable viewing. VESA Adaptive Sync technology supports smooth image reproduction at variable frame rates. No built-in speakers or integrated cameras are included.
Technology Explained Simply
IPS technology (In-Plane Switching) ensures uniform color reproduction and wide viewing angles, regardless of viewing position. Side-LED backlighting provides even brightness distribution across the entire screen. The brightness of 350 cd/m² is sufficient for use in normally lit rooms. The 5 ms (GTG) response time and 100 Hz refresh rate ensure smooth motion, which is beneficial when working with dynamic content. The 100 % sRGB coverage guarantees precise color reproduction, important for professional applications. The Micro-Edge bezel reduces visible frame borders, creating the impression of a larger screen and simplifying multi-monitor arrangements.
Compatibility and Accessories
The monitor is compatible with HDMI 1.4 and DisplayPort 1.2, enabling connection to a wide range of computers, notebooks, and other devices. Support for VESA Adaptive Sync allows smooth image reproduction at variable frame rates. The integrated USB hub function allows connection of up to four USB devices. Connection to another HP Series 5 Pro USB-C monitor via Daisy-Chaining is possible, as is connection via a docking station. The VESA mounting interface of 100 x 100 mm enables wall mounting or attachment to a monitor arm.

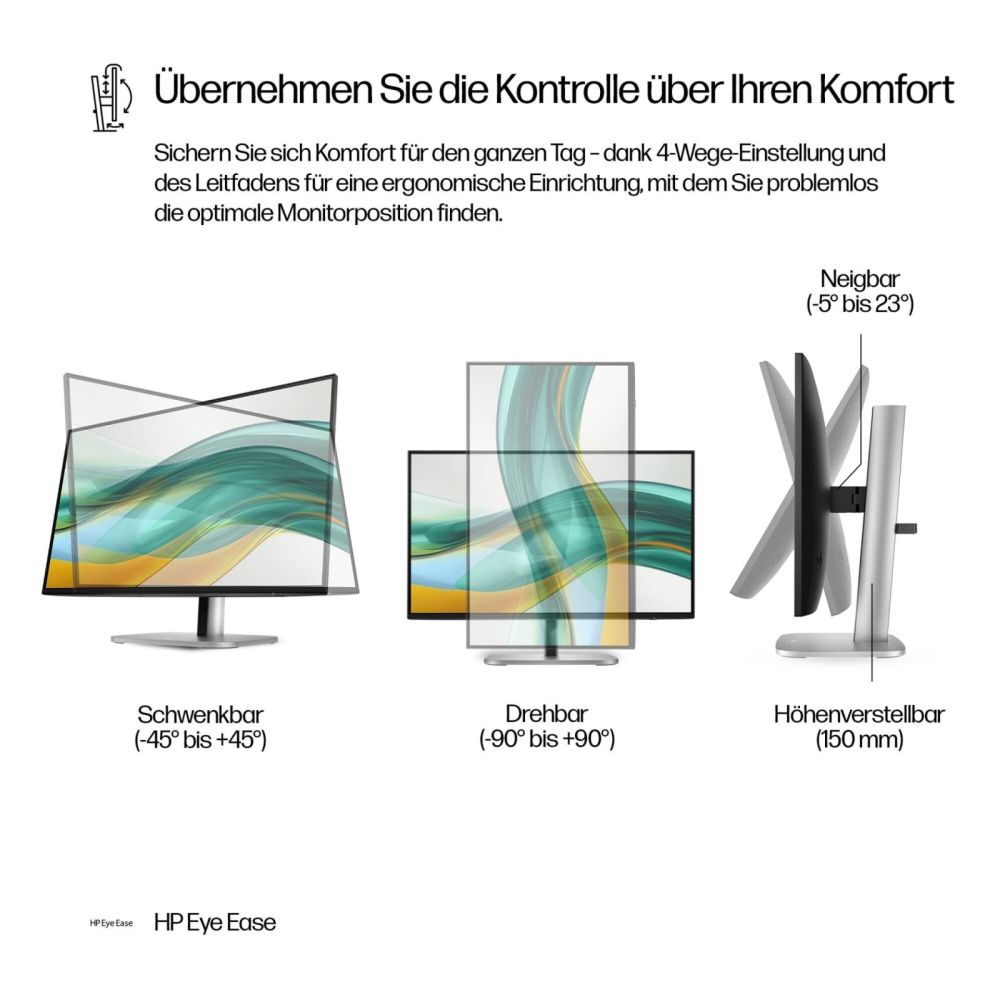

Installation and Mounting

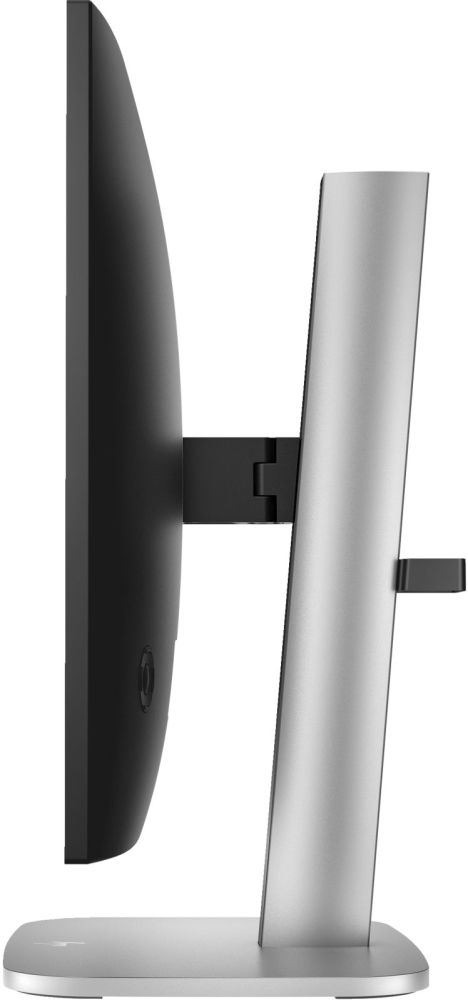

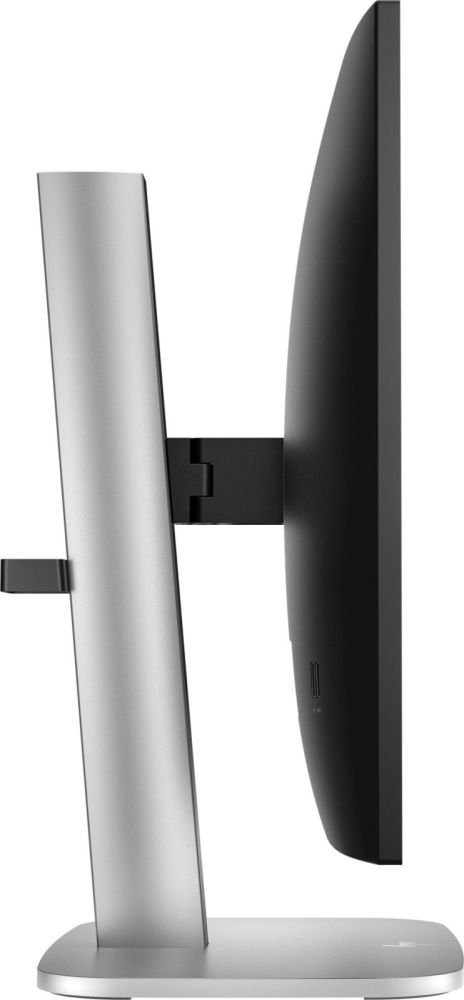

The monitor features an ergonomic 4-way adjustment, allowing height adjustment up to 15 cm, tilt adjustment from -5° to +23°, swivel from -45° to +45°, and pivot from 0° to 90°. The VESA mounting interface of 100 x 100 mm allows mounting on a wall or monitor arm. A cable lock slot is provided to secure the device against theft. Mounting is done via a removable stand available in black and silver. Installation is performed using the included cables (DisplayPort, HDMI, USB-B to USB-A, power cable) and the quick start guide.
Operational Advantages
The monitor offers high image quality with sharp details, smooth motion, and precise color reproduction. The ergonomic adjustability allows individual adaptation to the workspace and posture, increasing all-day comfort. The integrated HP Eye Ease technology reduces eye strain from blue light. The Micro-Edge bezel and 3-sided frameless design enable seamless arrangement in multi-monitor setups. The integrated USB hub function reduces the number of required cables and simplifies connection of peripheral devices. The VESA mounting interface enables flexible installation. The energy efficiency class is C (SDR and HDR), with power consumption in standard operation at 22 W. The housing is made of at least 90 % recycled plastic, and the packaging is made from 100 % paper-based, sustainable sources. Operating temperature ranges from 5 °C to 35 °C. The AC input voltage is 100–240 V at a frequency of 50/60 Hz. The internal power supply provides power. Power consumption values in standby mode are 0.5 W, in off mode 0.3 W, and maximum power consumption is 58 W. The product color is black (Jet Black) with a silver stand. The On-Screen Display (OSD) allows direct control of settings on the device. The connectivity options and ergonomic design make the monitor a flexible solution for professional use.
Scope of Delivery
The scope of delivery includes the HP Series 524pf Series 5 Pro FHD monitor, a DisplayPort cable, an HDMI cable, a USB-B to USB-A cable, a power cable, a warranty card, and a quick start guide poster.
Applications
This monitor is designed for office and professional work environments. It is suitable for tasks requiring clear and precise image reproduction, such as text processing, data analysis, presentations, or graphic editing. Support for 1080p and a high refresh rate of 100 Hz also makes it suitable for applications involving smooth motion. The 3-sided frameless Micro-Edge bezel enables seamless arrangement in multi-monitor setups, visually expanding the workspace. The integrated HP Progressive White Balance technology ensures consistent white point settings across multiple monitors, which is beneficial when working with multiple displays.
Features and Equipment in Detail
The monitor includes an integrated USB hub of version 3.2 Gen 1 (3.1 Gen 1), featuring one USB-B port (upstream) and four USB-A ports (downstream). The ports are located at the rear, facilitating access. It includes one HDMI port (version 1.4) and one DisplayPort (version 1.2), with HDCP support. These connections enable compatibility with various devices and systems. The integrated HP Eye Ease technology reduces blue light without compromising color accuracy, reducing eye strain. Flicker-free technology ensures comfortable viewing. VESA Adaptive Sync technology supports smooth image reproduction at variable frame rates. No built-in speakers or integrated cameras are included.
Technology Explained Simply
IPS technology (In-Plane Switching) ensures uniform color reproduction and wide viewing angles, regardless of viewing position. Side-LED backlighting provides even brightness distribution across the entire screen. The brightness of 350 cd/m² is sufficient for use in normally lit rooms. The 5 ms (GTG) response time and 100 Hz refresh rate ensure smooth motion, which is beneficial when working with dynamic content. The 100 % sRGB coverage guarantees precise color reproduction, important for professional applications. The Micro-Edge bezel reduces visible frame borders, creating the impression of a larger screen and simplifying multi-monitor arrangements.
Compatibility and Accessories
The monitor is compatible with HDMI 1.4 and DisplayPort 1.2, enabling connection to a wide range of computers, notebooks, and other devices. Support for VESA Adaptive Sync allows smooth image reproduction at variable frame rates. The integrated USB hub function allows connection of up to four USB devices. Connection to another HP Series 5 Pro USB-C monitor via Daisy-Chaining is possible, as is connection via a docking station. The VESA mounting interface of 100 x 100 mm enables wall mounting or attachment to a monitor arm.
Installation and Mounting
The monitor features an ergonomic 4-way adjustment, allowing height adjustment up to 15 cm, tilt adjustment from -5° to +23°, swivel from -45° to +45°, and pivot from 0° to 90°. The VESA mounting interface of 100 x 100 mm allows mounting on a wall or monitor arm. A cable lock slot is provided to secure the device against theft. Mounting is done via a removable stand available in black and silver. Installation is performed using the included cables (DisplayPort, HDMI, USB-B to USB-A, power cable) and the quick start guide.
Operational Advantages
The monitor offers high image quality with sharp details, smooth motion, and precise color reproduction. The ergonomic adjustability allows individual adaptation to the workspace and posture, increasing all-day comfort. The integrated HP Eye Ease technology reduces eye strain from blue light. The Micro-Edge bezel and 3-sided frameless design enable seamless arrangement in multi-monitor setups. The integrated USB hub function reduces the number of required cables and simplifies connection of peripheral devices. The VESA mounting interface enables flexible installation. The energy efficiency class is C (SDR and HDR), with power consumption in standard operation at 22 W. The housing is made of at least 90 % recycled plastic, and the packaging is made from 100 % paper-based, sustainable sources. Operating temperature ranges from 5 °C to 35 °C. The AC input voltage is 100–240 V at a frequency of 50/60 Hz. The internal power supply provides power. Power consumption values in standby mode are 0.5 W, in off mode 0.3 W, and maximum power consumption is 58 W. The product color is black (Jet Black) with a silver stand. The On-Screen Display (OSD) allows direct control of settings on the device. The connectivity options and ergonomic design make the monitor a flexible solution for professional use.
Scope of Delivery
The scope of delivery includes the HP Series 524pf Series 5 Pro FHD monitor, a DisplayPort cable, an HDMI cable, a USB-B to USB-A cable, a power cable, a warranty card, and a quick start guide poster.
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Colour name | Jet black |
| Feet colour | Silver, Black |
| Detachable stand | |
| Display | |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Backlight type | Edge LED |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 350 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 100 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.28 x 0.28 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 120 kHz |
| Vertical scan range | 50 - 100 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| Colour gamut | 100% |
| sRGB coverage (typical) | 100% |
| Display bezel technology | Micro-Edge |
| LED backlight | |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Adjustable height (max) | 15 cm |
| Pivot angle | 0 - 90° |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23° |
| VESA mounting | |
| Cable lock slot | |
| Height adjustment | |
| Pivot | |
| Swivelling | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Built-in speaker(s) | |
| Built-in camera | |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 20 - 80% |
| Non-operating relative humidity (non-condensing) | 20 - 80% |
| Other features | |
| Country of origin | China, Vietnam |
| UNSPSC-code | 43211902 |
| Packaging content | Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord |
| Weight | 4.9 kg |
| Height | 313.7 mm |
| Width | 538.4 mm |
| Depth | 38.5 mm |
| Compliance certificates | CECP, GS mark, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Manufacturer warranty | HP three-year limited warranty |
| Supplied AC adapter type | (ABB) 198122902330; (ABU) 198122902422, 198122902330, 198122902422 |
| Certification | BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF |
| Low halogen | |
| Packaging content | |
| Cables included | HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Quick start guide | |
| Packaging data | |
| Package width | 621 mm |
| Package depth | 140 mm |
| Package height | 393 mm |
| Package weight | 7.2 kg |
| Package type | Box |
| Warranty card | |
| Performance | |
| HP segment | Business |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| VESA Adaptive Sync support | |
| Flicker-free technology | |
| Low Blue Light technology | |
| Ports & interfaces | |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-A, USB Type-B |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Built-in USB hub | |
| HDMI | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | C |
| Power consumption (typical) | 22 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 58 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10 |
| Sustainable technologies and materials | At least 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; At least 30% recycled metal including 90% recycled aluminum in the stand; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Low halogen; Outside box and corrugated cushions are made of 100% recycled or certified sources |
| Sustainability compliance | |
| Technical details | |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |

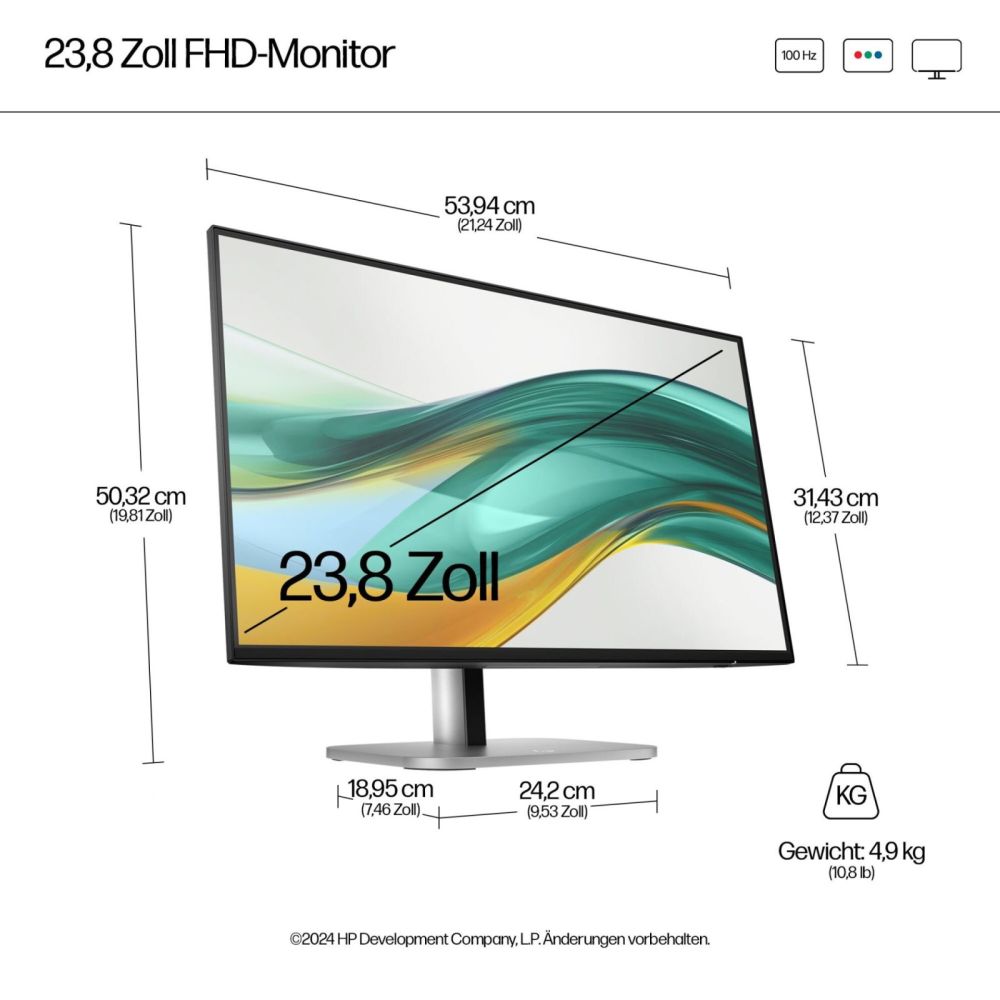

| Weight & dimensions | |
| Width (with stand) | 539.4 mm |
| Depth (with stand) | 189.5 mm |
| Height (with stand) | 503.2 mm |
| Weight (with stand) | 4.9 kg |
| Width (without stand) | 539.4 mm |
| Depth (without stand) | 47.2 mm |
| Height (without stand) | 314.3 mm |
| Weight (without stand) | 3.4 kg |
