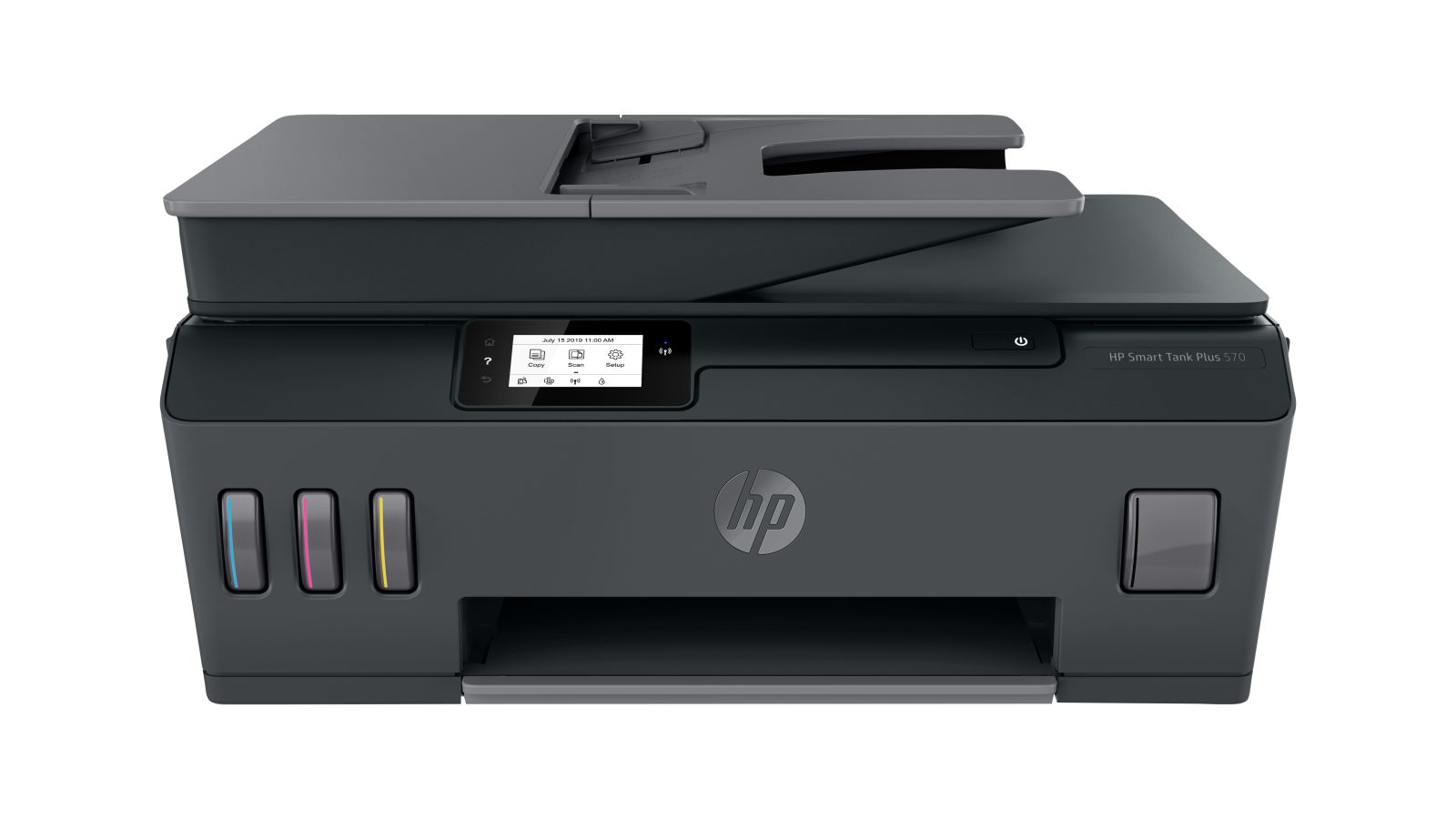

HP Smart Tank Plus 570 Wireless AiO A4 Color 5HX14A#BHC content_copy

This cartridge-free printer with an automatic document feeder delivers impeccable quality and comes with ink for up to 3 years.
Connect faster with dual-band Wi-Fi and print on the go more easily with the HP Smart app.

Highlights

• Network-compatible inkjet multifunction printer
• Print speed up to 11 pages/minute
• Print resolution up to 4,800 x 1,200 dpi
• WLAN, Bluetooth LE, High-Speed USB 2.0
• HP ePrint, Apple AirPrint, Google Cloud Print 2.0, Wireless Direct Printing, Mopria
• 3in1: print, scan, copy

Consumables

• Consumables type: Ink
• Consumables highlights: HP 31; HP 32XL

Product type

• Multifunction printer
• ear category (ElektroG): relevant, Category 6: small devices for IT and telecommunications technology, Small devices for IT and telecommunications technology B2C

Specifications

• Copy function
• Scan function
• Print function

Shipping

• WEEE: 79221384

Printer

• compatible operating systems: Windows, Mac OS

Copier

• ID card copy
• Enlarge/Reduce
• Copier resolution height: 600 dpi
• Color copy speed: 2 pages/min
• Black copy speed: 10 pages/min

Printer

• Print functions: Apple AirPrint , HP ePrint
• Printing technology: Ink
• Color printing
• Print speed color ISO: 5 pages/min
• Print speed monochrome ISO: 11 pages/min
• Print volume/month maximum: 1000 pages
• Print volume/month optimal: 800 pages
• Print resolution height: 4800 dpi
• Print resolution Width: 1200 dpi

Scanner

• optical resolution Height: 1200 dpi
• Document feeder Type: ADF
• Document feeder Format: A4
• Scan To: Scan to image, Scan to PC, Scan to PDF file, Scan to text (OCR)

Memory

• Internal memory: 256 MB

Connections

• USB standard: 2.0
• Data interfaces: USB host

Display

• Display technology: LCD

Power supply

• Network

Data transmission

• Bluetooth
• WLAN
• WLAN standard: IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4
• mobile printing: Apple AirPrint, HP ePrint, Wi-Fi Direct printing > paper supply
• printable media: envelopes, thick paper, thin paper, photo paper, glossy paper, plain paper, recycled paper
• output tray capacity: 30
• paper capacity: 100
• printable paper formats: A4, A6 (postcard), B5
• min. paper weight: 60 g/m²
• max. paper weight: 300 g/m²

Basic features

• Color: Black
• Height: 19.8 cm
• Length/Depth: 37.3 cm
• Width: 44.9 cm
• Weight: 6.19 kg

Scope of delivery

• HP Smart Tank 570 3in1 multifunction printer
• 2x HP 32XL black original ink bottle 135 ml
• HP 31 Cyan original Ink bottle 70 ml
• HP 31 Magenta Original Ink bottle, 70 ml
• HP 31 Yellow Original Ink bottle, 70 ml
• Ink safety flyer -
Repackaging information flyer

• Installation guide
• Reference manual
• Regulatory information flyer
• Power cord

Brand-specific features
HP GTIN (EAN/UPC)	193424413348
HP Auto-On/Auto-Off
HP Security tools
Carbon footprint
Total carbon footprint (kg of CO2e)	45
Carbon emissions, manufacturing (kg of CO2e)	36
Carbon emissions, logistics (kg of CO2e)	2
Carbon emissions, end-of-life (kg of CO2e)	3
Total carbon emissions, w/o use phase (kg of CO2e)	4
Certificates
Certification	CISPR 32:2015/EN 55032:2015 Class B; CISPR24:2010/EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013; ICES-003, 2016 Issue 6; EN 301 489-1 V2.1.1:2017; EAC (Russia)
Copying
Copying	Colour copying
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (colour, normal quality, A4)	14 cpm
Maximum number of copies	99 copies
Copier resize	25 - 400%
Duplex copying
ID-card copy function
Auto fit function
Design
Display diagonal	5.59 cm (2.2")
Control type	Buttons, Touch
Built-in display
Colour display
Features
Recommended duty cycle	400 - 800 pages per month
Maximum duty cycle	1000 pages per month
Number of print cartridges	4
Printing colours	Black, Cyan, Magenta, Yellow
Page description languages	PCL 3 GUI
Country of origin	China
Replacement cartridges	HP 32 90-ml Black Original Ink Bottle 1VV25AE; HP 31 70-ml Cyan Original Ink Bottle 1VU26AE; HP 31 70-ml Magenta Original Ink Bottle 1VU27AE; HP 31 70-ml Yellow Original Ink Bottle 1VU28AE; HP 32XL 135-ml Black Original Ink Bottle 1VV24AE. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies
HP segment	Home
Digital sender
Ink tank system
All-In-One-multitasking
Input & output capacity
Total number of input trays	1
Total input capacity	100 sheets
Total output capacity	30 sheets
Auto document feeder (ADF) input capacity	35 sheets
Maximum number of input trays	1
Maximum input capacity	100 sheets
Maximum output capacity	30 sheets
Auto document feeder (ADF)
Logistics data
Harmonized System (HS) code	84433100
Pallet gross weight	425 kg
Layers per pallet	5 pc(s)
Products per pallet	50 pc(s)
Network
Wi-Fi standards	Wi-Fi 4 (802.11n), 802.11g, 802.11b
Mobile printing technologies	Mopria Print Service, HP ePrint, Apple AirPrint, Google Cloud Print
Wi-Fi Direct
Operational conditions
Recommended humidity operating range	20 - 80%
Recommended operating temperature range (T-T)	15 - 30 °C
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Non-operating relative humidity (non-condensing)	5 - 90%
Other features
Number of users	3 user(s)
Custom media sizes	76.2 x 127 mm to 215.9 x 355.6 mm
Pallet dimensions (W x D x H)	1200 x 1000 x 2400 mm
Power supply type	Internal
Recommended system requirements	Windows 10; 7; 1 GHz 32-bit (x86) or 64-bit (x64) processor; 2 GB available hard disk space; Internet connection; USB port; Internet Explorer 8. OS X v10.11 El Capitan and above; Internet Access.
Compatible operating systems	Windows 11; Windows 10; Windows 7; macOS 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 13 Ventura; macOS 14 Sonoma
Pallet dimensions (W x D x H) (imperial)	1199.9 x 1000 x 2397.5 mm (47.2 x 39.4 x 94.4")
Pallet weight (imperial)	424.6 kg (936 lbs)
Typical electricity consumption (TEC) number	0.14 kWh/Week
UNSPSC-code	43212110
Number of print heads	2
Manufacturer warranty	One year of 24/7 world-class technical support services through http://www.hp.com/support; One-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase; User replaceable parts have separate warranty periods
Electromagnetic compatibility	CISPR 32:2015/EN 55032:2015 Class B; CISPR24:2010/EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013; ICES-003, 2016 Issue 6; EN 301 489-1 V2.1.1:2017; EAC (Russia)
PictBridge
Packaging content
Cables included	AC
Bundled software	None
Warranty card
Packaging data
Package width	495 mm
Package depth	238 mm
Package height	480 mm
Package weight	8.5 kg
Paper handling
Maximum ISO A-series paper size	A4
Maximum print size	216 x 355 mm
Paper tray media types	Plain paper, Glossy paper, Photo paper, Recycled paper, Matte paper, Thick paper, Lightweight paper
ISO A-series sizes (A0...A9)	A4, A6
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Legal
Envelopes sizes	B5, DL
Borderless printing media sizes	A4, Letter
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media weight	60 - 300 g/m²
Envelope feeder
Performance
Maximum internal memory	256 MB
Internal memory	256 MB
Processor frequency	800 MHz
Sound power level (printing)	6.4 dB
Built-in processor
Ports & interfaces
Direct printing
USB port
Power
Power consumption (ready)	3.72 W
Power consumption (sleep)	0.83 W
Power consumption (off)	0.11 W
Energy Star Typical Electricity Consumption (TEC)	0.14 kWh/week
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Printing
Duplex printing mode	Manual
Print resolution colour	4800 x 1200 DPI
Print resolution black	1200 x 1200 DPI
Print technology	Thermal inkjet
Printing	Colour printing
Maximum resolution	4800 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	11 ppm
Print speed (colour, normal quality, A4/US Letter)	5 ppm
Print speed (black, draft quality, A4/US Letter)	22 ppm
Print speed (colour, draft quality, A4/US Letter)	16 ppm
Print speed (ISO/IEC 24734) black	11 ppm
Print speed (ISO/IEC 24734) colour	5 ppm
Time to first page (black, normal)	14 s
Time to first page (colour, normal)	21 s
Duplex printing
Borderless printing
Scanning
Scanning	Colour scanning
Optical scanning resolution	1200 x 1200 DPI
Maximum scan resolution	1200 x 1200 DPI
Maximum scan area	216 x 297 mm
Scanner type	Flatbed scanner
Scan technology	CIS
Scan to	Software
Scan speed (colour)	3 ppm
Scan speed (black)	5 ppm
Image formats supported	BMP, JPG, PNG, TIFF
Document formats supported	PDF, RTF, TXT
Input colour depth	24 bit
Greyscale levels	256
Scan drivers	TWAIN
Sustainability
Sustainable technologies and materials
System requirements
Windows operating systems supported	Windows 7, Windows 10, Windows 11
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS
Technical details
Box contents	HP Smart Tank Plus 570; 2 x HP 32XL 135-ml Black Original Ink Bottle; HP 31 Cyan Original Ink Bottle; HP 31 Magenta Original Ink Bottle; HP 31 Yellow Original Ink Bottle; Ink caution flyer; Repacking flyer; Setup guide; Reference guide; Regulatory flyer; PT flyer; RoH-EAC Regulatory flyer; Extended warranty flyer; Power cord; For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies
Master (outer) cases per pallet layer	10 pc(s)
General Product Safety Regulation (GPSR) URL	https://support.hp.com/gb-en/product/setup-user-guides/hp-smart-tank-plus-570-wireless-all-in-one-series/model/26342892?sku=5HX14A
Other EU Hazard statement(s)	EUH208: Contains sensitizing substance. May produce an allergic reaction
Weight & dimensions
Width	449 mm
Depth	373 mm
Height	198 mm
Weight	6.19 kg

---
