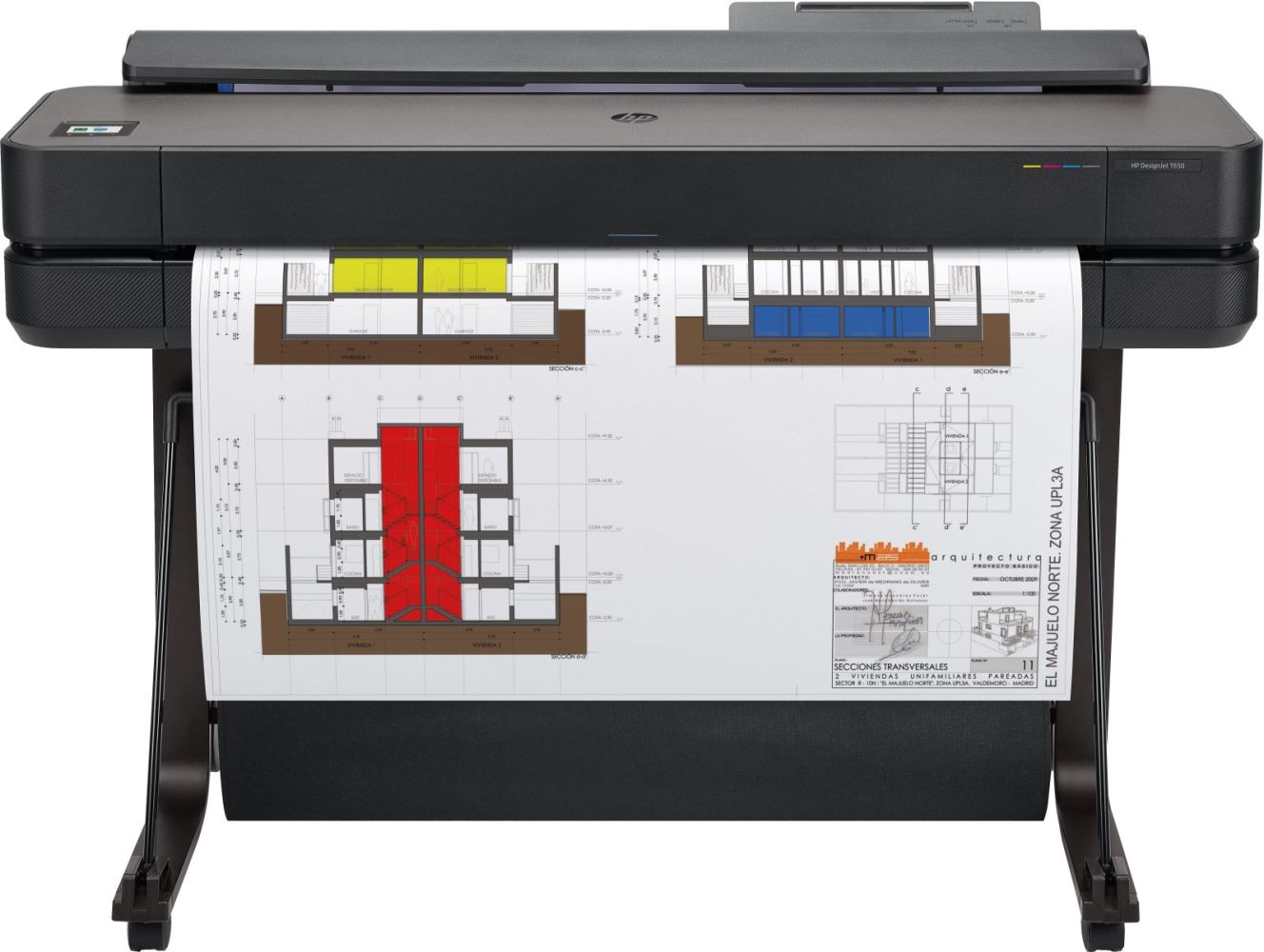

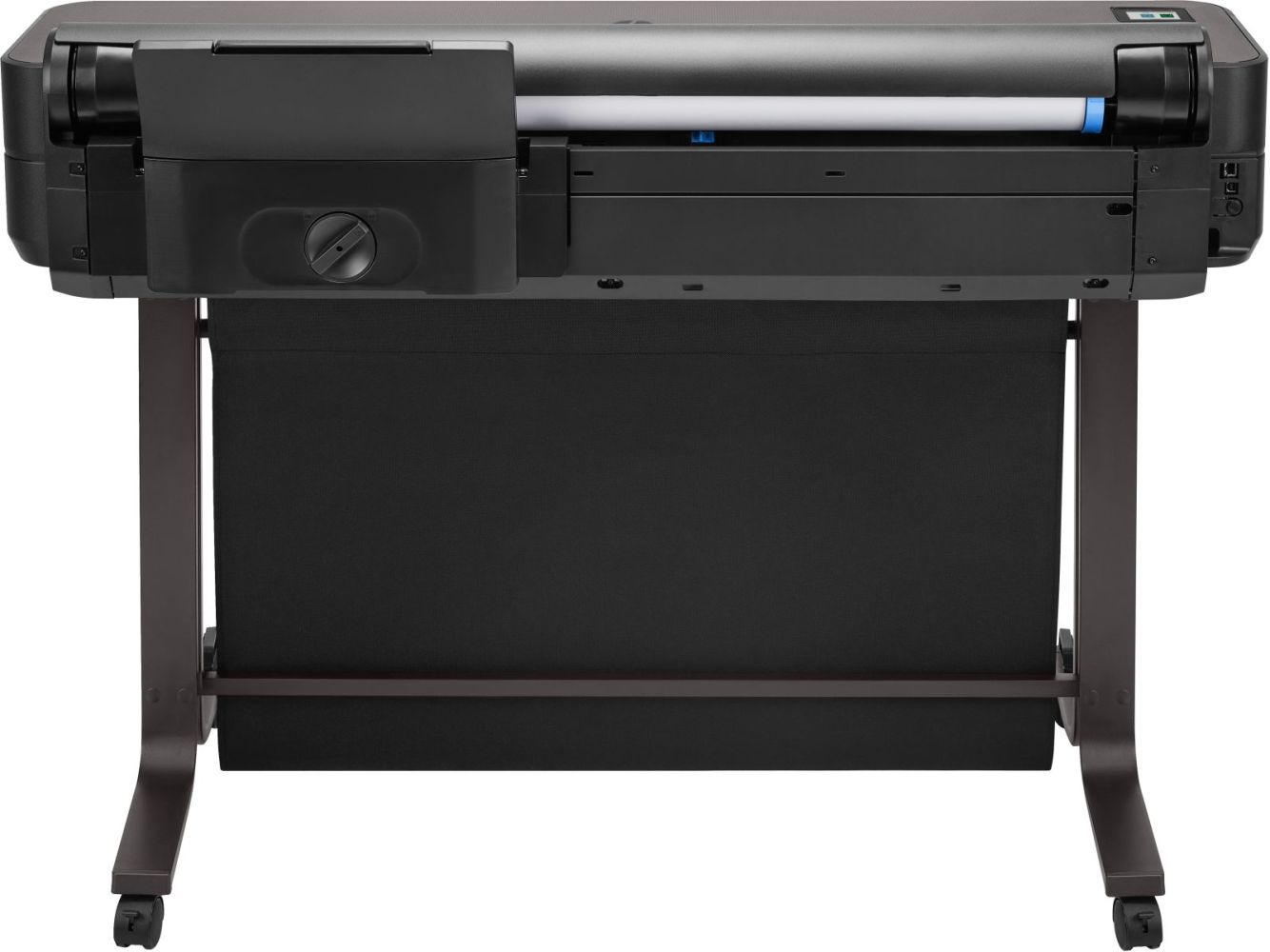

HP 5HB10D#B19 Designjet T650 printer 91,4 cm ( 36 inch ) 2025 Edition (freight shipping) content_copy

The HP DesignJet T650 36-inch printer 2025 Edition is a large-format inkjet printer for professional use in office and engineering environments. It is designed for creating technical drawings, architectural plans, graphics, and other large-format documents. The printer features a print resolution of 2400 x 1200 DPI and uses the Thermal Inkjet technology, in which ink is heated thermally and atomized into fine droplets. The color palette includes Black, Cyan, Magenta, and Yellow, enabling vibrant and precise prints. The maximum print size is A0 (841 x 1189 mm), and the device can also process roll media with widths from 279 to 914 mm. The paper feed supports various formats, including A0, A1, A2, A3, and A4, as well as different media types such as coated paper, glossy paper, photo paper, and bond paper. The maximum media thickness is 0.3 mm, and the device is designed for paper weights from 60 to 280 g/m². The non-printable margins are 5 mm on each edge when using single-sheet feed.

Applications

The printer is designed for users who require large-format documents in high quality, such as architects, engineers, graphic designers, or print shops. The automatic single-sheet feed allows printing of projects in various formats from A4 to A0 without manually changing the paper feed. The integrated roll cover and spindle for roll media ensure proper handling of the media. The maximum roll length is 45.7 m, and the maximum roll weight (rear roll) is 6.2 kg. The maximum roll diameter is 10 cm.

Functions and Equipment in Detail

The printer supports various page description languages, including HP-GL/2, JPEG, HP-RTL, CALS G4, and URF, ensuring compatibility with common CAD and graphic software solutions. The print speed is up to 25 seconds per page in A1 format. Print functions include HP ePrint, enabling mobile printing over the internet. The integrated HP dynamic security ensures that only print cartridges with a new or reused HP chip can be used. Firmware updates ensure the effectiveness of this measure. The print cartridges are of type HP 712.

Technology Explained Simply

The printing technology is based on the Thermal Inkjet method, in which ink is heated by electrical heating elements in the print head and atomized into small droplets. These droplets are precisely applied to the paper, achieving high resolution and color accuracy. The print resolution of 2400 x 1200 DPI ensures sharp lines and detailed color gradients. The print heads are included in the delivery and are installed during setup.

Compatibility and Accessories

The printer is equipped with various interfaces: WLAN, Gigabit Ethernet (10/100/1000 Mbit/s), and USB 2.0. The WLAN function supports standards such as IEEE 802.11a/b/g/n (Wi-Fi 1 to 4) and enables mobile printing via the HP App, HP Click App, Apple AirPrint, and Wi-Fi Direct. The HP Click software is available for Windows and macOS and supports file formats such as PDF, JPEG, TIFF, DWF, and HP-GL/2. The print preview allows a realistic representation of the output before printing. The software is only compatible with original HP ink consumables.

Installation and Mounting

The printer is delivered with an integrated stand, enabling stable positioning in the office. The delivery includes the printer, stand, automatic single-sheet feed, roll cover, print head, starter print cartridges, spindle, quick start guide, installation poster, and power cable. Installation is performed using the included software, with print head and cartridge installation carried out during setup. Power supply is via mains voltage of 100 to 240 V at 50/60 Hz. Power consumption during operation is 35 W, in sleep mode 2.1 W, and in standby mode 0.2 W.

Operational Advantages

The printer is designed for offices aiming to save space. Its compact design with integrated stand enables efficient use of workspace. The automatic on/off scheduling can be programmed to save up to 65 % energy. Efficient maintenance routines for the ink system reduce ink consumption during routine cleanings. The printers are equipped with an internal memory of 1024 MB, supporting the processing of large files. The operating temperature ranges from 5 to 40 °C, and the relative humidity during operation is between 20 and 80 %. Storage is possible at temperatures from -25 to 55 °C and humidity from 0 to 95 %. The maximum operating altitude is 3000 m. Certification is according to Class B requirements, including USA (FCC), Canada (ICES), EU (EMC/RED), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), and Korea (KCC). Additionally, the device is certified according to ENERGY STAR and Forest Stewardship Council (FSC). The packaging consists of recycled fiber material and is free of polystyrene. The device is manufactured in China and is intended for use in the business segment.

Brand-specific features
HP Dynamic security
Copying
Copying
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Other features
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
UNSPSC-code	43212104
Packaging data
Package width	1470 mm
Package depth	575 mm
Package height	590 mm
Package weight	56 kg
Bundled software	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Paper handling
Custom media sizes	Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm
Maximum print size	A0 (841 x 1189 mm)
Paper tray media types	Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Media thickness	0.3 mm
Maximum roll diameter	10 cm
Roll weight (rear roll)	6.2 kg
Print margin cut-sheet	5 x 5 x 5 x 5 mm
Cut sheets
Performance
Product colour	Black
Internal memory	1024 MB
Introduction year	2024
Country of origin	China
Certification	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
HP segment	Business
Built-in display
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi
Ethernet LAN
USB port
Wi-Fi Direct
Power
Power consumption (standby)	0.2 W
Power consumption (off)	0.2 W
Power consumption (sleep)	2.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	4
Page description languages	HP-GL/2, JPEG, HP-RTL, CALS G4, URF
Printing colours	Black, Cyan, Magenta, Yellow
Colour
Scanning
Scanning
Sustainability
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC)
Sustainability compliance
Technical details
Box contents	HP DesignJet T650 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Compliance certificates	RoHS
Weight & dimensions
Width	1317 mm
Depth	605 mm
Height	932 mm
Weight	35.4 kg

---
