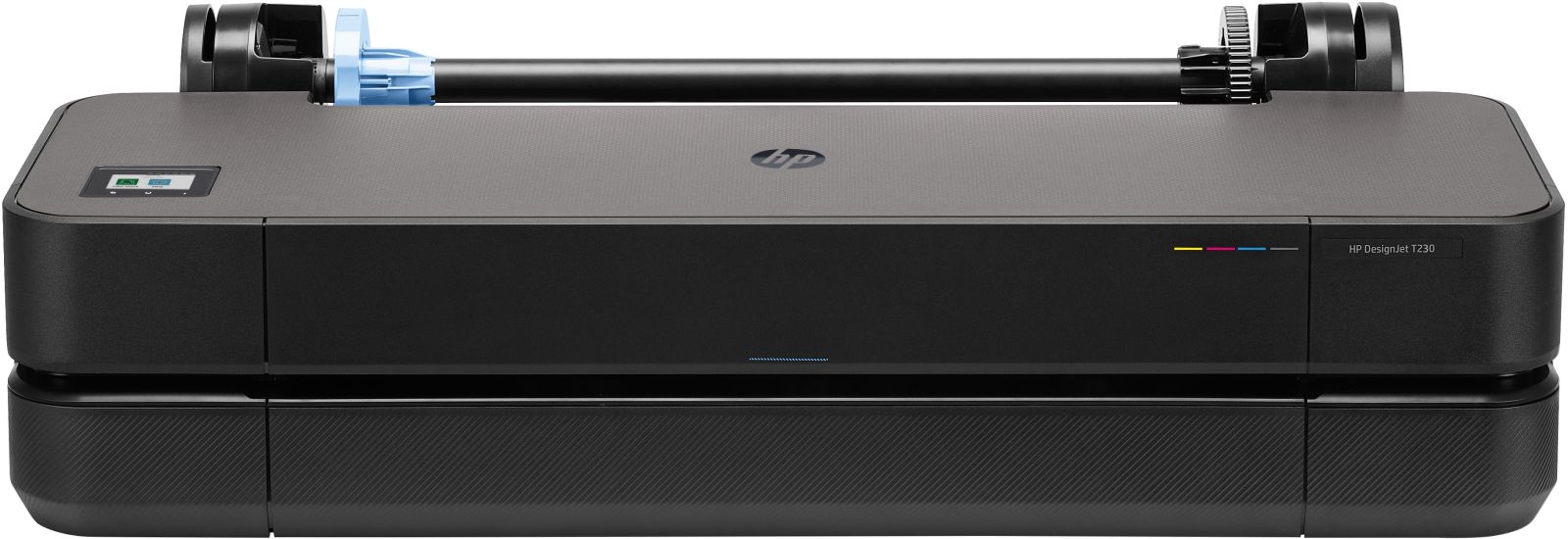

HP 5HB07D#B19 Designjet T230 printer 61 cm ( 24 inch ) 2025 Edition (freight shipping) content_copy

The HP DesignJet T230 24-inch printer is a large-format inkjet printer of the 2025 Edition, specifically designed for use in offices and work environments requiring high-quality, coloured plots in formats up to A1. The printer features Thermal Inkjet printing technology, enabling a maximum print resolution of 2400 x 1200 DPI. This resolution ensures sharp lines and detailed representations, particularly for technical drawings, architectural plans, or graphics. The print speed is 68 pages per hour at normal quality and A1 format, equating to approximately 35 seconds per page. The print colours include Black, Cyan, Magenta, and Yellow, with the print head integrating all four colours. The print function supports page description languages JPEG and URF, ensuring compatibility with various file formats and printing systems.

Applications

The printer is suitable for use in technical, architectural, and graphic work environments where large, coloured documents such as construction plans, designs, or presentation graphics are required. The maximum print size is 610 x 1897 mm, and the device also supports cut sheets. Paper handling includes a wide range of media types, such as coated paper, plain paper, semi-matte paper, glossy paper, bond paper, photo paper, matte paper, heavy paper, and satin paper. The media thickness can be up to 0.3 mm, and the device supports rolls with a maximum diameter of 10 cm and a weight of up to 4.1 kg (rear roll). Available ISO A-formats range from A1 to A4, enabling flexible use for different projects.

Functions and Equipment in Detail

The printer offers integrated network capability with WLAN, Gigabit Ethernet (10/100/1000 Mbit/s), and a Hi-Speed USB 2.0 port. Direct printing allows connection to computers via USB, while Wi-Fi Direct and Apple AirPrint provide mobile printing options. HP Click printing solutions support easy operation and enable realistic print preview. Mobile management of the device is possible via the HP App, available on Windows, macOS, Android, and iOS. The print functions also include HP ePrint, facilitating remote control and monitoring of the printer.

Technology Explained Simply

The Thermal Inkjet technology generates ink droplets by locally heating the ink in the print head, resulting in precise and uniform ink delivery. The print resolution of 2400 x 1200 DPI ensures high detail accuracy, especially for fine lines and shading. The 512 MB memory capacity allows temporary storage of print jobs and supports processing of complex files. Energy efficiency is ensured by a power consumption of 35 W in standard operation and 0.2 W in standby mode and when powered off. The power supply operates with an input voltage of 100–240 V and a frequency of 50/60 Hz, enabling worldwide use.

Compatibility and Accessories

The printer is designed for use with HP 712 ink cartridges, which feature a new or reused HP chip. The dynamic security function blocks ink cartridges with chips not from HP. Firmware updates ensure the effectiveness of this measure. The use of reused, remanufactured, or refilled cartridges is possible with a reused HP chip. The print function supports Windows and Mac operating systems. The HP Click App and the HP App are required for mobile control and can be downloaded from the respective app stores.

Installation and Mounting

The printer is delivered with a print head, spindle, starter ink cartridges, power cable, quick start guide, installation poster, and the HP Click App for Windows and macOS as well as the HP Click Driver for Windows 11. Installation is performed via the included software, with connection possible via USB, LAN, or WLAN. Operation is via the HP Apps or integrated network control.

Operational Advantages

The printer features a compact design with dimensions of 1013 mm (width) x 440 mm (depth) x 285 mm (height) and a weight of 21.5 kg, making it suitable for small offices or workstations. The sustainable design includes packaging made from fibre materials, reducing plastic consumption by more than 70%. The device is manufactured with at least 40% recycled plastic and contains recycled metal. It is ENERGY STAR certified and meets the requirements of Class B for electromagnetic compatibility in various countries, including USA, Canada, EU, Australia, New Zealand, China, Japan, and Korea. Operating conditions include a temperature range of 5–40 °C and relative humidity of 20–80%. The maximum operating altitude is 3000 m. Storage is possible at -25–55 °C.

Certification and Safety

The printer is HP Wolf Essential Security certified, providing protection against cyber threats. Certification includes Class B requirements for electromagnetic compatibility, as well as EPEAT Gold registration and EPEAT Climate+ recognition. Manufacturing takes place in China.

Product Colour and Design

The printer has a grey product colour and is designed for office use. The design is flat and compact to save space. It features no built-in display; control is via the HP Apps or network and USB connections.

Sustainability

The device is designed sustainably, with packaging made from fibre materials that reduce plastic consumption. The use of recycled plastic and metal, along with certification under EPEAT Gold and EPEAT Climate+, highlights the ecological commitment. Energy savings through automatic on/off times can reach up to 65%, based on internal HP tests.

Brand-specific features
HP Dynamic security
Copying
Copying
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Operating altitude	0 - 3000 m
Other features
Electromagnetic compatibility	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
UNSPSC-code	43212104
Packaging data
Package width	1155 mm
Package depth	575 mm
Package height	405 mm
Package weight	27 kg
Bundled software	HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Paper handling
Custom media sizes	210 x 279 to 610 x 1897 mm
Maximum print size	610 x 1897 mm
Paper tray media types	Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A1, A2, A3, A4
Media thickness	0.3 mm
Maximum roll diameter	10 cm
Roll weight (rear roll)	4.1 kg
Cut sheets
Performance
Product colour	Grey
Internal memory	512 MB
Introduction year	2024
Country of origin	China
Certification	Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
HP segment	Business
Built-in display
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Mobile printing technologies	Apple AirPrint
Wi-Fi
Ethernet LAN
USB port
Direct printing
Wi-Fi Direct
Power
Power consumption (standby)	0.2 W
Power consumption (typical)	35 W
Power consumption (off)	0.2 W
Power consumption (sleep)	2.1 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	4
Page description languages	JPEG, URF
Printing colours	Black, Cyan, Magenta, Yellow
Print head	1 (cyan , magenta, yellow, black)
Print speed (normal quality, A1)	68 pph
Colour
Scanning
Scanning
Sustainability
Sustainability certificates	ENERGY STAR
Sustainability compliance
System requirements
Windows operating systems supported
Mac operating systems supported
Technical details
Box contents	HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Weight & dimensions
Width	1013 mm
Depth	440 mm
Height	285 mm
Weight	21.5 kg

---
