HP 5H0W5EA#ABD Elite t655 Thin Client AMD Embedded Ryzen R2314 8GB 32GB SSD ThinPro 3J Guarantee (DE) content_copy

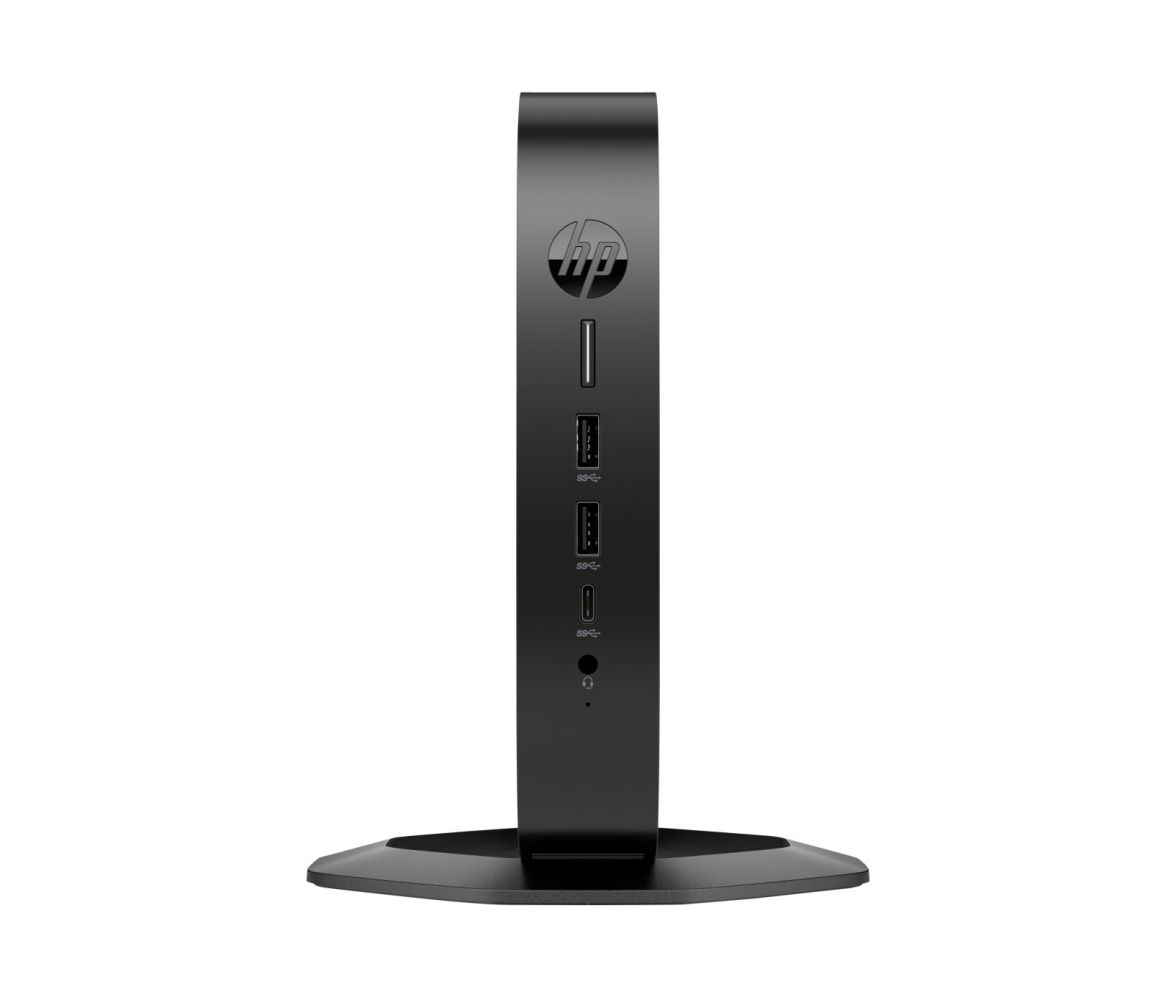

The HP Elite t655 Thin Client is a compact, high-performance end device type designed for use in enterprise environments. It features an AMD Ryzen Embedded R2314 processor from the R2000 series with a base frequency of 2.1 GHz and a boost frequency of 3.5 GHz. The processor includes four cores and four threads, along with a 2-MB cache, enabling efficient application processing. The device is equipped with 8 GB DDR4-SDRAM memory, installed in two SO-DIMM modules of 4 GB each, with a maximum supported memory capacity of 32 GB. As a storage medium, a 32-GB eMMC drive is used, ensuring fast access times and reliable data retention.

Thin Client solutions such as the HP Elite t655 are designed to simplify the central management of workstations. They operate via a central server system, eliminating the need for local data storage and software installation on the device itself. The device is equipped with the Linux-based operating system ThinPro, providing a stable, secure, and intuitive user environment. ThinPro supports remote management, cloud computing, and collaboration tools, enhancing IT management efficiency.

Applications include office environments, hybrid working, and scenarios requiring central management and high security standards. The thin client is suitable for networks with high demands for productivity and security. It supports up to three UHD/4K displays, enabling use in multi-monitor environments. The integrated AMD Radeon Graphics graphics solution enables high-resolution content display.

Features and specifications in detail include comprehensive network support. The device features Wi-Fi 6 (802.11ax) with a 2x2 antenna type and a WLAN controller from Realtek (RTL8852BE), ensuring stable and fast wireless connectivity. Additionally, an Ethernet LAN port (RJ-45) is available with data rates of 10, 100, and 1000 Mbit/s. Bluetooth support is provided in version 5.3, enabling connections with compatible peripheral devices. The interfaces include a USB Type-C port, a USB 3.2 Gen 1 (3.1 Gen 1) Type-A port, and a combined headphone/microphone jack. Furthermore, three DisplayPort connectors are integrated, allowing connection of multiple monitors.

Technology explained simply shows that the thin client is based on the AMD Ryzen Embedded R2000 series, developed for energy efficiency and performance in embedded systems. The integrated AMD graphics solution enables graphic content display without requiring an additional graphics card. The power supply is 45 W, sufficient for a compact thin client in office and work environments.

Compatibility and accessories include support for various peripheral devices. The device can be connected to docking stations and monitors, with VESA® mounting options enabling flexible placement in up to six different orientations. Support for USB-C® docking displays expands connection options. The HP Device Manager software is included by default and enables central and remote device management. The Firmware-TPM (Trusted Platform Module) provides hardware-based encryption to protect data, emails, and login credentials. The AMD Memory Guard technology protects against cold-boot attacks by encrypting data between memory and processor.

Mounting and installation are performed via the integrated VESA® mounting, allowing flexible placement on walls, monitors, or stands. Installation is done via the pre-configured ThinPro operating system, with device provisioning managed through the HP Device Manager software. Devices can be connected over the network or locally via integrated ports.

Operational benefits include central management, high security, and low maintenance. The IT department can manage, update, and provision thousands of devices through a single console. Using thin clients reduces vulnerability to viruses and malware, as local systems are not used for software installation. The sustainability certifications ENERGY STAR, EPEAT, and TCO, along with the use of halogen-free materials, highlight environmentally conscious manufacturing. The device is designed for indoor use, with a black product color and dimensions of 35 mm (width) × 200 mm (depth) × 200 mm (height). The weight is 1.12 kg. The delivery scope includes a wired mouse and a wired keyboard.

Security is a central feature of the device. In addition to TPM technology and AMD Memory Guard, the device also offers a security architecture compliant with NIST SP800-193. The integrated Wake on Specific Key (WOSK) function allows the device to be awakened from standby mode by pressing any key. Support for larger Unified Communications platforms enables the use of text, voice, and video for collaboration. An integrated cable lock slot provides physical security for the device in public areas.

The warranty includes a 1-year limited warranty covering parts and labor, with no on-site repair service provided. Exact terms vary by country. The device is manufactured in China and meets sustainability requirements through ENERGY STAR, EPEAT, and TCO certifications. The total carbon dioxide footprint is 113.067 kg CO2e, with manufacturing contributing 63.633 kg CO2e, logistics 0.945 kg CO2e, and end-of-life 0.642 kg CO2e.

The HP Elite t655 Thin Client is thus a powerful, secure, and low-maintenance solution for enterprises seeking central management and high productivity in their work environments. The combination of modern hardware, comprehensive security, and easy management makes it a suitable choice for various enterprise applications.

Audio
Built-in speaker(s)
Brand-specific features
HP GTIN (EAN/UPC)	197498572710
Carbon footprint
Total carbon footprint (kg of CO2e)	90.832
Carbon emissions, manufacturing (kg of CO2e)	63.633
Carbon emissions, logistics (kg of CO2e)	0.945
Carbon emissions, end-of-life (kg of CO2e)	0.642
Total carbon emissions, w/o use phase (kg of CO2e)	25.612
Certificates
Country of origin	China
Design
Product colour	Black
Display
Display included
Graphics
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics
On-board graphics card
Logistics data
Manufacturer warranty	1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	2x SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Maximum internal memory	32 GB
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth version	5.3
WLAN controller model	Realtek RTL8852BE
WLAN controller manufacturer	Realtek
Antenna type	2x2
Wi-Fi
Ethernet LAN
Bluetooth
Other features
Keyboard type	USB
UNSPSC-code	43211506
Support service included	HP 3 year Offsite Thin Client Desktop Bundled Hardware Support. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-9399EEE and https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Packaging content
Mouse connectivity	Wired
Keyboard connectivity	Wired
Mouse included
Keyboard included
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Type-C ports quantity	1
DisplayPorts quantity	3
Combo headphone/mic port
Power
Power supply	45 W
Processor
Processor frequency	2.1 GHz
Processor manufacturer	AMD
Processor family	AMD Ryzen Embedded
Processor generation	AMD Ryzen Embedded R2000 Series
Processor model	R2314
Processor cores	4
Processor threads	4
Processor boost frequency	3.5 GHz
Processor cache	2 MB
Software
Operating system installed	ThinPro
Storage
Total storage capacity	32 GB
Storage media	eMMC
Number of storage drives installed	1
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT, TCO
Sustainable technologies and materials	Low Halogen
Sustainability compliance
Weight & dimensions
Width	35 mm
Depth	200 mm
Height	200 mm
Weight	1.12 kg

---
