HP 3FH67AA#AC3 Engage One 10t customer display 25,7 cm ( 10,1 inch ) touch 1280x800 white content_copy

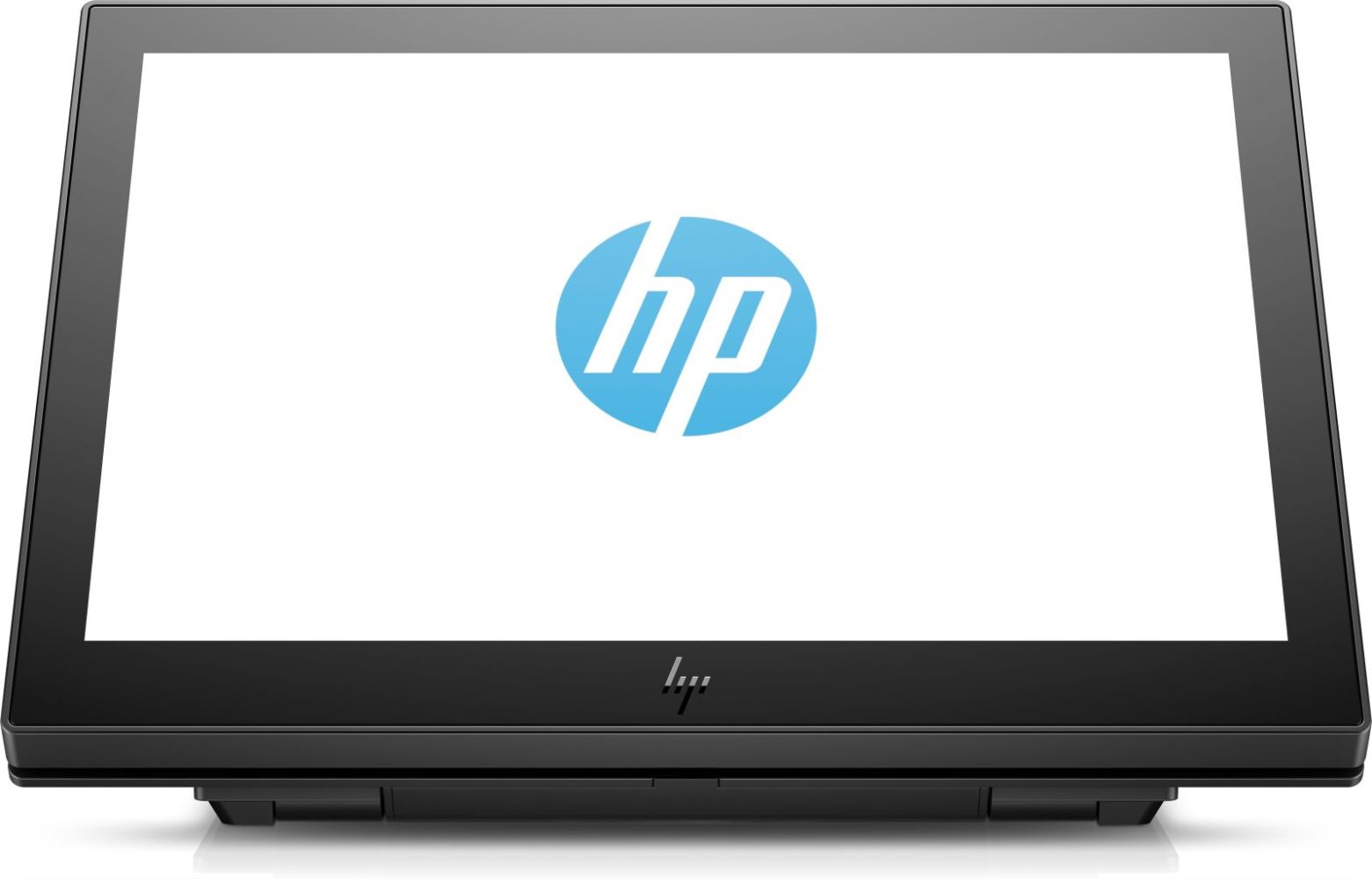

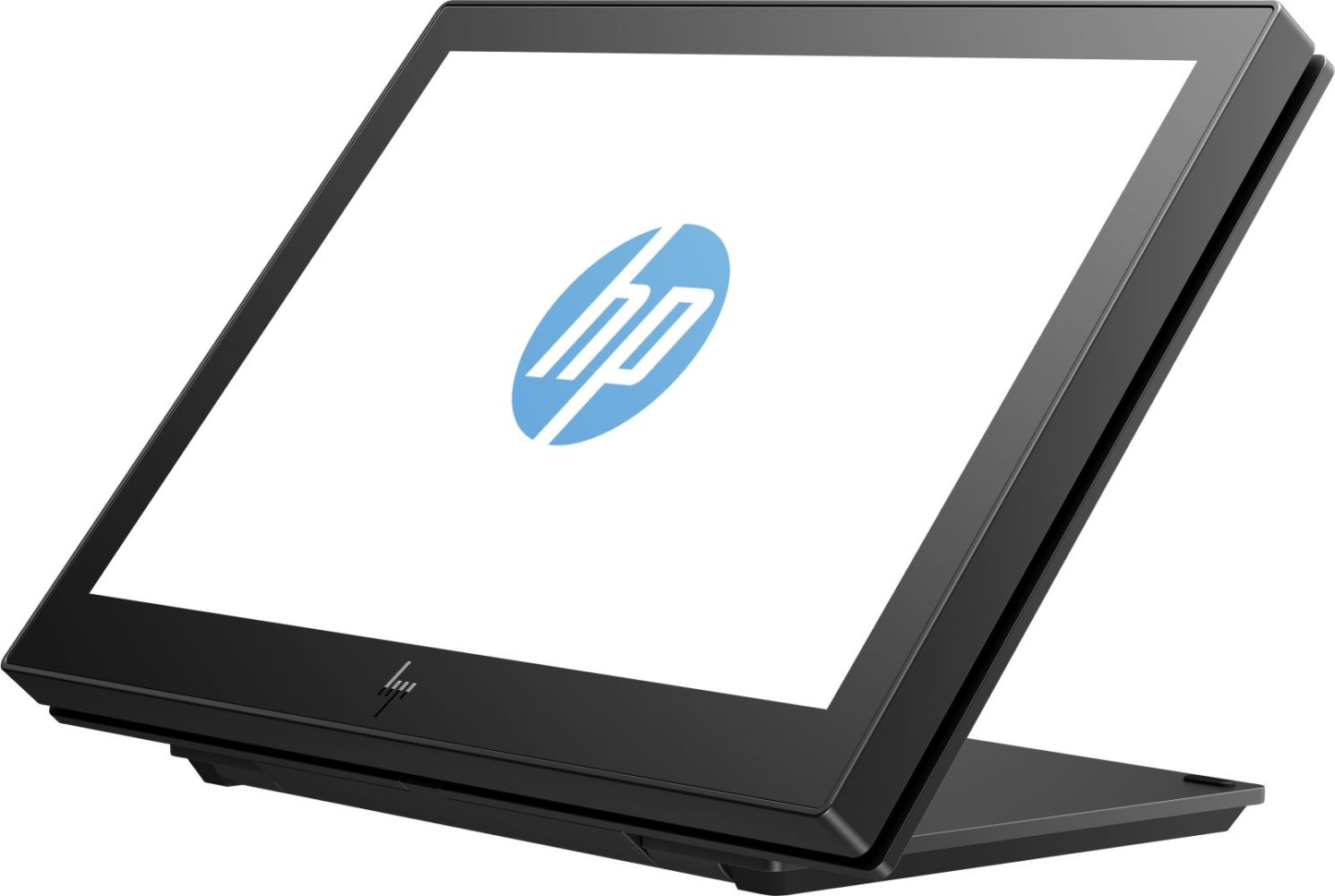

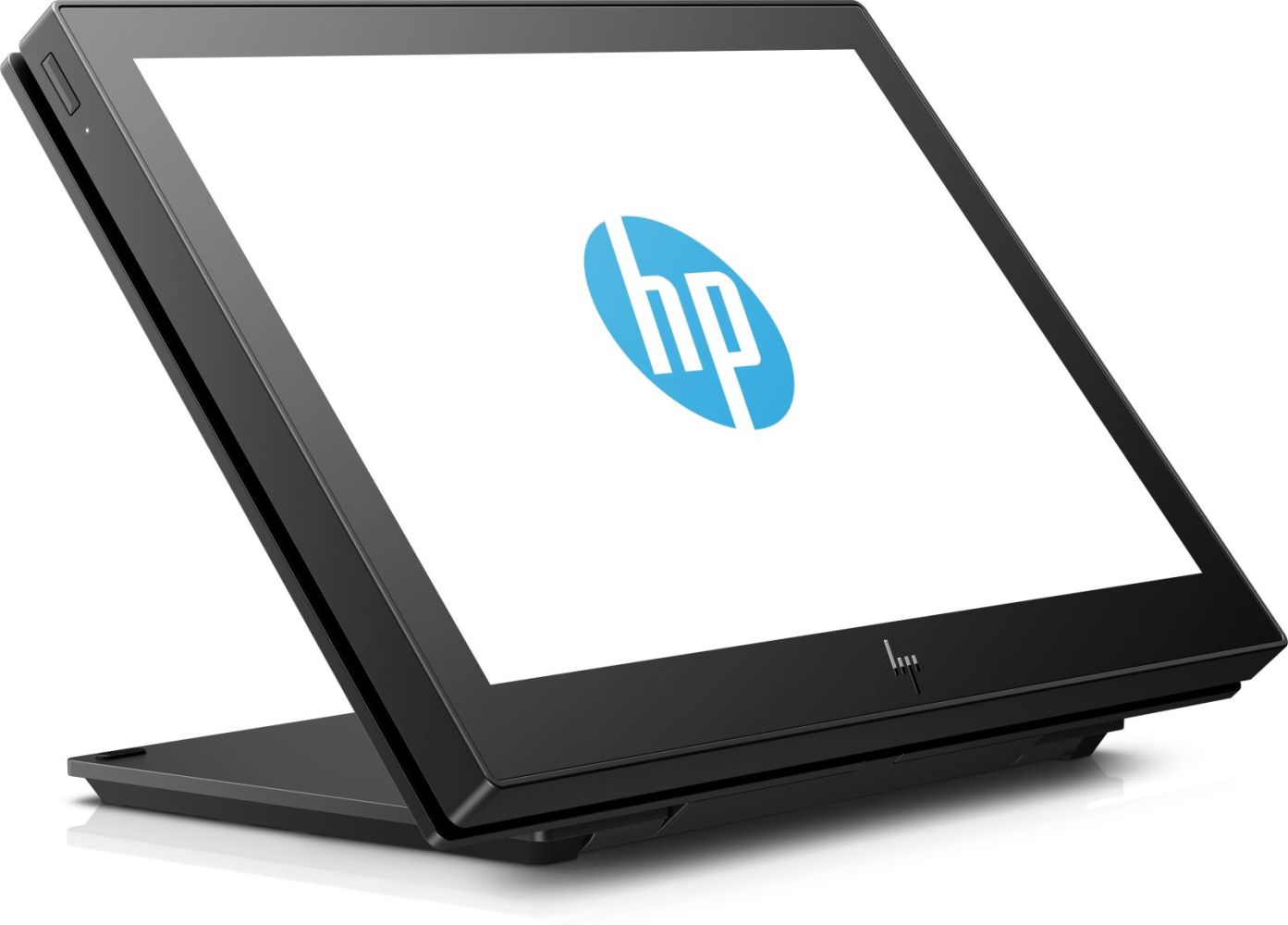

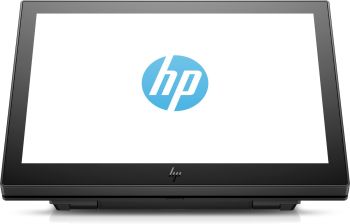

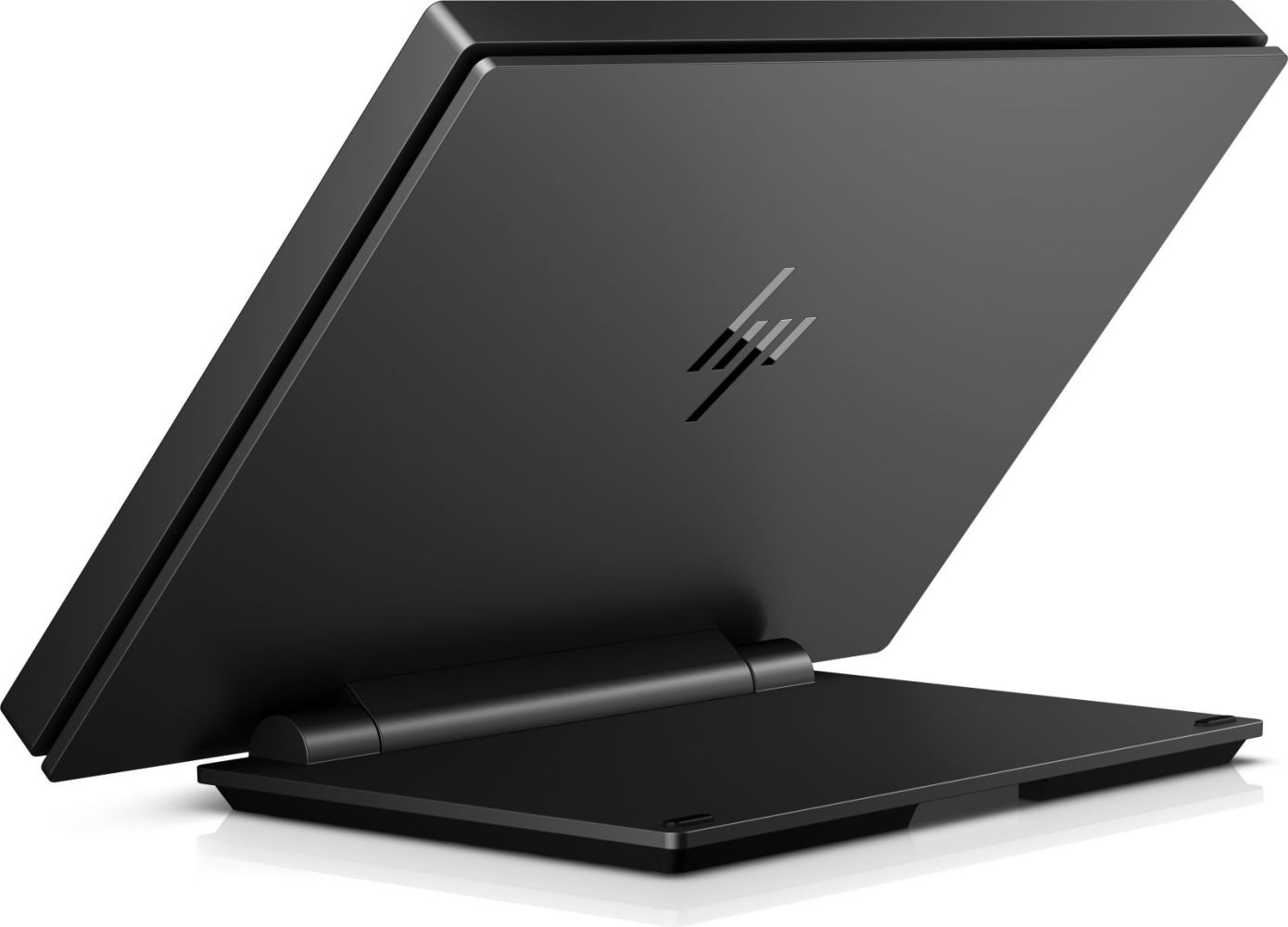

The HP MNTR 3FH67AA#AC3 is a POS customer display monitor with a screen diagonal of 25.6 cm (10.1 inches), specifically designed for use in retail environments. The device features an integrated touchscreen with a resolution of 1280 x 800 pixels and a brightness of 500 cd/m², ensuring clear and easily readable display even in daylight. The IPS panel type provides wide viewing angles of 170° horizontally and vertically, making the display clearly visible from side positions. The response time is 25 ms, ensuring smooth image reproduction for dynamic content. The monitor is finished in black and features a compact design with dimensions of 246.2 mm (width) × 35.2 mm (depth) × 170.2 mm (height) and a weight of 1.49 kg.

Applications

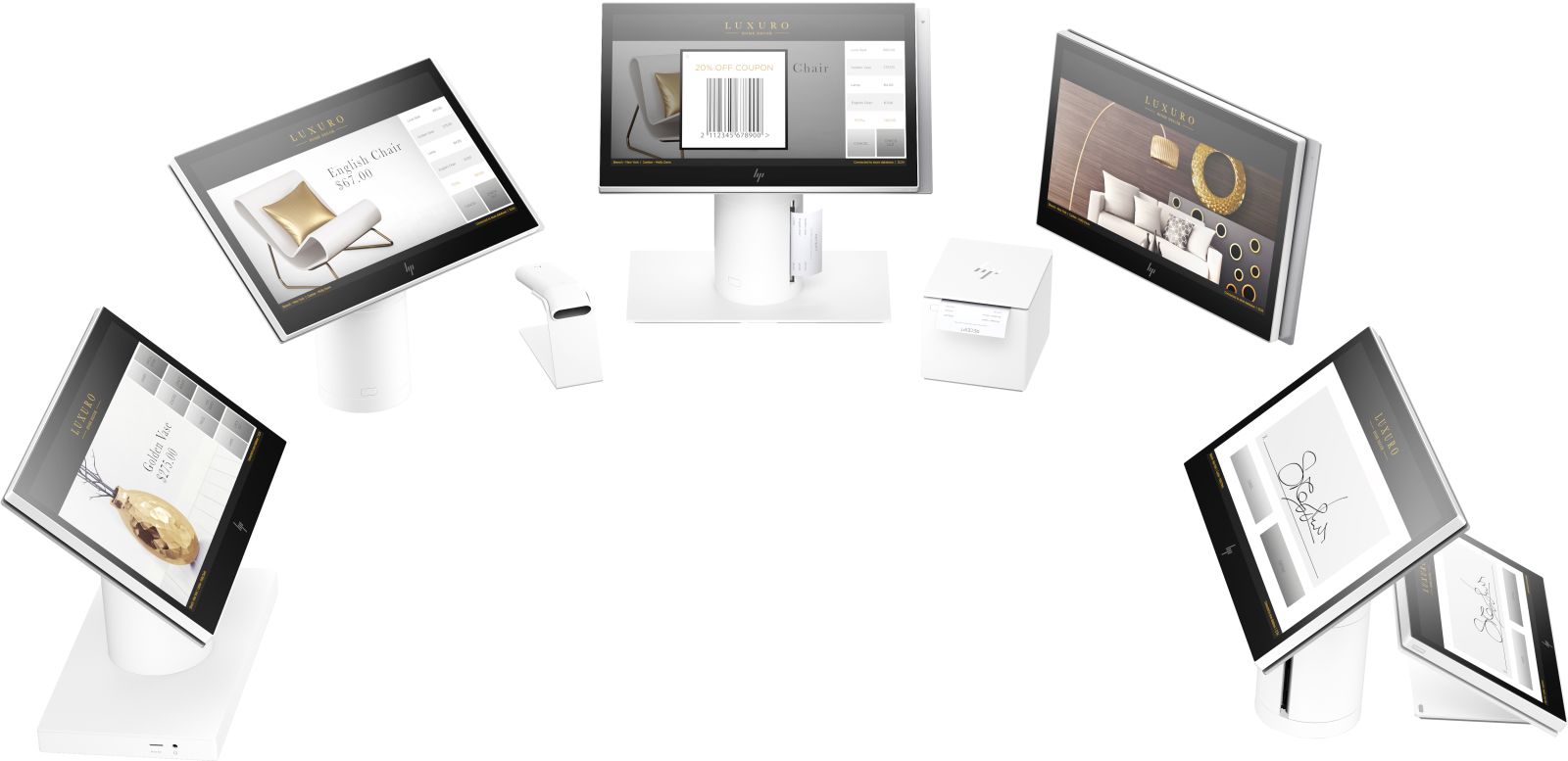

The monitor is intended for use in Point-of-Sale systems (POS), particularly in retail, hospitality, or service industries, where customer interaction via touch displays is encouraged. The integrated table-top touch technology enables direct operation by customers, for example, for product selection, payment confirmation, or entering personal data. Its robust construction and cleanability make it suitable for environments where hygiene and durability are important.

Functions and Equipment in Detail

The monitor features a touchscreen optimized for touch input. The resolution of 1280 x 800 pixels provides sufficient detail for text, graphics, and user interfaces. The brightness of 500 cd/m² ensures good visibility even in daylight. The IPS panel ensures uniform color reproduction and high contrast (800:1) over a wide viewing angle. The pixel pitch of 0.1695 x 0.1695 mm contributes to screen sharpness. Power supply is via USB, with the power adapter providing an output voltage of 5 V and an output current of 3 A.

Technology Explained Simply

The monitor uses an IPS panel, known for its excellent viewing angles and color accuracy – ideal for applications where multiple people view the screen simultaneously. The touch function enables interactive use, with touch inputs directly on the display. The brightness of 500 cd/m² is sufficient for indoor environments, ensuring clear visibility even in daylight.

Compatibility and Accessories

Power supply via USB requires a corresponding interface on the host system.

Mounting and Installation

The compact design and shallow depth of 35.2 mm allow space-saving integration into existing POS systems.

Operational Advantages

The monitor provides a clear, easily readable display with high contrast and wide viewing angles. The touch function enables direct interaction with customers, which can increase efficiency in the sales process. The USB-based power supply reduces the number of cables and simplifies installation. The robust construction and cleanability make it suitable for daily use in commercial environments. The device complies with the ENERGY STAR standard, indicating energy-efficient operation.

Operating Conditions

The monitor can be operated at temperatures from 5 to 35 °C and relative humidity from 20 to 80 %. Storage is possible at temperatures from -20 to 60 °C and humidity from 5 to 95 %. The product was manufactured in China.

Certificates
Sustainability certificates	ENERGY STAR
Display
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Display brightness	500 cd/m²
Touchscreen type	Table
Pixel pitch	0.1695 x 0.1695 mm
Contrast ratio (typical)	800:1
Response time	25 ms
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Panel type	IPS
Touchscreen
Features
Product colour	Black
Country of origin	China
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Packaging data
Package width	3060 mm
Package depth	1100 mm
Package height	2320 mm
Package weight	1.93 kg
Power
Power source type	USB
AC adapter output voltage	5 V
AC adapter output current	3 A
Weight & dimensions
Width	246.2 mm
Depth	35.2 mm
Height	170.2 mm
Weight	1.49 kg

---
