HP 3EK15D#B19 DesignJet T2600dr 91,4 cm ( 36 inch ) PostScript MFP (freight shipping) content_copy

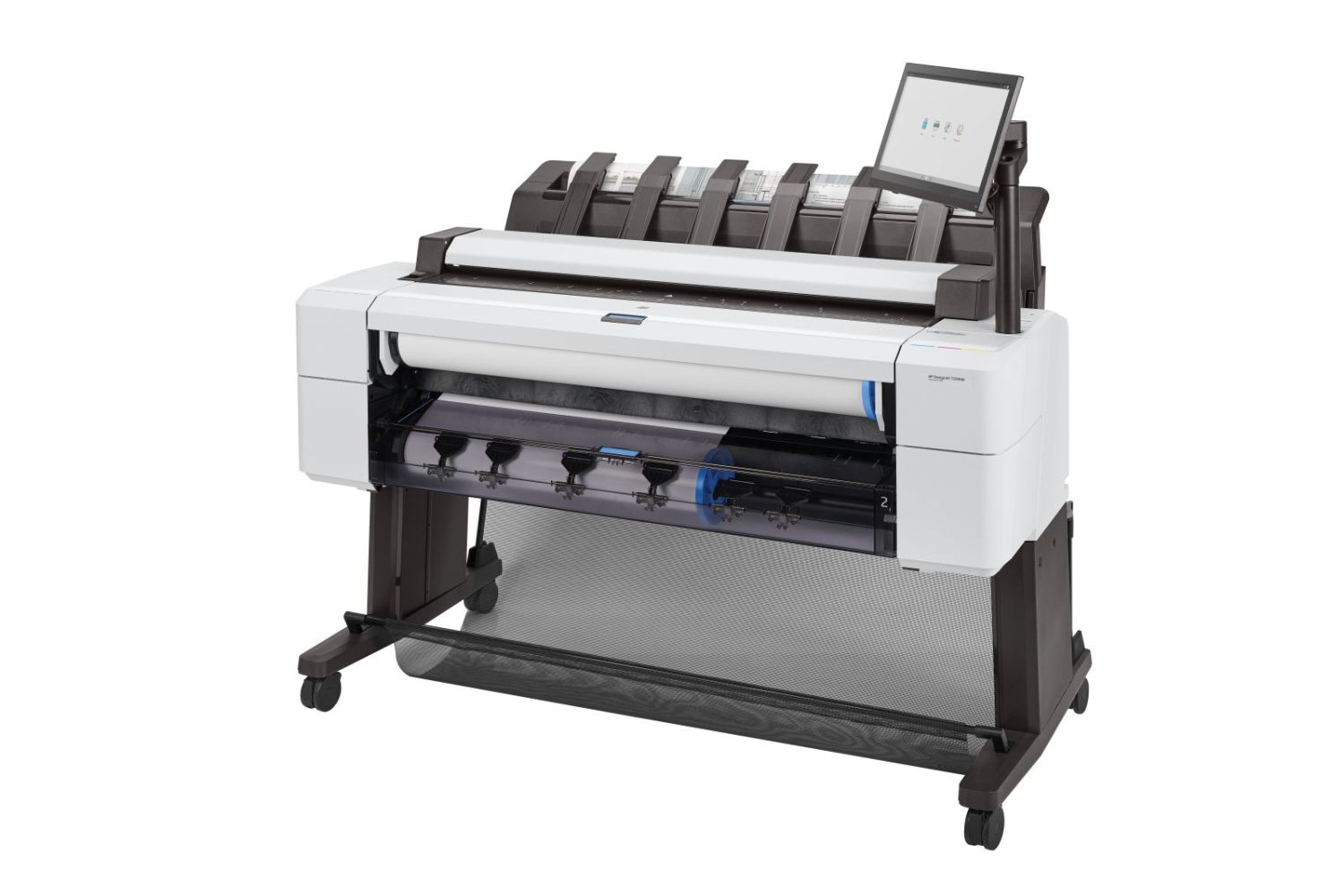

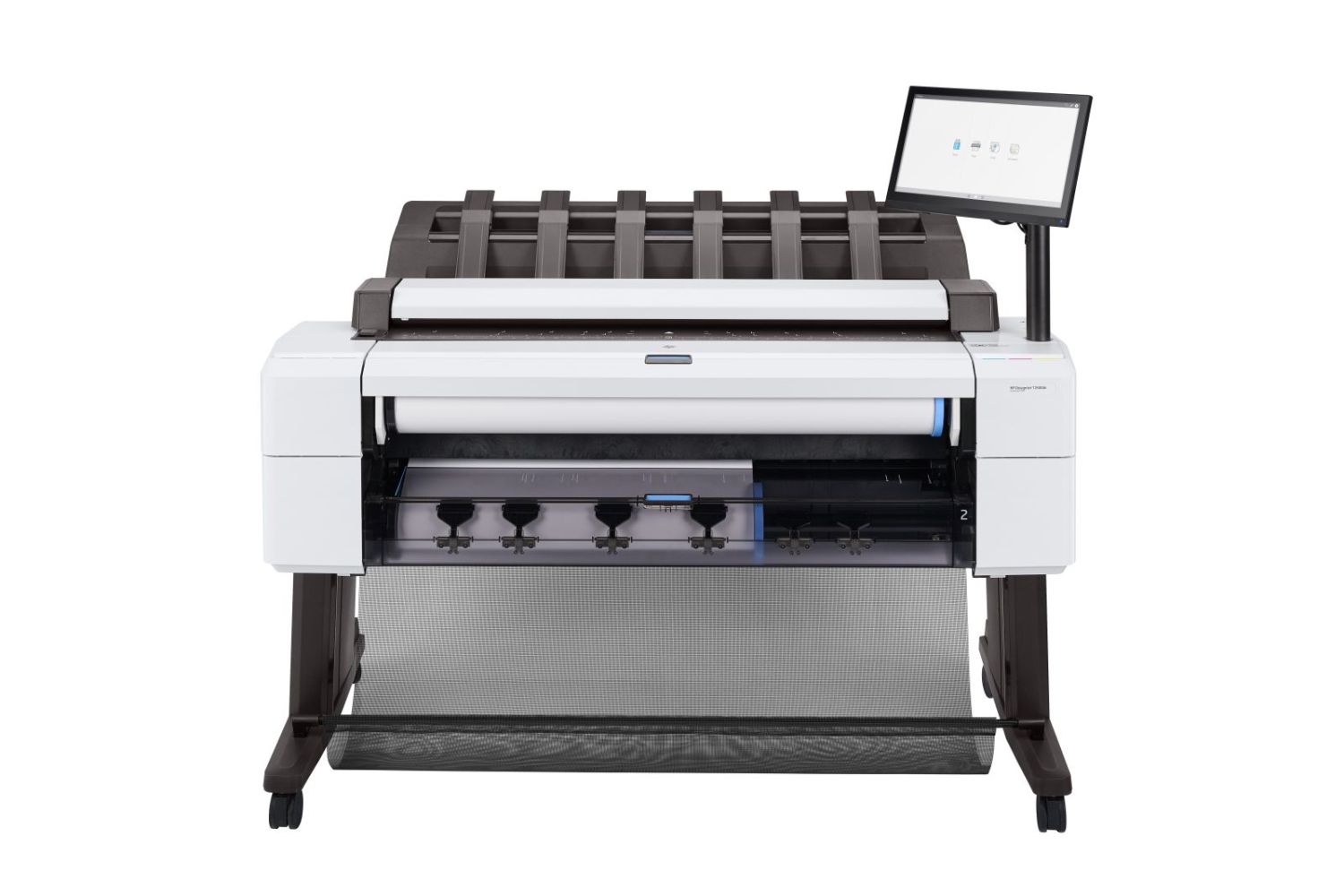

The HP DesignJet T2600dr 91,4 cm ( 36 inch ) PostScript MFP is a large-format printer for professional use in the business segment. It combines printing, copying, and scanning functions in one device and is designed for producing high-quality colour prints in formats up to 914 mm wide. The device is particularly suitable for architecture offices, engineering offices, graphic designers, and other users requiring large, detailed documents such as construction plans, technical drawings, or presentation materials.

Applications

The printer is designed for use in offices and work environments where high print quality and reliability are required. It supports a wide range of media types, including coated paper, glossy paper, photo paper, bond paper, and satin paper, making it suitable for various applications such as technical documentation, architectural visualisations, or creative print products. Support for ISO A formats from A0 to A4 enables flexible use for standard and large-format documents.

Functions and Equipment in Detail

The printer features a print resolution of 2400 x 1200 DPI, ensuring sharp lines and fine details. The six print cartridges in the colours Cyan, Photo Black, Matte Black, Magenta, Yellow, and Grey enable a broad colour palette and different print effects, such as glossy or matte surfaces. The copying function supports zooming between 25 and 400 percent, allowing documents to be adapted to various requirements. Scanning is performed with an optical resolution of 600 x 600 DPI, ensuring precise digitisation of originals.

Technology Explained Simply

The printing technology is based on an inkjet system designed for high print quality and colour accuracy. The page description languages include PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, and CALS G4, ensuring compatibility with a wide range of CAD and graphics programs. The integrated 15.6-inch touchscreen interface enables intuitive operation and direct control of all functions at the device. Support for Wi-Fi Direct and HP ePrint allows mobile printing from smartphones, tablets, and other devices without additional network infrastructure.

Compatibility and Accessories

The device is designed for use with various media types, including coated, semi-matte, glossy, bond, and photo paper. Media handling supports custom media sizes from 210 x 279 mm to 914 x 1219 mm. The integrated software includes HP Click App, HP App, HP Web Jetadmin, HP Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11, HP Build Workspace, and HP SmartStream (optional), supporting device management and security.

Installation and Mounting

The delivery scope includes the HP DesignJet T2600 multifunction printer, a printer stand with media container, a 15.6-inch touchscreen, rolls (8 pieces), print heads, introduction ink cartridges, a user manual, and power cable. Installation is performed by mounting the device on the stand and connecting it to the power supply. The software is installed via the included programs or over the network.

Operational Advantages

The printer features an ENERGY STAR energy efficiency certification, with power consumption of 10 W in sleep mode and 0.3 W when turned off. Operating conditions include a temperature range of 5 to 35 °C and relative humidity of 20 to 80 %. Storage is possible at temperatures from -25 to 55 °C. Certification to Class A meets electromagnetic compatibility requirements in various countries, including the USA, Canada, EU, Australia, New Zealand, China, Japan, and Korea. HP dynamic security provides additional protection against unauthorised access and data misuse.

Brand-specific features
HP Dynamic security
Copying
Copier resize	25 - 400%
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Other features
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
UNSPSC-code	43212104
Packaging data
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	142 kg
Bundled software	HP Click App, HP App, HP Web Jetadmin, HP Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11, HP Build Workspace, HP SmartStream (optional)
Paper handling
Custom media sizes	210 x 279 to 914 x 1219 mm
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Performance
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
HP segment	Business
Ports & interfaces
Mobile printing technologies	HP ePrint
Direct printing
Wi-Fi Direct
Power
Power consumption (off)	0.3 W
Power consumption (sleep)	10 W
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Colour
Scanning
Optical scanning resolution	600 x 600 DPI
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Box contents	HP DesignJet T2600 Multifuntion Printer, printer stand and media bin, 15.6" touchscreen, spindle(s)[8], printheads, introductory ink cartridges, user guide, power cords
Weight & dimensions
Width	1390 mm
Depth	760 mm
Height	1240 mm
Weight	109 kg

---
