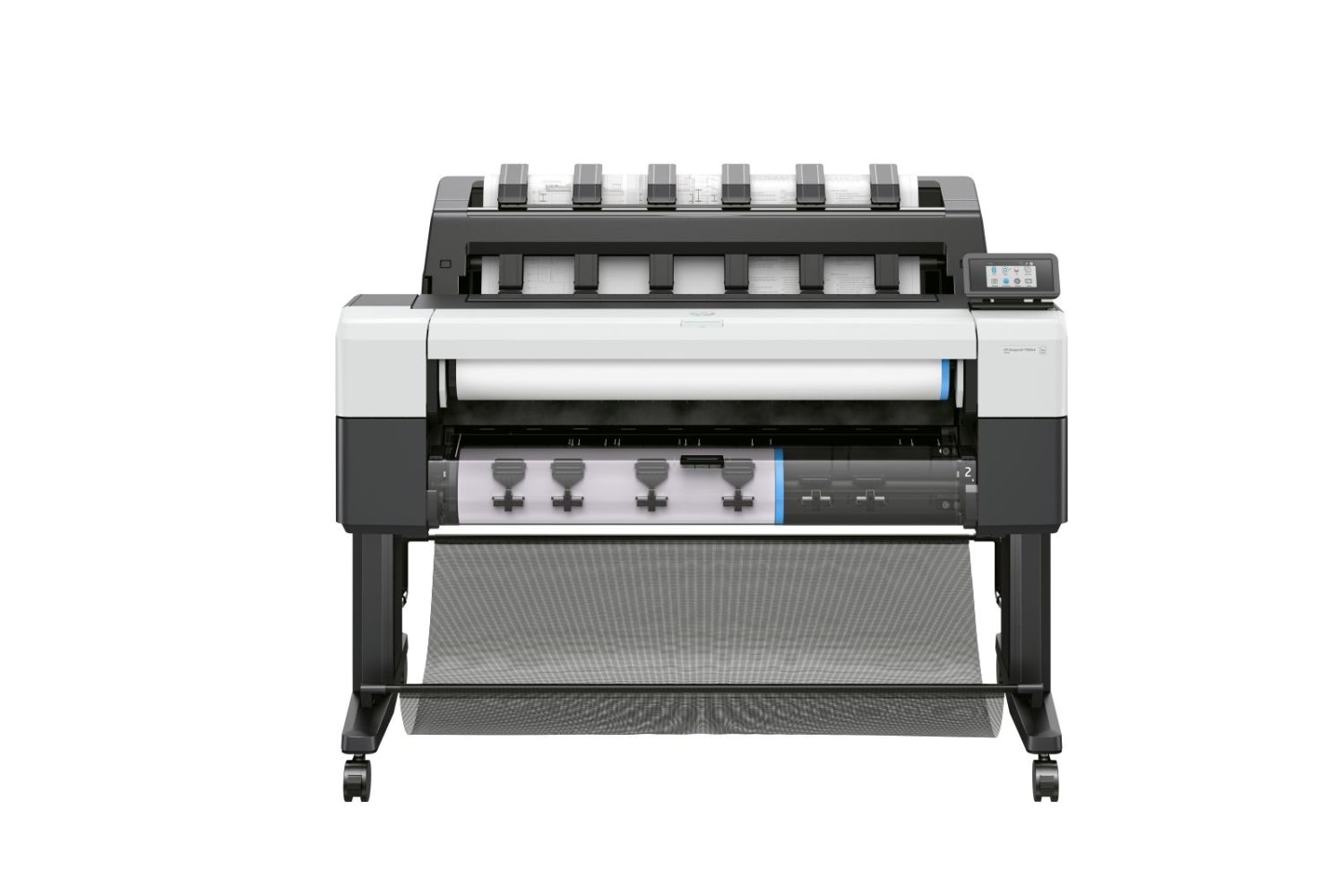

HP DesignJet T1600dr 36inch PostScript Printer content_copy

The HP DesignJet T1600dr PS 91,4 cm ( 36 inch ) is a large-format printer in the business class, designed for professional applications in technical documentation, architecture, engineering, and graphic design. The printer features a maximum print resolution of 2400 x 1200 DPI and supports six print colors: Cyan, Photo black, Matte black, Magenta, Yellow, and Gray, enabling high color accuracy and detail fidelity when reproducing technical drawings, plans, and colored graphics. The print technology is based on an inkjet system, suitable for continuous, high-quality output on various media.

Applications

The printer is designed for use in offices, engineering offices, architectural offices, and print shops where large formats such as A0, A1, A2, A3, and A4, as well as custom formats from 210 x 279 mm to 914 x 1219 mm, are required. Support for PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, and CALS G4 as page description languages ensures compatibility with common CAD and graphic software solutions. The print quality is suitable for precise technical drawings, color plans, presentations, and high-quality photo prints.

Features and Equipment in Detail

The printer supports a wide range of media types for the paper tray, including coated paper, semi-matte paper, glossy paper, bond paper, photo paper, matte paper, heavy paper, and satin paper, allowing flexible adaptation to different printing requirements. The integrated HP dynamic security supports the protection of sensitive data and prevents unauthorized access. The mobile printing function HP ePrint enables printing from mobile devices, with support for Wi-Fi Direct and direct printing, increasing flexibility in the work environment.

Technology Explained Simply

The print resolution of 2400 x 1200 DPI ensures sharp lines and fine details, especially in technical drawings and graphic representations. The six print cartridges enable differentiated color reproduction, with the Photo black cartridge optimized for high-quality photo prints and the Matte black cartridge optimized for technical documents. Power supply is via AC mains voltage at a frequency of 50/60 Hz. In the off state, the printer consumes 0.3 W, and in sleep mode, 10 W, highlighting its energy efficiency. Certification to Class A, including standards from the USA (FCC), Canada (ICES), the EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), and Korea (KCC), ensures electromagnetic compatibility and safe operation in various regions. The device also carries the ENERGY STAR certification, confirming its energy efficiency.

t
Compatibility and Accessories

The printer is designed for use with various media formats, including ISO-A formats from A0 to A4. Support for PostScript 3 and PDF 1.7 makes it compatible with professional layout and CAD programs. The included software comprises HP Click App, HP App, HP Web Jetadmin, HP Security Manager, HP Click Driver for Windows 11, HP Build Workspace, and HP SmartStream (optional), facilitating management, configuration, and security of the device. The software enables remote management, monitoring of print status, and integration into existing IT infrastructures.

Installation and Mounting

The printer is delivered with a printer stand and media container, 6 rolls, print head, introductory ink cartridges, user manual, and power cables. Installation involves mounting the stand, installing the rolls and print heads, and connecting to the power supply. Software installation is performed using the included drivers and applications. Operating conditions include an operating temperature of 5 to 35 °C and relative humidity of 20 to 80 %, with storage possible at temperatures from -25 to 55 °C.

Operational Advantages

The printer offers high print quality suitable for professional applications and supports a wide range of media and file formats. The integrated security technology protects sensitive data, while the mobile printing function increases flexibility. Energy efficiency and certification to international standards ensure reliable operation in various environments. The included software enables efficient management and integration into existing systems.

Dimensions and Weight

The device has a width of 1390 mm, depth of 760 mm, and height of 1080 mm. The weight is 85 kg. Packaging dimensions are 1477 mm (width), 767 mm (depth), and 800 mm (height), with a package weight of 117 kg. Delivery is made in freight shipping packaging.

Brand-specific features
HP Dynamic security
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Other features
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
UNSPSC-code	43212104
Packaging data
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	117 kg
Bundled software	HP Click App, HP App, HP Web Jetadmin, HP Security Manager, HP Click Driver for Windows 11, HP Build Workspace, HP SmartStream (optional)
Paper handling
Custom media sizes	210 x 279 to 914 x 1219 mm
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Performance
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
HP segment	Business
Ports & interfaces
Mobile printing technologies	HP ePrint
Direct printing
Wi-Fi Direct
Power
Power consumption (off)	0.3 W
Power consumption (sleep)	10 W
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Colour
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Box contents	HP DesignJet T1600 Printer, printer stand and media bin, spindle(s)[6], printheads, introductory ink cartridges, user guide, power cords
Weight & dimensions
Width	1390 mm
Depth	760 mm
Height	1080 mm
Weight	85 kg

---
