HP 3EK13A#B19 Designjet T1600dr PostScript 91,4 cm ( 36 inch ) (freight shipping) content_copy

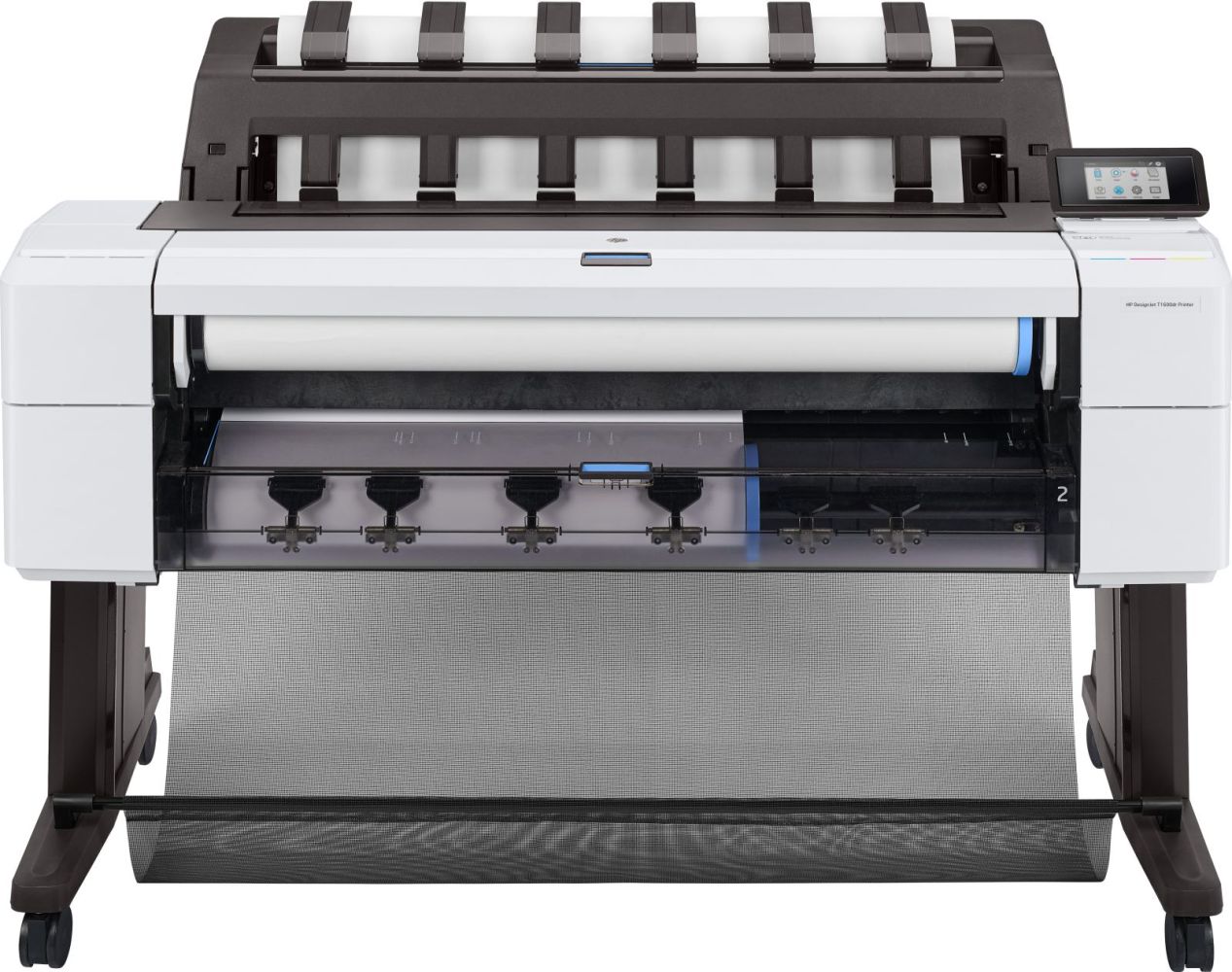

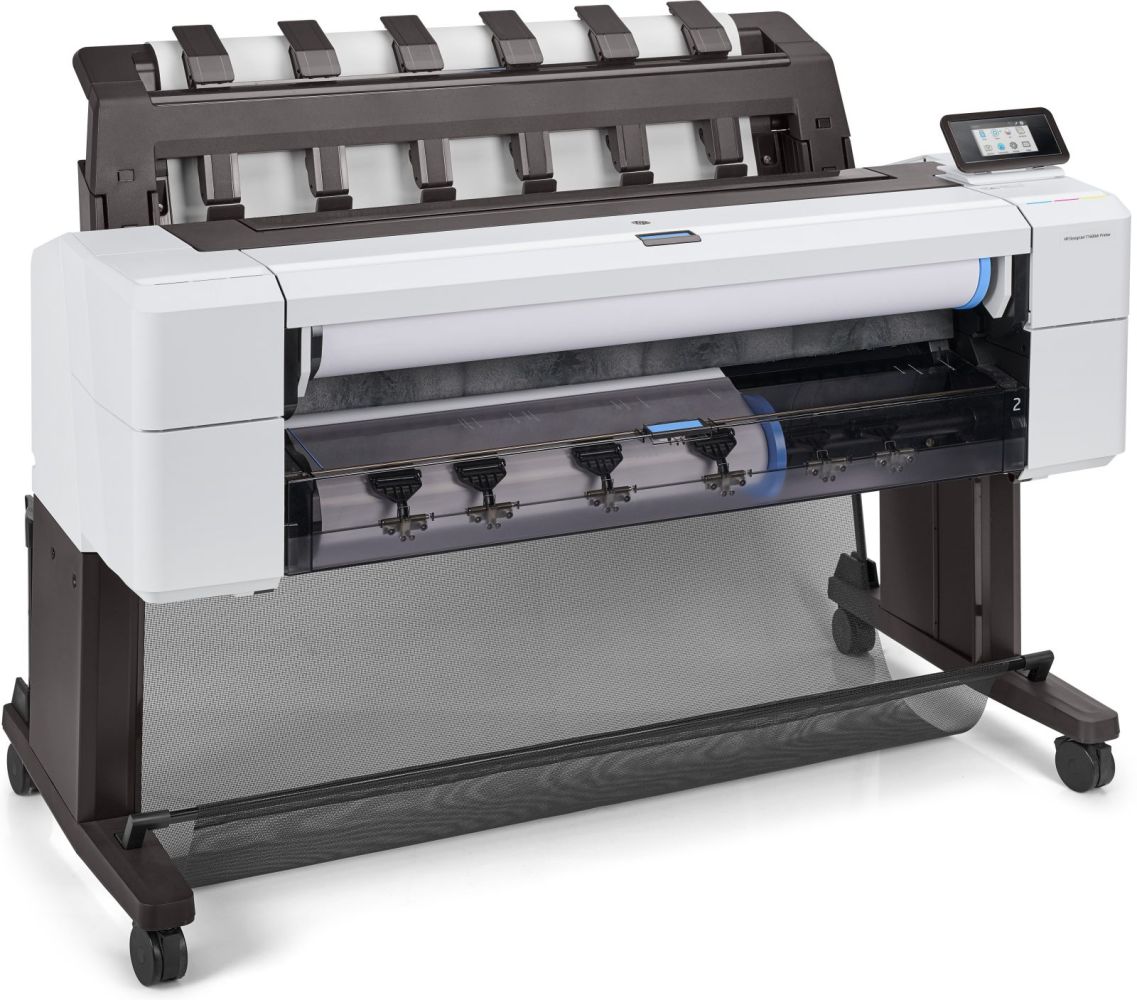

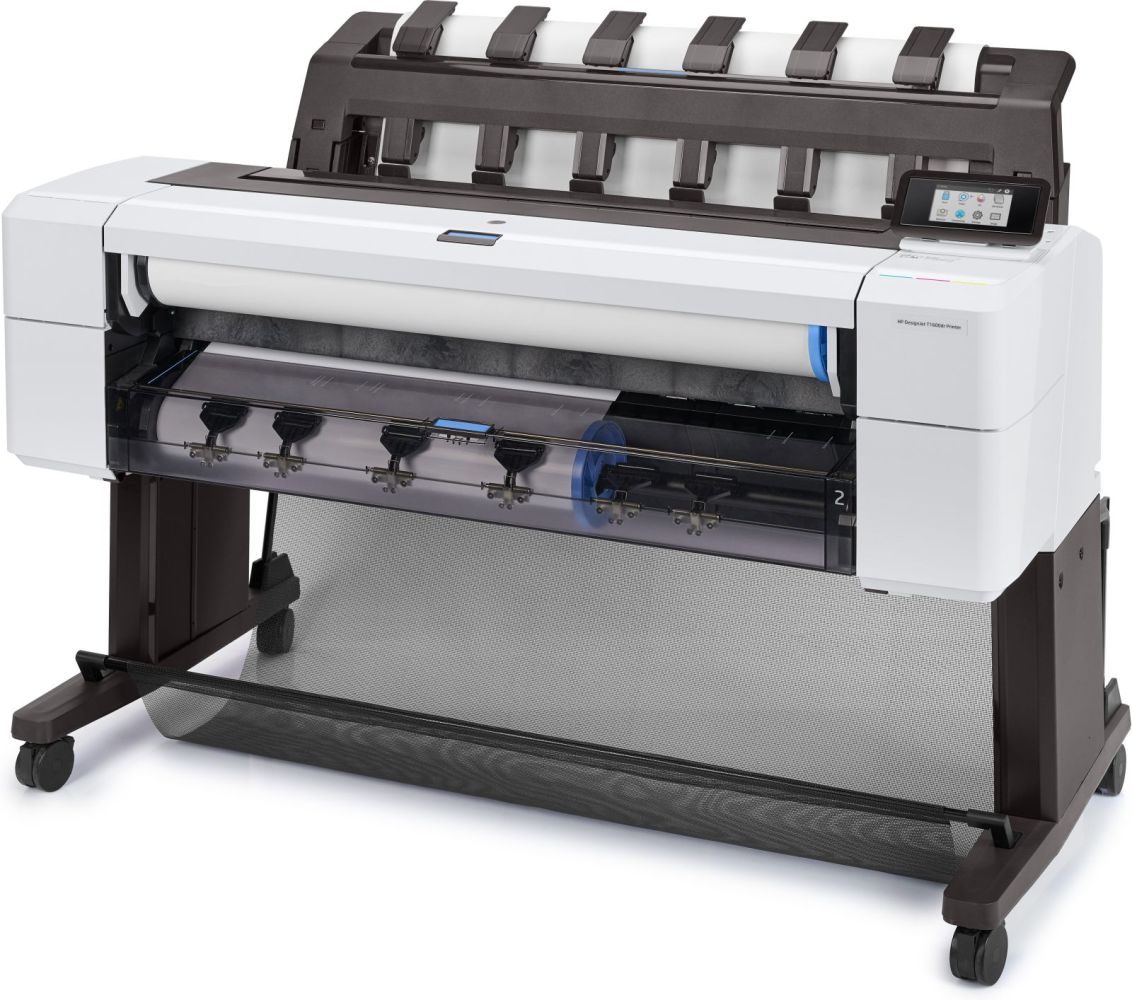

The HP DesignJet T1600 is a large-format printer in the business class, developed for professional applications in the fields of architecture, engineering, graphic design, and technical documentation. The printer features a printing technology based on Thermal Inkjet and achieves a maximum print resolution of 2400 x 1200 DPI, ensuring sharp lines, precise details, and high-quality color reproduction. The print speed reaches up to 180 pages per hour in A1 format, enabling efficient handling of time-critical projects. The print heads are integrated into a universal module that supports six ink cartridges with the colors Cyan, Photo black, Matte black, Magenta, Yellow, and Gray. This color palette enables a wide range of applications, from technical drawings to color-intensive 3D renderings.

Applications

The printer is designed for use in offices, development departments, architectural firms, and print shops where high print quality, speed, and reliability are required. It is particularly suitable for producing construction plans, technical drawings, presentation materials, photo prints, and graphic layouts. Support for PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, and CALS G4 allows direct processing of various file formats, facilitating integration into existing workflows.

Features and Equipment in Detail

The HP DesignJet T1600 offers integrated paper handling with automatic front-loading roll function and a paper tray that can hold up to 100 sheets. The maximum print size is A0 (841 x 1189 mm), with support for custom formats ranging from 210 x 279 mm to 914 x 1219 mm. Supported media types include coated paper, semi-matte paper, glossy paper, bond paper, photo paper, matte paper, heavy paper, and satin paper, enabling flexible adaptation to different requirements. The roll paper function is standard, with a top margin setting of 3 mm.

Technology Explained Simply

Print quality is supported by the Adobe PDF Print Engine, which ensures the highest accuracy and finest details, especially for complex PDF files with special fonts, PANTONE® colors, soft shading, overprint, and transparency. The integrated HP Click Software enables easy PDF printing and optimizes workflows. The HP Smart App allows printing and sharing jobs directly from the cloud via mobile devices. Noise level during printing is 42 dB, which is considered particularly quiet for a large-format printer. Power supply is via AC input voltage of 100–240 V at 50/60 Hz, with power consumption of 10 W in sleep mode and 0.3 W when turned off.

Compatibility and Accessories

The printer is equipped with Ethernet/LAN and Wi-Fi Direct, enabling flexible network integration. Mobile printing technology HP ePrint supports use with mobile devices. Internal storage capacity is 500 GB (HDD), with a total storage capacity of 128000 MB. Operating system support includes both Windows and Mac operating systems. Certification includes requirements from the USA (FCC), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), and Korea (KCC). The printer is equipped with HP dynamic security, ensuring that only ink cartridges with a new or remanufactured HP chip can be used. Firmware updates ensure the effectiveness of these measures.

Installation and Mounting

The delivery includes the HP DesignJet T1600 printer, a printer stand and media container, two rolls, print heads, introductory ink cartridges, an instruction manual, and power cable. Installation is performed using the included software, including HP Click App, HP mobile, ePrint and iOS/Android support, HP Smart App, HP Web Jetadmin, HP JetAdvantage Security Manager, and optionally HP SmartTracker. The software also supports the HP Click Driver for Windows 11. Assembly requires no special tools, as all components are pre-assembled.

Operational Advantages

The printer features a compact design and quiet operation, making it well-suited for office environments. Automatic stacking of up to 100 pages increases productivity. Integrated security with HP Secure Boot, whitelisting, and user authentication protects the network and confidential documents. The ENERGY STAR certification highlights energy efficiency. Print quality is supported by HP Bright Office inks, which deliver vibrant colors and high detail accuracy. The printer is designed for use in a temperature range of 5–35 °C and relative humidity of 20–80 %. For storage, a temperature range of -25–55 °C is permissible.

Brand-specific features
HP Dynamic security
Copying
Copying
Input & output capacity
Total input capacity	100 sheets
Logistics data
Harmonized System (HS) code	84433210
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Other features
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
UNSPSC-code	43212107
Packaging data
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	117 kg
Bundled software	HP Click App, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional), HP Click Driver for Windows 11
Manual
Paper handling
Custom media sizes	210 x 279 to 914 x 1219 mm
Maximum print size	A0 (841 x 1189 mm)
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Roll top margin	3 mm
Roll paper
Performance
Internal memory	128000 MB
Internal storage capacity	500 GB
Storage media	HDD
Sound pressure level (printing)	42 dB
Country of origin	China
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
HP segment	Business
Ports & interfaces
Mobile printing technologies	HP ePrint
Ethernet LAN
USB port
Direct printing
Wi-Fi Direct
Power
Power consumption (PowerSave)	100 W
Power consumption (off)	0.3 W
Power consumption (sleep)	10 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Print head	1
Print speed (normal quality, A1)	180 pph
Colour
Scanning
Scanning
Sustainability
Sustainability certificates	ENERGY STAR
Sustainability compliance
System requirements
Windows operating systems supported
Mac operating systems supported
Technical details
Box contents	HP DesignJet T1600 Printer, printer stand and media bin, spindles (x2), printheads, introductory ink cartridges, user guide, power cords
Weight & dimensions
Width	1390 mm
Depth	760 mm
Height	1080 mm
Weight	85 kg

---
