HP 3EK10A#B19 Designjet T1600 printer 91,4 cm ( 36 inch ) (freight shipping) content_copy

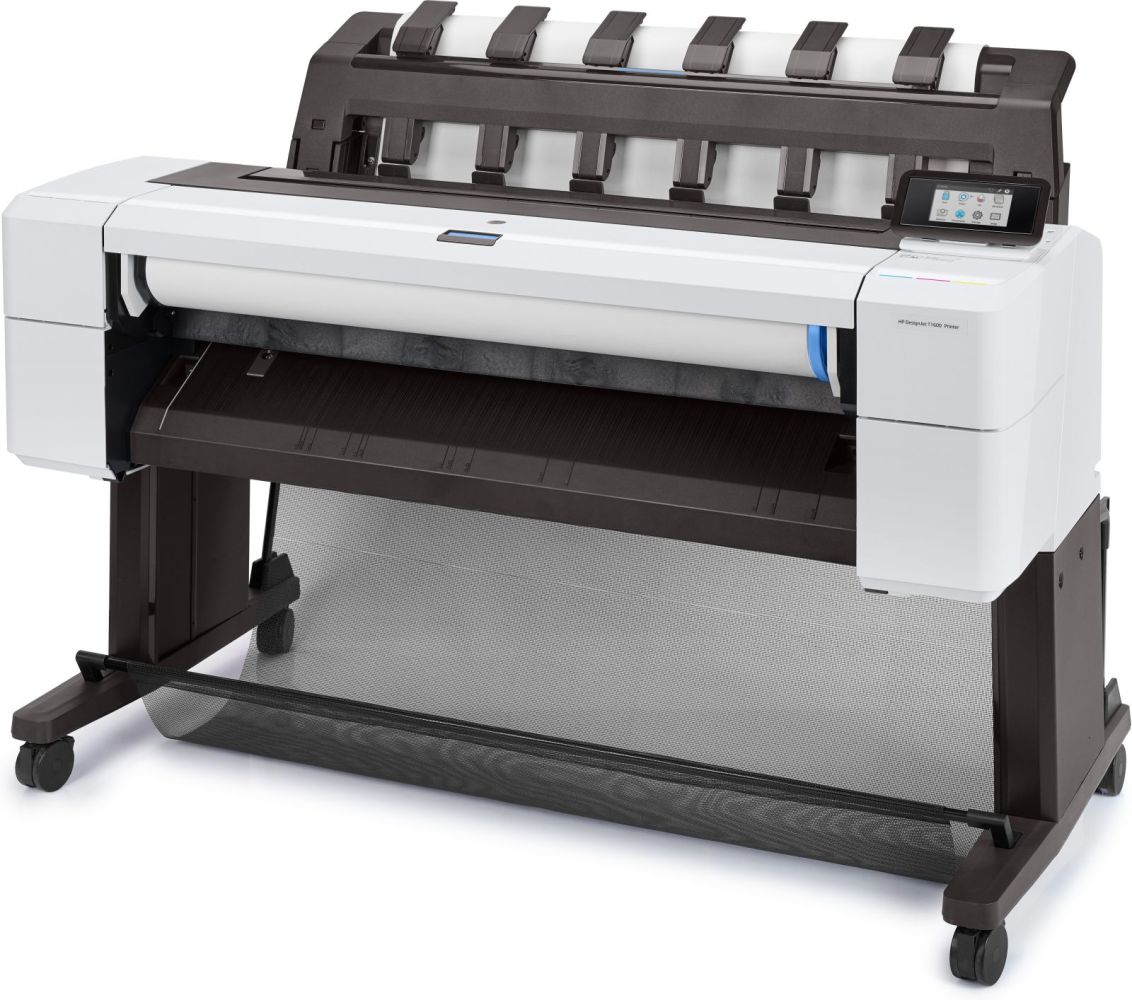

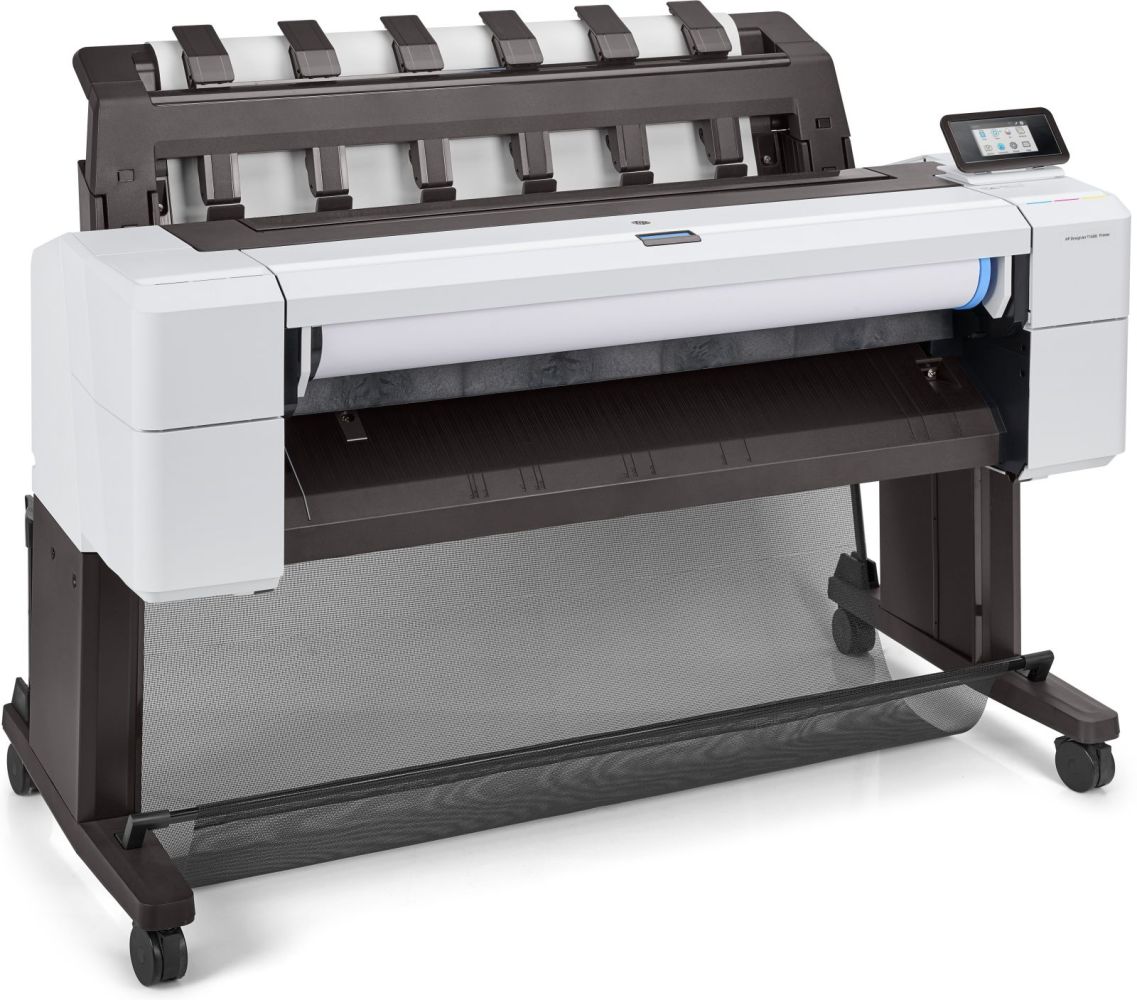

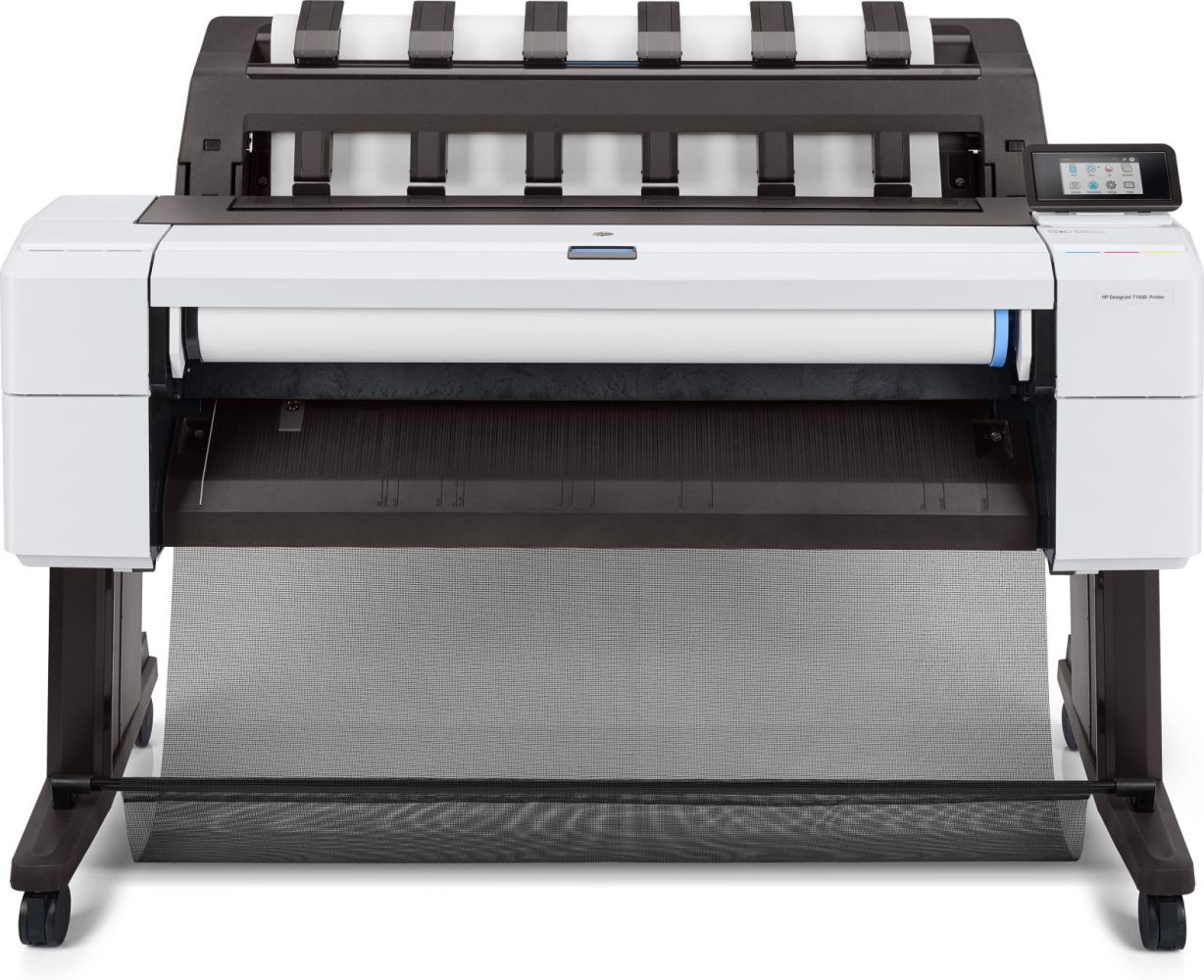

The HP DesignJet T1600 is a large-format printer of the business class, developed for professional applications in the fields of technical drawings, architecture, engineering, and graphic design. It features a printing technology based on Thermal Inkjet and achieves a maximum print resolution of 2400 x 1200 DPI, ensuring sharp lines and detailed color reproduction. The printer is equipped with six print cartridges covering the colors Cyan, Photo Black, Matte Black, Magenta, Yellow, and Gray, providing a broad color palette and high color accuracy. The print heads consist of a universal printhead, ensuring even ink distribution. The print speed reaches up to 180 A1 pages per hour, enabling efficient processing of large jobs. The print colors are based on dye and pigment inks, with pigment ink used for the Matte Black and Gray tones, enabling high durability and color fidelity.

Applications

The printer is designed for use in offices, architectural offices, engineering offices, and graphic studios where high print quality and reliability are required. It is particularly suitable for creating technical drawings, construction plans, 3D renderings, presentation materials, and high-quality print products. The support for various file formats such as HP-GL/2, TIFF, JPEG, HP-RTL, and CALS G4 enables direct processing of CAD and graphic files. The maximum print size is 914 x 1219 mm, with support for ISO A-formats from A0 to A4. The media types include coated paper, semi-matte paper, glossy paper, bond paper, photo paper, matte paper, heavy paper, and satin paper, allowing flexible adaptation to different requirements. The media thickness can be up to 0.5 mm, and the maximum roll diameter is 14 cm.

Features and Equipment in Detail

The printer features an integrated display that simplifies operation. The internal storage capacity is 500 GB, using a hard disk drive (HDD) as the storage medium. This enables storage of large files and processing of complex print jobs. The noise level during operation is 42 dB, and in standby mode it is 32 dB, ensuring quiet operation. The power supply operates on an AC input voltage of 100 to 240 V at a frequency of 50/60 Hz. The power consumption is 100 W in standard operation, 10 W in sleep mode, and 0.3 W when switched off. The operating temperature ranges from 5 to 35 °C, with relative humidity during operation between 20 and 80 %. The storage temperature can range from -25 to 55 °C.

Technology Explained Simply

The printing technology is based on the Thermal Inkjet process, where ink is atomized into small droplets by thermal heating and precisely applied to the paper. The resolution of 2400 x 1200 DPI ensures high detail accuracy, especially for fine lines and shading. The six print cartridges enable a broad color palette and high color accuracy. The use of pigment inks for the Matte Black and Gray tones increases the durability of prints against light and moisture. The integrated Adobe PDF Print Engine ensures highest accuracy in reproducing PDF files, especially for complex fonts, PANTONE® colors, soft shading, overprint, and transparent areas. The print speed of 180 A1 pages per hour enables fast processing of large jobs.

Compatibility and Accessories

The printer is equipped with Gigabit Ethernet, enabling fast network connectivity. Support for HP ePrint and Wi-Fi Direct allows mobile printing from smartphones and tablets. The direct printing function enables printing without a computer. The software environment includes HP Click, HP mobile, ePrint, iOS/Android support, the HP Smart App, and HP Web Jetadmin. The HP JetAdvantage Security Manager software ensures optimal data security. As an alternative or successor, the HP DesignJet T1600 36inch Printer Plus Edition is offered.

Installation and Mounting

The printer is delivered with a printer stand, a media tray, a roll, print heads, introductory ink cartridges, an operating manual, and power cables. Installation involves mounting the stand and setting up the print heads and ink cartridges. The network connection is established via the Ethernet port. The software is installed using the included programs.

Operational Advantages

The printer offers high productivity through fast print speed and automatic stacking of up to 100 pages. The quiet operating noise of 42 dB ensures a pleasant working environment. The integrated security technology, including HP Secure Boot and whitelisting, protects the network from unauthorized access. Secure user authentication enables control over access to the printer and confidential documents. The HP JetAdvantage Security Manager software ensures continuous data security. The use of HP Bright Office inks ensures vibrant colors and high color fidelity. The compact design and small footprint make the printer suitable for any workspace.

Certification and Sustainability

The printer meets the requirements of Class A, including USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), and Korea (KCC). It is also awarded the ENERGY STAR certification, highlighting its energy efficiency. The safety certifications include EU directives (LVD and EN 60950-1), Russia, Belarus, Kazakhstan (EAC), and Ukraine (UA). Sustainability compliance is confirmed, with the use of reused HP chips enabling the use of remanufactured, reused, and refilled print cartridges.

Brand-specific features
HP ePrint
HP Dynamic security
Copying
Copying
Logistics data
Harmonized System (HS) code	84433210
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Other features
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Safety	EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA)
UNSPSC-code	43212107
Packaging data
Package width	1477 mm
Package depth	767 mm
Package height	800 mm
Package weight	113 kg
Bundled software	HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager
Cartridge(s) included
Manual
Paper handling
Custom media sizes	210 x 279 to 914 x 1219 mm
Maximum print size	914 x 1219 mm
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Media thickness	0.5 mm
Maximum roll diameter	14 cm
Media width (sheets)	914 mm
Performance
Product colour	Black, White
Internal storage capacity	500 GB
Storage media	HDD
Sound power level (standby)	32 dB
Sound pressure level (printing)	42 dB
Country of origin	China
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
HP segment	Business
Built-in display
Ports & interfaces
Ethernet interface type	Gigabit Ethernet
Mobile printing technologies	HP ePrint
Wi-Fi
Ethernet LAN
USB port
Direct printing
Wi-Fi Direct
Power
Power consumption (typical)	100 W
Power consumption (off)	0.3 W
Power consumption (sleep)	10 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow, Grey
Print head	1 universal printhead
Print speed (normal quality, A1)	180 pph
Colour
Scanning
Scanning
Sustainability
Sustainability certificates	ENERGY STAR
Sustainability compliance
Technical details
Box contents	HP DesignJet T1600 Printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
Weight & dimensions
Width	1390 mm
Depth	760 mm
Height	1080 mm
Weight	82 kg

---
