HP 1VD87A#B19 DesignJet T1700 - 1118 mm (44 inch) PostScript+ +++ Postscript file format content_copy

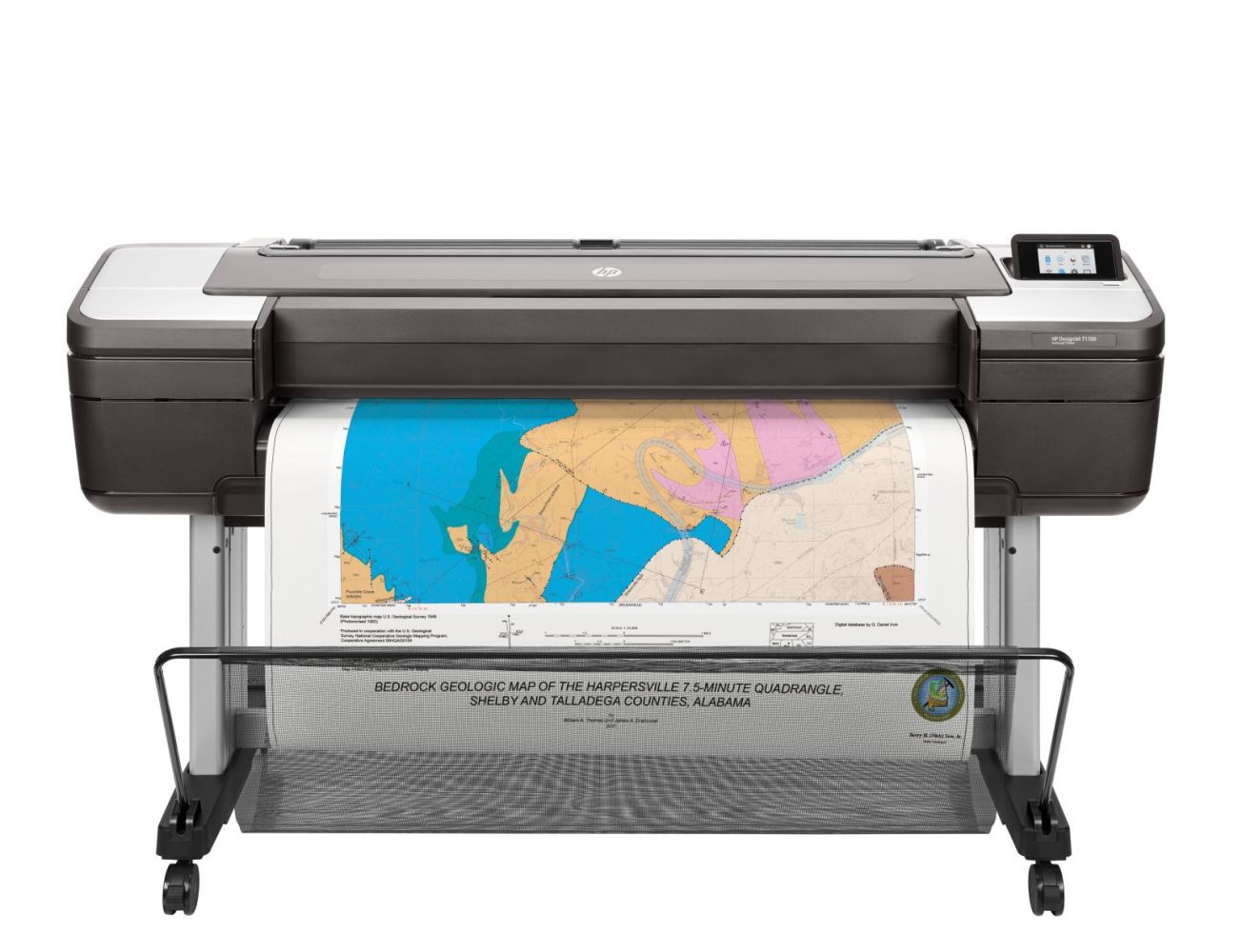

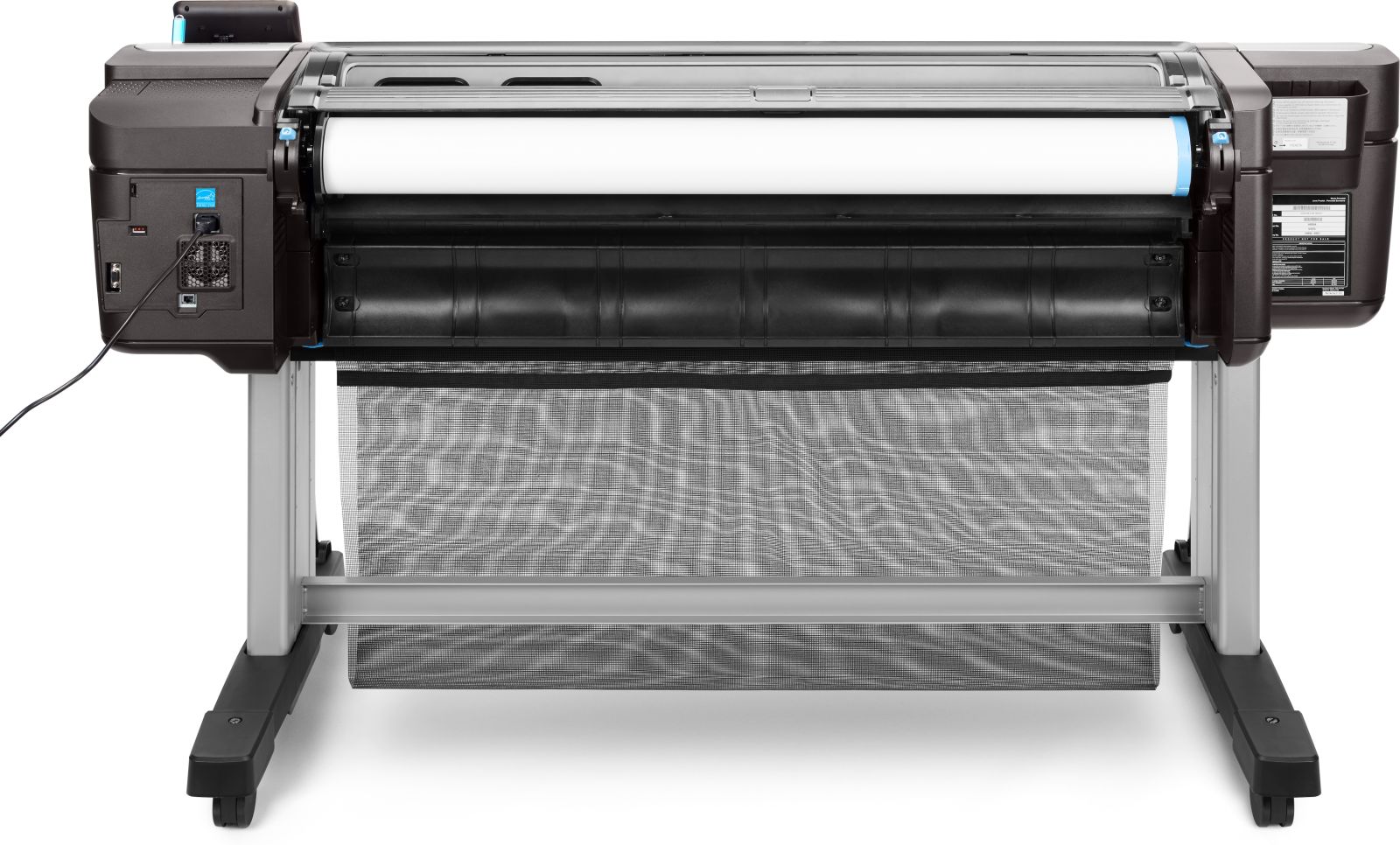

The HP DesignJet T1700 is a large-format printer in the business segment class, specifically designed for creating high-quality technical drawings, CAD and GIS applications. With a maximum print width of 1118 mm (44 inches) and a print resolution of 2400 x 1200 DPI, it delivers precise and detailed output. The printing technology is based on the Thermal Inkjet process, ensuring high colour accuracy and sharp line quality. The printer features six print cartridges in the colours Cyan, Photo Black, Matte Black, Magenta, Yellow, and an additional pigment ink for Matte Black, enabling versatile colour reproduction. The print heads are housed in three universal print heads, with each head covering two colours, ensuring efficient and even ink distribution.

Applications include architecture, engineering, urban planning, and other industries requiring large, precise, and colour-accurate plans. Support for PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, CALS G4, and URF allows direct processing of various file formats, facilitating integration into existing workflows. Print speed is 116 pages per hour in A1 format, ensuring efficient output in professional production environments.

Functions and equipment in detail include an internal storage capacity of 500 GB with HDD technology, designed for temporary storage of large files and processing of complex graphics. The printer features 128 GB maximum RAM, supporting processing of large files and simultaneous handling of multiple jobs. The integrated Adobe PDF Print Engine ensures precise reproduction of transparencies, gradients, and multiple layers, maintaining output quality even for complex documents. The HP Bright Office inks enable vibrant colours and sharp image quality, even on plain paper.

Technology explained simply shows that the printer has a powerful processing architecture designed for fast processing of large files. The print heads, with a density of 2400 nozzles per inch, enable line precision of ±0.1 %, which is crucial for technical drawings. The dynamic security of the device protects against unauthorised access and blocks print cartridges that do not contain an HP chip. Firmware updates ensure the effectiveness of these measures. The encrypted hard drive and features such as HP Secure Boot and whitelisting enhance protection of print data.

Compatibility and accessories include support for USB Type-A (one interface) and Ethernet/LAN (one RJ-45 interface), enabling flexible network integration. The Wi-Fi Direct and HP ePrint functions extend printing options for mobile devices. Paper handling supports various media types such as coated paper, semi-matte paper, glossy paper, bond paper, photo paper, matte paper, heavy paper, and satin paper. Maximum media dimensions are 1118 x 1676 mm, with support for ISO A formats from A0 to A4. Paper rolls can be processed up to a thickness of 0.8 mm. Non-printable margins are 3 mm along the edges of the roll.

Installation and mounting are carried out via integrated interfaces and support for printing software such as HP Click App and HP Utility for Windows and Mac. Installation is performed using the supplied software, which also supports configuration of network and security settings. Printer control is managed via the HP Embedded Web Server and HP Web Jetadmin for remote administration.

Operational advantages include high print speed, precise colour reproduction, and high reliability when processing large files. The integrated HP JetAdvantage Security Manager software enables central management and security of the printer fleet. Print cost control via accounting solutions or HP Partner Link supports cost optimisation. The dual-roll option (optional) reduces the number of roll changes and allows switching between different paper types without interrupting the printing process. The sound power level in standby is 5 dB, indicating quiet operation. Power consumption in standard operation is 100 W, in sleep mode 0.3 W, and in off state 0.1 W. Operating temperature ranges from 5 to 40 °C, with relative humidity during operation between 20 and 80 %. Storage is possible at temperatures from -25 to 55 °C. The printer is certified with ENERGY STAR and complies with electromagnetic compatibility requirements of Class A, including standards from the USA (FCC), Canada (ICES), the EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), and South Africa (SABS). Manufacturing takes place in China. The total carbon dioxide footprint is 700 kg CO2e, with 538 kg from manufacturing, 39 kg from logistics, and 29 kg from end-of-life. The supplied software includes HP Click App, HP Utility for Mac and Windows, HP Web Jetadmin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, and HP Click drivers for Windows 11. The delivery includes the HP DesignJet T1700 printer, print heads, and ink cartridges. Delivery includes UHG (Environmental and Health Fee) and is exclusively available via pallet shipping.

Technical specifications are detailed in the product overview of the shop. Manufacturer information has been verified and corrected, with no discrepancies found between sources. Information regarding technical features, safety, compatibility, and delivery content is complete and accurate. Technical terms such as Thermal Inkjet, PostScript 3, HP Bright Office inks, dynamic security, Adobe PDF Print Engine, and ENERGY STAR are bolded at their first occurrence in the text to highlight their significance, without adding additional explanations or lists.

Brand-specific features
HP Dynamic security
Carbon footprint
Total carbon footprint (kg of CO2e)	630
Carbon emissions, manufacturing (kg of CO2e)	538
Carbon emissions, logistics (kg of CO2e)	39
Carbon emissions, end-of-life (kg of CO2e)	29
Total carbon emissions, w/o use phase (kg of CO2e)	28
Copying
Copying
Logistics data
Harmonized System (HS) code	84433210
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-25 - 55 °C
Other features
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Maximum internal memory	128 GB
UNSPSC-code	43212107
Packaging data
Package width	1955 mm
Package depth	770 mm
Package height	710 mm
Package weight	126 kg
Bundled software	HP Click App, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, HP Click Driver for Windows 11
Paper handling
Custom media sizes	210 x 279 to 1118 x 1676 mm
Maximum print size	1118 x 1676 mm
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Media thickness	0.8 mm
Print margin roll	3 mm
Roll top margin	3 mm
Cut sheets
Roll paper
Performance
Internal storage capacity	500 GB
Storage media	HDD
Sound power level (standby)	5 dB
Country of origin	China
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
HP segment	Business
Ports & interfaces
USB connector	USB Type-A
USB 2.0 ports quantity	1
RJ-45 ports quantity	1
Mobile printing technologies	HP ePrint
Ethernet LAN
USB port
Direct printing
Wi-Fi Direct
Power
Power consumption (standby)	24 W
Power consumption (typical)	100 W
Power consumption (off)	0.1 W
Power consumption (sleep)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Printing
Print resolution colour	2400 x 1200 DPI
Print technology	Thermal inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, CALS G4, URF
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow
Print head	3
Print speed (normal quality, A1)	116 pph
Colour
Scanning
Accuracy	0.1%
Scanning
Sustainability
Sustainability certificates	ENERGY STAR
Sustainability compliance
Technical details
Box contents	HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits
Weight & dimensions
Width	1802 mm
Depth	695 mm
Height	998 mm
Weight	88.9 kg

---
