Helukabel 83817 HELU HELUDATA PAAR-TRONIC control cable UL (LiYCY-TP) 8x2x0.34mm² (22 AWG) gray

Technical data:

Special PVC control cable approved according to UL Style 2464, cores according to UL Style 1061/1729
Temperature range moving -10°C to +80°C fixed -20°C to +80°C
Nominal voltage 300 V
Test voltage 1500 V
Breakdown voltage min. 3000 V
Insulation resistance min. 100 MOhm x km
Minimum bending radius moving 15x cable Ø fixed 7.5x cable Ø
Coupling resistance max. 250 Ohm/km

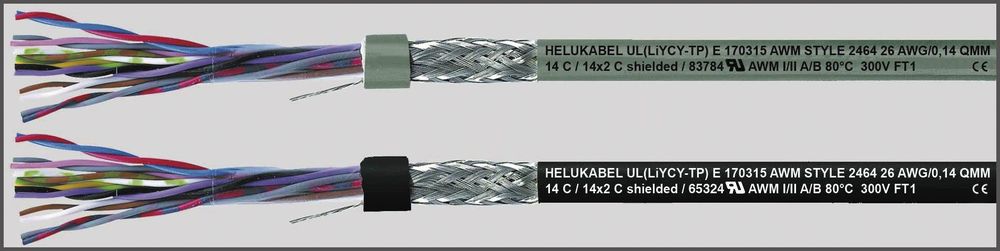

Structure:
Tinned copper strand, finely stranded, according to ASTM-B 174-95 class JM Strand structure at: 0.14 mm² 7x0.162 mm 0.23 mm² 7x0.202 mm 0.34 mm² 7x0.254 mm 0.56 mm² 7x0.32 mm
core insulation made of special PVC class 43 or semi-rigid in accordance with UL Std.1581 tab.50.182 and 50.183
Core identification (pair) in accordance with DIN 47100, with color repetition from the 23rd pair or international color code
Cores twisted into pairs with optimal lay lengths Pairs twisted
in layers with optimal lay lengths Separating
foil
Drain wire Shielding braid
made of tinned copper wires, coverage approx. 85%
Outer jacket made of special PVC class 43 in accordance with UL Std.1581 tab.50.182
Jacket color: black (international color code) gray (DIN 47100 - stock type)
Properties:
The materials used in production are free of silicone and cadmium and free of substances that impair paint wetting
Largely resistant to oil, solvents, acids, alkalis
Tests:
PVC flame retardant according to UL VW-1, CSA FT1
Notes:
unshielded analog type: control cable UL (LiYY-TP)
Use:
Flexible shielded paired connection cable, as control, signal and measuring cable on machine tools, assembly lines and conveyor belts, in plant construction, in air conditioning technology, in iron and steel works. EMC = Electromagnetic Compatibility To optimize the EMC properties, we recommend a large-area, all-round contact on both sides of the copper braid.
Standard lengths: 100 m, 500 m, 1000 m
Subject to technical changes.
Type: 83817
