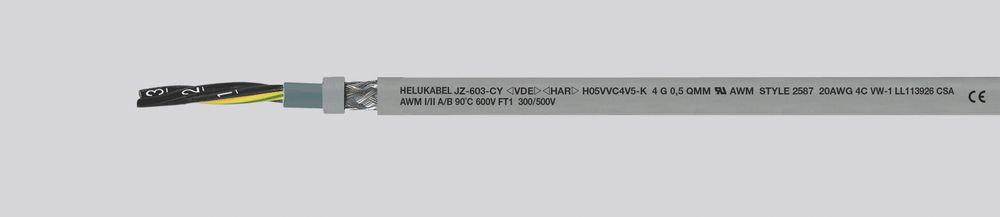

Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC
|
13,56 EUR |
|||||||||||
|
incl. 2,48 EUR copper surcharge ( 16,14 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2051817 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 83757 | ||||||||||
| UPC/EAN: | 4060892033940 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 83757:
Technical data:
Special PVC hose cable with oil-resistant outer jacket in accordance with DIN VDE 0285-525-2-51, DIN EN 50525-2-51 and UL Style 2587Temperature range HAR moving -5°C to +70°C fixed -40°C to +70°C UL/CSA moving -5°C to +90°C fixed -40°C to +90°C
Nominal voltage HAR U0/U 300/500 V UL/CSA 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance min. 20 MOhm x km
Minimum bending radius moving 10x cable Ø fixed 5x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Coupling resistance max. 250 Ohm/km
Structure:
Bare copper wire fine-stranded according to DIN VDE 0295 cl.5, BS 6360 cl.5 or IEC 60228 cl.5
core insulation made of special PVC and class 43 according to UL Std.1581
core identification according to DIN VDE 0293 black cores with continuous white numbering
protective conductor GN-GE, from 3 cores in the outer layer
cores stranded in layers with optimal lay lengths
inner jacket based on PVC
shielding braid made of tinned copper wires, coverage approx. 85%
outer jacket made of special PVC, oil-resistant and class 43 according to UL Std.1581
jacket color: gray (RAL 7001) with meter marking
Properties:
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, UL VW-1, CSA FT1
Oil-resistant in accordance with DIN VDE 0473-811-404/ DIN EN 60811-404, UL 1581 Part 50.182.
Notes:
unshielded analog type: JZ-603
Use:
MULTINORM control cables are used in almost all machines, systems and devices intended for export. Thanks to the multiple approvals, these cables can be used almost worldwide for medium mechanical stress for flexible applications with free movement without tensile stress and without forced movement in dry, damp and wet rooms, but not outdoors. EMC = Electromagnetic Compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area all around.
Standard lengths: 500 m, 1000 m
Technical changes reserved.
Type: 83757
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC?
The article Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 83757 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC always at the best possible price. We can give you a discount of 2% on Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 meters of Helukabel 83757 HELU UL/CSA JZ-603-CY 12G1.5qmm gray control cable PVC we can offer you a price of 13,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
