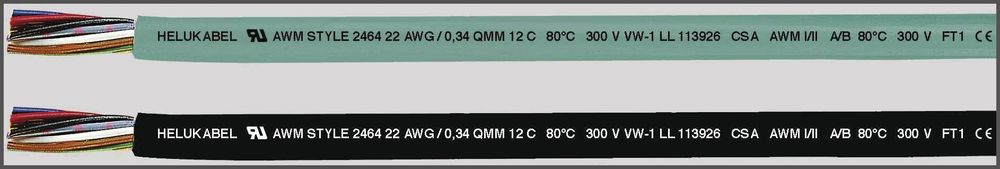

HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M
|
831,01 EUR |
|||||||||||
|
incl. 58,81 EUR copper surcharge ( 988,90 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 1103675 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 83377-500 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 83377-500:
Technical data:
Special PVC control cable approved according to UL Style 2464, cores for AWG 26-20 in accordance with UL Style 1061/1729 for AWG 18-16 in accordance with UL Style 1007/1569Temperature range moving -10°C to +80°C fixed -20°C to +80°C
Nominal voltage 300 V
Test voltage 1500 V
Breakdown voltage min. 3000 V
Minimum bending radius moving 15x cable Ø not moving 7.5x cable Ø
Structure:
Tinned copper strand, finely stranded, AWG 26-20 in accordance with ASTM-B 174-95 class JM, AWG 18-16 in accordance with ASTM-B 286
Strand structure at: 0.14 mm² = 7x0.162 mm 0.23 mm² = 7x0.202 mm 0.34 mm² = 7x0.254 mm 0.56 mm² = 7x0.32 mm 0.82 mm² = 19x0.235 mm 1.30 mm² = 19x0.31 mm
Core insulation made of special PVC or semi-rigid in accordance with UL Std.1581 tab.50.182 and 50.183
Core identification in accordance with DIN 47100 or international colour code
Cores twisted in layers with optimum lay lengths
Outer sheath made of special PVC in accordance with UL Std.1581 tab.50.182
Sheath colour: black (international colour code) grey (DIN 47100)
Properties:
The materials used in production are free from silicone and cadmium and free from substances that impair paint wetting
Largely resistant to oil, solvents, acids, alkalis
Tests:
PVC flame retardant according to UL VW-1, CSA FT1
Notes:
shielded analog type: control cable UL (LiYCY)
Use:
As a flexible connection and connecting cable, as a control, signal and measuring cable on machine tools, assembly lines and conveyor belts, in plant engineering, in air conditioning technology, in iron and steel works.
Standard lengths: 100 m, 500 m, 1000 m
Subject to technical changes.
Type: Steuerleitung UL (LiYY)
The item price shown refers to 500 meters Helukabel 83377-500
Questions & answers
What is the delivery time of HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M?
The article HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 83377-500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M always at the best possible price. We can give you a discount of 2% on HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 meters of HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M we can offer you a price of 773,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
HELU control cable UL (LiYY) HELUKABEL P UL 4XAWG 22 SW Standard length: 500 M is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
