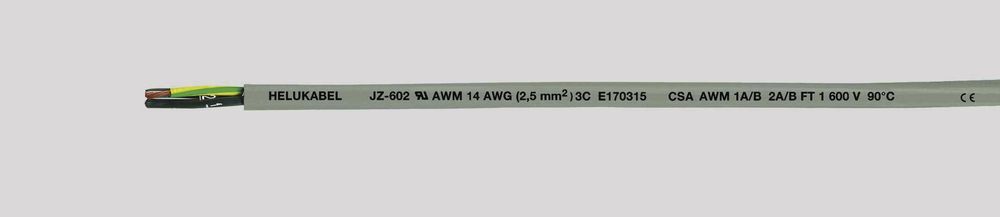

Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose
|
1,64 EUR |
|||||||||||
|
incl. 0,38 EUR copper surcharge ( 1,95 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 635478 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 83071 | ||||||||||
| UPC/EAN: | 4060892014451 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 83071:
Technical data:
Special PVC hose cable according to UL CSA AWM I/II A/B Style 2587 (jacket material) and CSATemperature range moving -5°C to +90°C fixed -40°C to +90°C
Nominal voltage UL/CSA 600 V
Test voltage 3000 V
Breakdown voltage min. 6000 V
Insulation resistance min 20 MOhm x km
Minimum bending radius moving 7.5x cable Ø fixed 4x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper wire, according to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of PVC compound type TI3 according to DIN VDE 0207-363-3 / DIN EN 50363-3 and class 43 in accordance with UL Std.1581
Core identification Black cores with continuous white numbering
Cores stranded in layers with optimal lay lengths
Outer jacket made of special PVC compound type YM5 in accordance with DIN VDE 0207 Part 5 and class 43 in accordance with UL Std.1581
Jacket color: gray (RAL 7001) with meter marking
Properties:
Resistant to mineral oils, synthetic oils and coolants
The outer jacket passes an improved oil resistance test
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, UL VW-1, CSA FT1
Notes:
'Cleanroom qualified\lashshielded analogue type: JZ-602-CY
Use:
UL and CSA Approved flexible control cables up to 600 V, for all machines in tool and plant construction, suitable for installation in dry, damp and wet rooms with medium mechanical stress without tensile stress and without forced movement, but not outdoors.
Standard lengths: 100 m, 500 m, 1000 m.
Subject to technical changes.
Type: JZ-602 3XAWG 16 3G1.5 QMM GRAU
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose ?
The article Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 83071 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose always at the best possible price. We can give you a discount of 2% on Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose we can offer you a price of 1,62 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 83071 HELU JZ-602 3XAWG 16 3G1.5 QMM GREY, special PVC hose via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
