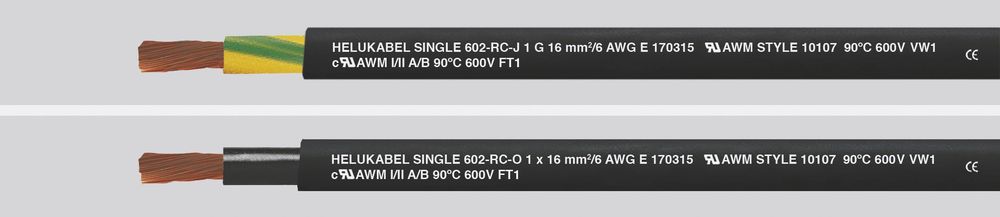

Helukabel 69615 HELU UL/CSA Single 602-RC 1G120qmm (4/0AWG) Black Single Core Cable

Technical data:

Special PVC core cable in accordance with UL Style 10107 and CSA AWM I/II AB, core in accordance with DIN VDE 0285-525-2-31/ DIN EN 50525-2-31 (except 300 mm²)
Temperature range moving -5°C to +90°C fixed -40°C to +90°C
Permissible operating temperature on the conductor +90°C
Nominal voltage VDE U0/U 600/1000 V UL/CSA 600 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance min. 20 MOhm x km
Minimum bending radius moving 7.5x cable Ø fixed 3x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper strand, super-fine wire in accordance with DIN VDE 0295 Cl.6, Sp.4, BS 6360 cl.6 or IEC 60228 cl.6, but for 185 mm² to 300 mm² reduced single wire Ø max. 0.30 mm
Core insulation made of special PVC according to class 43, 90°C in accordance with UL Std.1581 Color black or green-yellow
Outer sheath made of special PVC compound type YM5 in accordance with DIN VDE 0207 Part 5 and class 43, 90°C in accordance with UL Std.1581
Sheath color: black (RAL 9005)
with meter marking
Properties:
Resistant to mineral and synthetic oils and cooling lubricants.
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting.
Tests:
PVC self-extinguishing and flame-retardant in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (corresponds to DIN VDE 0472 Part 804 test type B), UL VW-1, CSA FT1
in accordance with UL Style 10107/UL Std.1581, CSA C22.2 No 210
Notes:
shielded analogue type: Single 602-RC-CY-J / -O
Use:
As a highly flexible special drag chain core cable in dry and damp rooms with free movement without tensile stress and without forced movement control. This two-standard core cable is primarily used in export-oriented mechanical engineering for frequent lifting and bending stress on permanently moving machine parts in robot technology. For applications that go beyond standard solutions (e.g. composting plants or high-bay conveyor systems with extremely high travel speeds, etc.), we recommend that you use our specially developed questionnaire for energy chain systems. For further application parameters, see the selection table: Cables for energy chain chains in the 'Technical information' chapter. For use in energy chain chains, please observe the installation instructions. RC = Robotics Cable CE = The product conforms to the Low Voltage Directive 2014/35/EU.
Standard lengths: 500 m, 1000 m
Technical changes reserved.
Type: 69615
