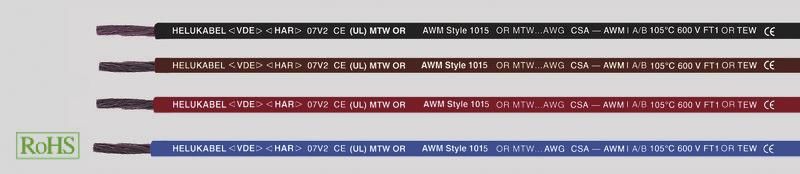

Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring
|
1,25 EUR |
|||||||||||
|
incl. 0,32 EUR copper surcharge ( 1,49 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 298234 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 64155 | ||||||||||
| UPC/EAN: | 4060892191008 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 64155:
Technical data:
PVC single core according to DIN VDE 0285-525-2-31/ DIN EN 50525-2-31, UL Std.1063, UL Style 10269 (thereby extending Style 1015) and CSA-TEW or CSA-AWM IA/BTemperature range H05V2-K / H07V2-K moving +5°C to +90°C fixed -40°C to +90°C UL (AWM) -40°C to +105°C UL (MTW) -40°C to +90°C CSA (TEW) -40°C to +105°C Nominal voltage
up to 1 mm² H05V2-K U0/U 300/500 V from 1.5 mm² H07V2-K U0/U 450/750 V UL (AWM) 1000 V (AC) UL (AWM) 1250 V (DC) UL (MTW) 600 V CSA (TEW) 600 V
Test voltage H05V2-K = 2000 V H07V2-K = 2500 V Test
voltages (Spark Test) 0.5 mm² = 5 kV = 0.75 mm² = 6 kV
Insulation resistance min. 20 MOhm x km
Minimum bending radius fixed for core Ø: = 8 mm: 4x core Ø > 8-12 mm: 5x core Ø > 12 mm: 6x core Ø
Structure:
Bare copper wire, finely stranded in accordance with DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5, in accordance with UL Std.758
Core insulation made of PVC Mixture type TI3 according to DIN VDE 0207-363-3 / DIN EN 50363-3 CSA-C 22.2 No. 210 tab.12 class H and class 43 according to UL Std. 1581
Core identification according to DIN VDE 0293
Properties:
The materials used in production are silicone and cadmium-free and free from substances that impair the wetting properties of paint
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (corresponds to DIN VDE 0472 Part 804 test type B), UL VW-1, CSA FT1
Use:
Five-way standardized wiring cable designed for export-oriented plant and machine builders. Thanks to the HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire approval, economical storage and simplified parts lists are possible. CE = The product conforms to the Low Voltage Directive 2014/35/EU.
Standard lengths: 100 m, 152 m, 305 m, 500 m, 1000 m.
Technical changes reserved.
Type: FÜNFNORM H07 V2-K 4/
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring?
The article Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 64155 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring always at the best possible price. We can give you a discount of 2% on Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring we can offer you a price of 1,24 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 64155 HELU FIVE STANDARD H07 V2-K 4 / AWG12 SCHW Five, black 100m Ring via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
