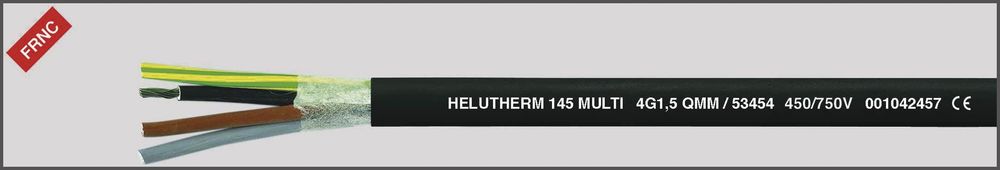

HELU HELUTHERM® 145 MULTI HELUKABEL PVCHELUTHERM 145 MULTI 5G1,5mm²

Technical data:

Temperature-resistant and halogen-free connection and control cable
Temperature range moving -35°C to +120°C fixed -55°C to +145°C in the event of a short circuit +250°C
Nominal voltage up to 1 mm² U0/U 300/500 V from 1.5 mm² U0/U 450/750 V for fixed and protected installation from 1.5 mm² U0/U 600/1000 V
Test voltage 3000 V
Minimum bending radius moving 8x cable Ø fixed 4x cable Ø
Fire load values Current
carrying capacity
Approval Germanischer Lloyd
Structure:
Tinned copper wire, in accordance with DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation: cross-linked polyolefin copolymer
Core identification in accordance with DIN VDE 0293-308 with white numbering
1-core version - core colour SW or GN-GE
Cores twisted in layers with optimum lay lengths
Fleece wrapping
Outer jacket: cross-linked polyolefin copolymer
Jacket colour: black with meter marking
Properties:
Reduced flame propagation
Good abrasion and notch resistance
Good weather resistance
Resistant to UV rays and ozone
Resistant to melting, even when in contact with a soldering iron at temperatures of 300°C to 380°C
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
Fire test according to DIN VDE 0482-332-3-22, DIN EN 60332-3-22, IEC 60332-3-22, BS 4066 Part 3
Fire test according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Halogen-free according to DIN VDE 0482-754-1, DIN EN 60754-1, IEC 60754-1
Corrosivity of combustion gases according to DIN VDE 0482-754-2, DIN EN 60754-2, IEC 60754-2
Smoke density according to DIN VDE 0482 Part 1034-1+2, DIN EN 61034-1+2, IEC 61034-1+2, BS 7622 Part 1+2
Notes:
shielded analogue type: HELUTHERM 145 MULTI-C
Use:
These networked and temperature-resistant connection and control cables with improved fire performance are used for connecting lights, heating devices, electrical machines, switchgear and distributors. The excellent temperature resistance also results in a very long service life. These cables have good weather resistance, such as temperature, humidity, ozone and UV resistance, and are mainly used for traffic systems or outdoors. In the event of a fire, when these halogen-free cables burn, only little smoke is produced, no corrosive gases are produced and the low fire load means that the risk of toxic fire gases is significantly lower. Consequential damage to control and monitoring systems and the concrete and steel structure of buildings and systems is thus reduced. The high temperature load can sometimes make it possible to reduce the conductor cross-section, thus saving space and weight. These connection and control cables make a significant contribution to safety and the environment.
Standard lengths: 100 m, 500 m, 1000 m
Subject to technical changes.
Type: HELUTHERM® 145 MULTI

The item price shown refers to 100 meters Helukabel 53455-100
