Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free
|
49,28 EUR |
|||||||||||
|
incl. 8,69 EUR copper surcharge ( 58,64 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 282446 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 46505-100 | ||||||||||
| UPC/EAN: | 4060892249440 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 46505-100:
Technical data:
Special silicone single cores with increased heat resistance based on DIN VDE 0250 Part 1 and Part 502Temperature range -60°C to +180°C (briefly +220°C)
Limit temperature on the conductor during operation +180°C
Nominal voltage U0/U 300/500 V
Test voltage 2000 V
Breakdown voltage min. 5000 V
Minimum bending radius 15x core Ø (SiD only for fixed installation)
Radiation resistance up to 20 x 106 cJ/kg (up to 20 Mrad)

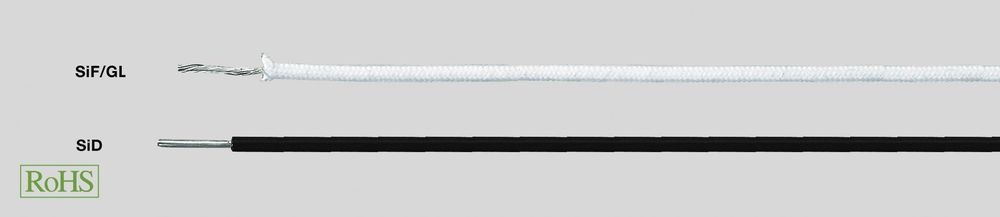

Structure: Type SiF/GL
Cu strand tinned, from 0.5 mm² according to DIN VDE 0295 cl.5, fine-stranded, BS 6360 cl.5, IEC 60228 cl.5
Conductor structure at: 0.25 mm² = 14x0.15 mm
Silicone wire insulation Glass silk braiding
Type SiD
Tinned copper conductor, single-wire
Silicone wire insulation Type SiD/GL
Tinned copper conductor, single-wire Silicone wire
insulation Glass silk braiding Properties: Resistant to high molecular weight oils, vegetable and animal fats, alcohols, plasticizers and clophenes, diluted acids, alkalis and salt solutions, oxidizing agents, tropical influences, sea water, oxygen, ozone, high flash points. If installed permanently, only use in open, ventilated pipe systems or ducts. Otherwise, the mechanical properties of silicone are reduced in the absence of air in combination with temperatures above 90°C. Tests Corrosiveness of combustion gases (free from halogens) in accordance with DIN VDE 0482 Part 267, DIN EN 50267-2-2, IEC 60754-2 (corresponds to DIN VDE 0472 Part 813) Burning behavior no fire propagation in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (corresponds to DIN VDE 0472 Part 804 test type B) Use: As special high or low temperature resistant single cores. Mainly used in iron and steel works, rolling mills, foundries, aircraft and shipbuilding, cement, glass and ceramics factories. They are halogen free and are particularly suitable for use in power plants. Standard lengths: 100 m Subject to technical changes.
Type: SiD 1X1 QMM WEISS
The item price shown refers to 100 meters Helukabel 46505-100
Questions & answers
What is the delivery time of Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free?
The article Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 46505-100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free always at the best possible price. We can give you a discount of 2% on Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free we can offer you a price of 47,45 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Helukabel 46505-100 Helu SiD 1X1 QMM WHITE silicone Einzelade white, halogen-free is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
