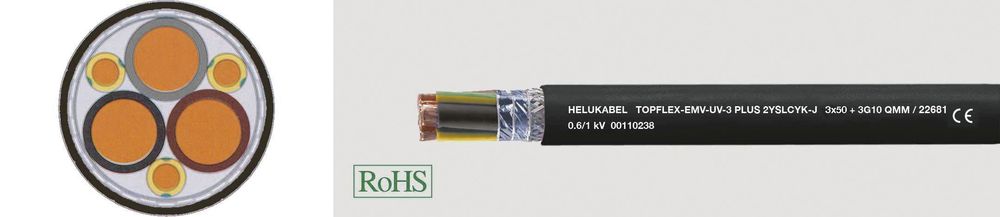

Helukabel 22678 HELU TOPFLEX EMC UV 3PLUS 2YSLCYK-, 3x16 + 3G2,5 QMM

Technical data:

Special motor connection cable for frequency converters based on DIN VDE 0250
Temperature range when moving -5°C to +70°C when fixed -40°C to +70°C
Nominal voltage U0/U 600/1000 V
Maximum permissible Operating voltage single-phase and three-phase current 700/1200 V DC operation 900/1800 V
Test voltage 4000 V
Coupling resistance depending on conductor cross-section max. 250 Ohm/km
Minimum bending radius moving for cable Ø: up to 12 mm: 10x cable Ø > 12 mm: 15x cable Ø fixed installation 4x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper wire, according to DIN VDE 0295 cl.5, fine-stranded, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of polyethylene (PE)
Core marking SW, BR, GR
Protective conductor GN-GE (divided into thirds)
3+3-core structure
Cores twisted concentrically in layers
1. Shielding with special aluminum foil 2. Shielding braid made of tinned copper wires, coverage approx. 85%
Outer jacket made of special PVC
Jacket color: black (RAL 9005)
with meter marking
Properties:
Low operating capacitance
Low coupling resistance results in good electromagnetic compatibility
The optimal shielding enables interference-free operation of frequency converters
The 3 PLUS design variant has a symmetrical 3-core design that is even better in terms of EMC properties than the 4-core versions. The protective conductor divided into thirds is evenly stranded in the gussets. This enables a very concentric design.
The minimum cross-section of 0.75 mm² complies with the requirements of DIN EN 60204 Part 1
UV-resistant
For outdoor use
This shielded motor connection cable with low operating capacity of the individual wires due to special PE wire insulation and low shielding capacity enables a lower-loss power transmission compared to PVC connection cables
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (corresponds to DIN VDE 0472 Part 804 test type B)
Meets EMC requirements according to EN 55011 or DIN VDE 0875 Part 11
Notes:
Current carrying capacity for continuous operation up to 30°C ambient temperature. For different ambient temperatures, the conversion factors and the specifications in DIN VDE 0298 Part 4 apply.
Use:
As a connection and connecting cable for medium mechanical stress with fixed installation and occasional free movement in dry, damp and wet rooms and outdoors, direct burial possible from 3x16+3G2.5 mm². Used in the automotive industry, food industry, environmental technology, packaging industry, chemical industry. EMC = Electromagnetic compatibility To optimize the EMC properties, we recommend a large-area all-round contact on both sides of the copper braid. CE = The product conforms to the Low Voltage Directive 2014/35/EU.
Standard lengths: 500 m, 1000 m
Subject to technical changes.
