Helukabel 22618

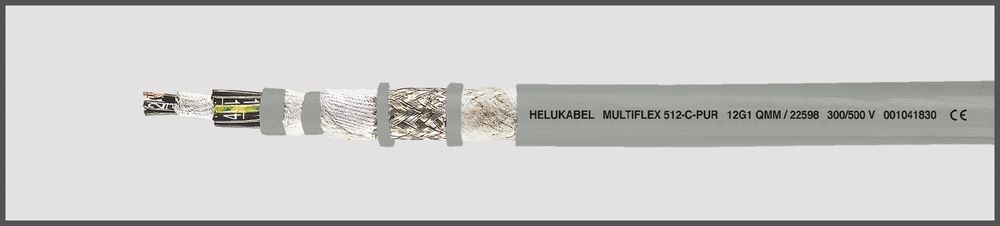

HELU MULTIFLEX 512®-C-PUR 7G2.5qmm gray drag chain cable

Technical data:

Special drag chain cable for extreme mechanical stresses in accordance with DIN VDE 0285-525-2-21 / DIN EN 50525-2-21
Temperature range moving -30°C to +80°C stationary -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 3000 V
Insulation resistance min. 100 MOhm x km
Minimum bending radius moving 7.5x cable Ø stationary 4x cable Ø
Alternating bending test tested with approx. 10 million alternating bending cycles
Radiation resistance up to 50x106 cJ/kg (up to 50 Mrad)
Coupling resistance max. 250 Ohm/km
Structure:
Bare copper wire, super-fine wire in accordance with DIN VDE 0295 Cl.6, Sp.4, BS 6360 cl.6 or IEC 60228 cl.6
Core insulation made of special PP
Core identification Black cores with continuous white numbering
Cores stranded in layers, with optimally coordinated lay lengths
Special protective wrapping over each stranding layer
TPE inner jacket, halogen-free
Special wrapping
Shielding made of tinned copper braid, coverage approx. 85%
Wrapping made of special fleece (from 4 mm² without protective wrapping over the outer layer)
Outer jacket made of special full polyurethane TMPU, in accordance with DIN VDE 0207-363-10-2 / DIN EN 50363-10-2
Jacket color: gray (RAL 7001), with matt surface
with meter marking
Properties:
Very good oil resistance
Guarantees continuous use in multi-shift operation with extremely high bending stresses
Low adhesion
Very high resistance to mechanical stress
Very good alternating bending strength
Longer service life due to low frictional resistance of the PP-insulated cores that are stranded together
High tear, Abrasion and impact resistance even at low temperatures
Resistant to weathering, ozone, UV rays, solvents, acids and alkalis, hydraulic fluids, hydrolysis
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Notes:
'Cleanroom qualified\lashunshielded analogue type: MULTIFLEX 512-PUR
Use:
These shielded special drag chain cables also offer application possibilities where external high-frequency influences disrupt the pulse transmission and are used for permanently flexible loads in machine and tool construction, in robot technology and on permanently moving machine parts, for continuous use in multi-shift operation. With free movement without tensile stress and without forced movement control, it has proven itself convincingly in drag chain use. It is a highly flexible control cable developed according to the latest state of the art, with slippery PP core insulation and a cut-resistant and low-adhesion PUR outer jacket that guarantees optimum service life and very high cost-effectiveness. For applications that go beyond standard solutions (e.g. in composting plants or high-bay conveyor systems with extremely high travel speeds, etc.), we recommend that you use our specially developed questionnaire for energy supply systems. For further application parameters, see the selection table: Cables for energy supply chains in the 'Technical information' chapter. For use in energy supply chains, please observe the assembly instructions. EMC = Electromagnetic Compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area.
Standard lengths: 500 m, 1000 m
Subject to technical changes.
Type: 22618
