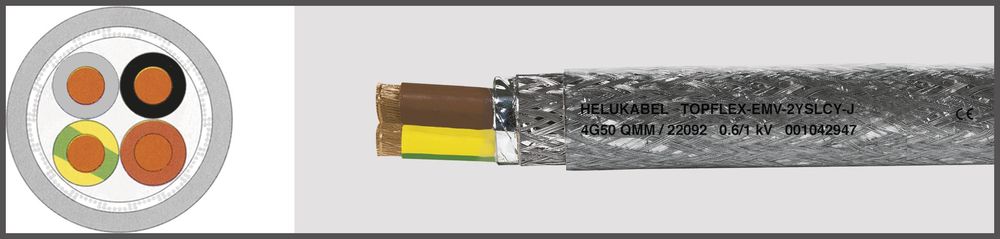

Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable
|
66,98 EUR |
|||||||||||
|
incl. 20,03 EUR copper surcharge ( 79,71 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 632328 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 22092 | ||||||||||
| UPC/EAN: | 4060892149658 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 22092:
Technical data:
Special motor connection cable for frequency converters in accordance with DIN VDE 0250Temperature range when moving +5°C to +70°C when fixed -40°C to +70°C
Nominal voltage U0/U 600/1000 V
Maximum permissible Operating voltage single-phase and three-phase current 700/1200 V Direct current operation 900/1800 V
Test voltage 4000 V
Coupling resistance depending on conductor cross-section max. 250 Ohm/km
Minimum bending radius moving for cable Ø: up to 12 mm 10x cable Ø > 12 mm 15x cable Ø fixed installation 4x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Construction:
Bare copper strand, in accordance with DIN VDE 0295 cl.5, finely stranded, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of polyethylene (PE)
Core identification BR, SW, GR
Cores twisted concentrically in layers
1. Shielding with special aluminum foil 2. Shielding braid made of tinned copper wires, covering approx. 85%
outer jacket made of special PVC
Jacket color: transparent with meter marking
Properties:
Low operating capacitance
Low coupling resistance results in good electromagnetic compatibility
This shielded motor connection cable with low operating capacitance of the individual wires due to special PE wire insulation and low shielding capacitance enables lower-loss power transmission compared to PVC connection cables
The optimal shielding enables interference-free operation of frequency converters
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (corresponds to DIN VDE 0472 Part 804 test type B)
Meets EMC requirements according to EN 55011 or DIN VDE 0875 Part 11
Notes:
Current carrying capacity in continuous operation up to 30°C Ambient temperature. If the ambient temperature differs, the conversion factors and the specifications in DIN VDE 0298 Part 4 apply.
Use:
As a connecting cable for medium mechanical stress when fixed and occasionally moved freely in dry, damp and wet rooms, but not outdoors. Used in the automotive industry, food industry, environmental technology, packaging industry, chemical industry. EMC = Electromagnetic compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area all around.
Standard lengths: 500 m, 1000 m
Technical changes reserved.
Type: TF-EMV-2YSLCY-J 4G50
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable ?
The article Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 22092 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable always at the best possible price. We can give you a discount of 2% on Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable we can offer you a price of 66,28 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 22092 HELU TF EMC 2YSLCY-J 4G50, motor connecting cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
