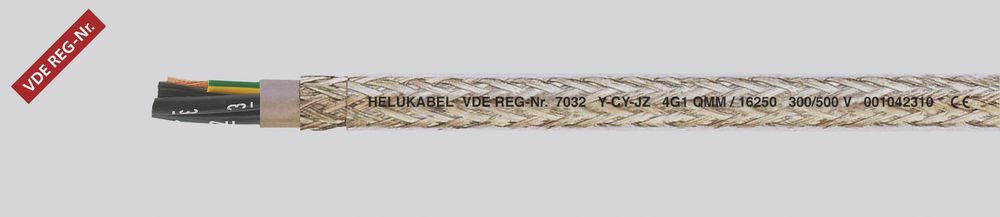

HELU HELUKABEL PVC-hose cable Y-CY4G50 mm² Standard length: 500 M

Technical data:

Special PVC hose cable based on DIN VDE 0285-525-2-51 / DIN EN 50525-2-51
Temperature range moving -15°C to +80°C stationary -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Operating capacity varies depending on conductor cross-section for 0.5 to 2.5 mm²: Core/core approx. 150 nF/km Core/shield approx. 270 nF/km
Coupling resistance max. 250 Ohm/km
Minimum bending radius moving 10x cable Ø stationary 5x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper wire, in accordance with DIN VDE 0295 Cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of special PVC
Core identification according to DIN VDE 0293 Black cores with continuous white numbering
Cores stranded in layers with optimal lay lengths
Inner jacket made of PVC, grey
Shielding braid made of tinned copper wires, coverage approx. 85%
Outer jacket made of special PVC
Jacket color: transparent with meter marking
Properties:
Largely oil-resistant, oil/chemical resistance
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Notes:
Unshielded analogue type: JZ-500
Use:
For medium mechanical stress for flexible application with free movement without tensile stress and without forced movement in dry rooms, but not outdoors, as a control cable in control and regulation technology, in tool and machine construction, in conveyor systems and production lines, in computer systems, and as a signal cable in electronics. The high shielding density ensures interference-free transmission of signals and impulses. The applied PVC inner jacket increases the mechanical load capacity of the cable. The ideal interference-protected control cable for the above applications. The applied clear, transparent PVC outer jacket also makes the tinned copper braid look effective. EMC = Electromagnetic Compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area all around.
Standard lengths: 500 m, 1000 m
Subject to technical changes.
Type: Y-CY-JZ

The item price shown refers to 500 meters Helukabel 16465-500
