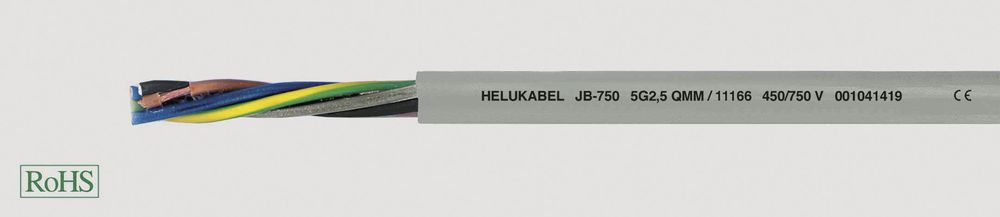

Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring
|
5,84 EUR |
|||||||||||
|
incl. 1,74 EUR copper surcharge ( 6,95 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 566890 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 11123 | ||||||||||
| UPC/EAN: | 4060892006630 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 11123:
Technical data:
Special PVC hose cable based on DIN VDE 0285-525-2-11 / DIN EN 50525-2-11 and IEC 60227-5Temperature range moving -15°C to +80°C fixed -40°C to +80°C
Nominal voltage U0/U 450/750 V fixed, protected U0/U 600/1000 V
Test voltage 4000 V
Breakdown voltage min. 8000 V
Insulation resistance min. 20 MOhm x km
Minimum bending radius moving 7.5x cable Ø fixed 4x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper wire, in accordance with DIN VDE 0295 class 5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of special PVC
Core identification according to JB/OB colour code
Cores twisted in layers with optimum lay lengths
Outer jacket made of special PVC
Jacket colour grey (RAL 7001) with meter marking
Properties:
Largely oil-resistant, oil/chemical resistance
The materials used in production are free from silicone and cadmium and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
Notes:
'Cleanroom qualified\lashshielded analogue type: Y-CY-JB
Use:
Is used for medium mechanical stress for flexible application with free movement without tensile stress and without forced movement in dry, damp and wet rooms, but not outdoors, as a measuring, monitoring and control cable on machine tools, assembly lines and conveyor belts, Production lines, in plant engineering, in heating and air conditioning technology, in power plants, in steel and steel rolling mills.
Standard lengths: 500 m, 1000 m.
Subject to technical changes.
Type: HELJB5X4
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring?
The article Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 11123 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring always at the best possible price. We can give you a discount of 2% on Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring we can offer you a price of 5,78 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 11123 Helu JB-750 5x4qmm , PVC control cable 100m ring via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
