HellermannTyton 435-01652
Hellermann gel cable fitting, 6x05-6x1,5 content_copy

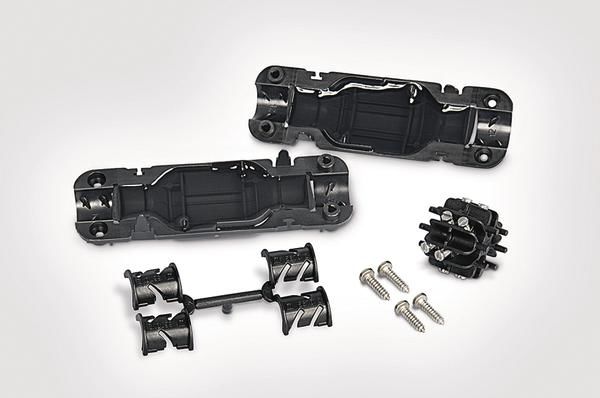

Moulded shell: two-part, black, re-openable, including strain relief, flame retardant (UL94 V0), protection class IP68. Filled with RELICON gel, highly insulating, no labeling required. Easy to assemble. With connector block. Unlimited storage life. System tested according to DIN EN 60998-2-1:2004. Voltage class 250V. Relilight gel cable fittings were developed for lighting installations, particularly LED lighting. Naturally, the high requirements of energy technology are met. The system test according to EN 60998-2-1:2004, the protection class IP68 and flame-retardant moulded shells confirm this. Relilight gel cable fittings are used for connections, single and double branches depending on the terminal type. They are used with plastic cables and lines made of PVC, PE, EPR and VPE such as N(A)YY and NYM. The cable fitting filled with silicone-based gel provides insulation, sealing and mechanical protection in one step, thus significantly reducing the installation effort.Areas of application: In the low-voltage network as a connection or branch fitting for outdoor lighting. In installation ducts and indoor spaces, in the ground, outdoors and in water.
Type: 435-01652
