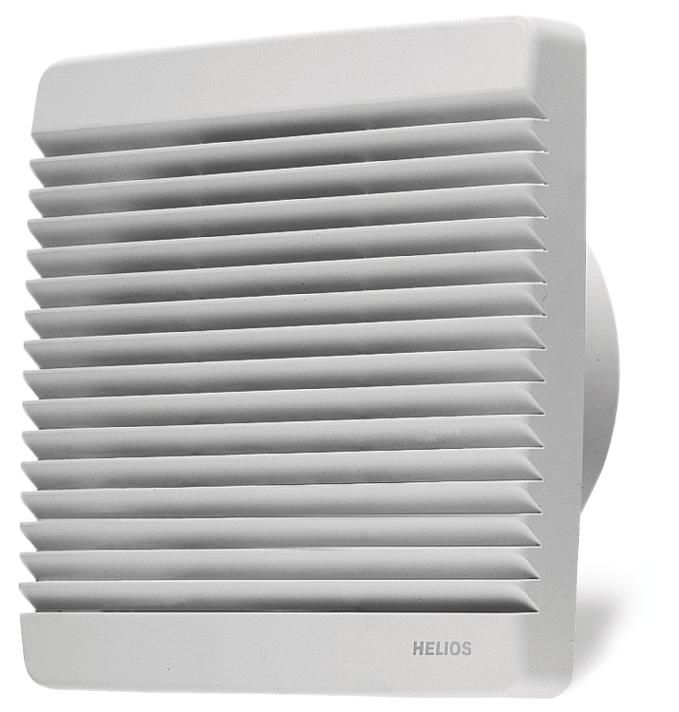

Helios Ventilatoren 957 Helios flush wall fan HV 200/4R, IP54, unimpeded air flow 450 m3 / h, 0
|
459,36 EUR |
|||||||||||
|
( 546,64 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 188336 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 957 | ||||||||||
| UPC/EAN: | 4010184009573 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 957:
HelioVent flush-
Flush-room fan for installation in
Walls, shafts and thin plates. One
settable for ventilation medium
to large rooms.
Plastic housing with an elegant, space-
side facade in alpine white. Facade
to cover the suction port by using
upwardly directed lamellae. For cleaning
in a water bath removed.
Strong high pressure impeller performance
Plastic with 7 blades, for high
Pressure and volume performance.
Single phase capacitor motor
closed design, maintenance-free, with
in the coil built-in thermal
overclock speed controllable by tension-
tion reduction, sealed, low-
poor ball bearing with long-term lubrication,
reversible.
Fan-data (default)
Vol.str. 0 Pa at 450 m3 / h
Vol.str. Betr.pkt. m3 / h
Max pressure 22 Pa increase
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium temperature 40 degC
Angle of 0 degrees
Operating time h
Speed ​​1360 1/min
aufgenomm. Power 0.03 kW
Weight 4.5 kg
Sound power 60 dB (A)
Sound pressure at 1 m 53 dB (A)
230 Volt
Current consumption 0.13 Amp
AC / AC W
Frequency 50 Hz
B insulation
Degree of protection IP 54
Explosion protection N
Temperature class
Make: Helios
Item No.: 957
Type: HV 200/4 R
______________________________________
Type: HV200/4R
