Helios Ventilatoren 9510-002 Helios duct fan SB200C, 0.1880 kW 1-phase 230V 50Hz
|
1.009,80 EUR |
|||||||||||
|
( 1.201,66 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 371879 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9510-002 | ||||||||||
| UPC/EAN: | 4010184095101 | ||||||||||
| Weight: | 4.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 9510-002:

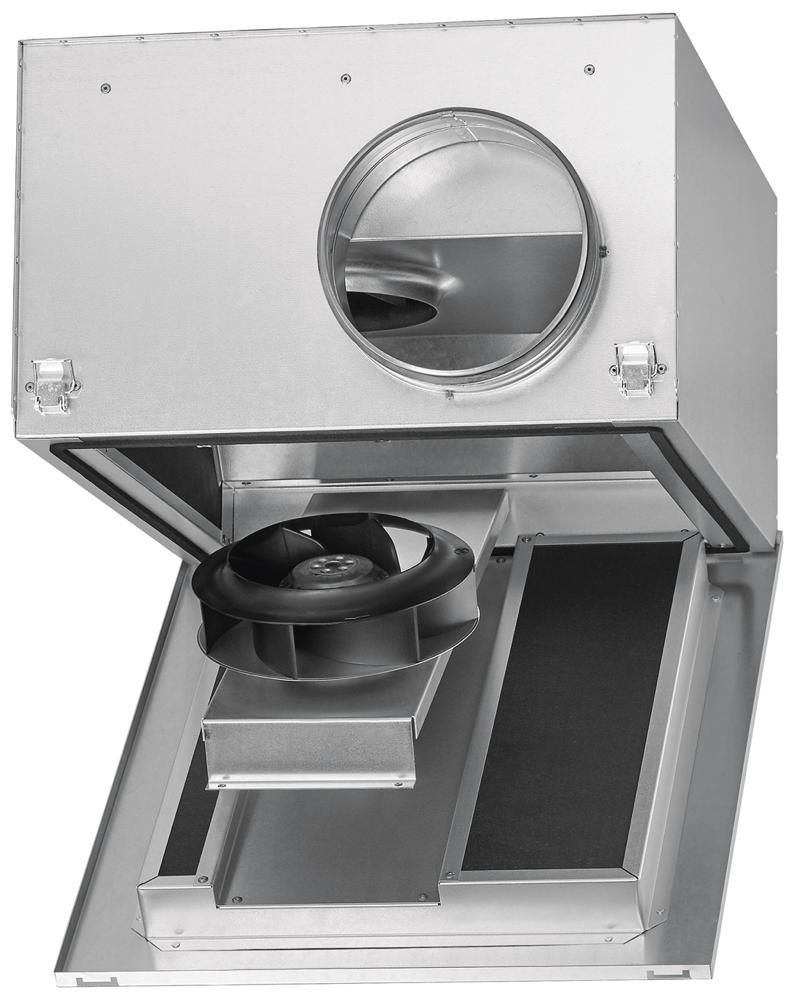

SilentBox duct fan, 1 PH
centrifugal duct fan with geräuschge-
dämpftem housing.
Housing made of galvanized sheet steel with
round hose connector on standard tubes from-
voted.Sound-absorbing perforated steel
inner lining with 50mm heavy
deposited mineral fiber board. Cover
removable. Fan housing and space-
spiral freely accessible. Engine and drive-
wheel pulled out.
drum wheel with high performance pre-
forward curved blades of galvanized
Steel, balancing quality G 6.3 according to VDI
2060th
Single-phase AC external rotor motor
closed design, maintenance-free,
Speed ​​by reducing voltage
controllable • Integral thermal contacts,
sealed, low noise ball bearing with
long life oil.
Fan-data (default)
Vol.str. 0 Pa at 670 m3 / h
Vol.str. Betr.pkt. m3 / h
Max Booster 410 Pa
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium Temperature 55 degree C
Angle of 0 degrees
Operating time h
Speed ​​1800 1/min
aufgenomm.Leistung 0,188 kW
Weight 15 kg
Sound power 63 dB (A)
LWa sound power spectrum in dB (A)
Associated freq = frequency in Hz
Freq 250 500 1000 2000 4000 8000
LW 58 58 53 54 50 39
230 Volt
Current consumption 0.83 Amp
AC / AC W
Frequency 50 Hz
B insulation
Degree of protection IP 44
Explosion protection N
Temperature class
Make: Helios
Item: 9510
Type: SB 200 C
______________________________________
Type: SB200C
