Helios Ventilatoren 8649 Helios ceiling fan white DVW140, D = 1400mm 65W 230V 1 phase 50Hz metal
|
211,86 EUR |
|||||||||||
|
( 252,11 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 276842 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 8649 | ||||||||||
| UPC/EAN: | 4010184086499 | ||||||||||
| Weight: | 7.75 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 8649:

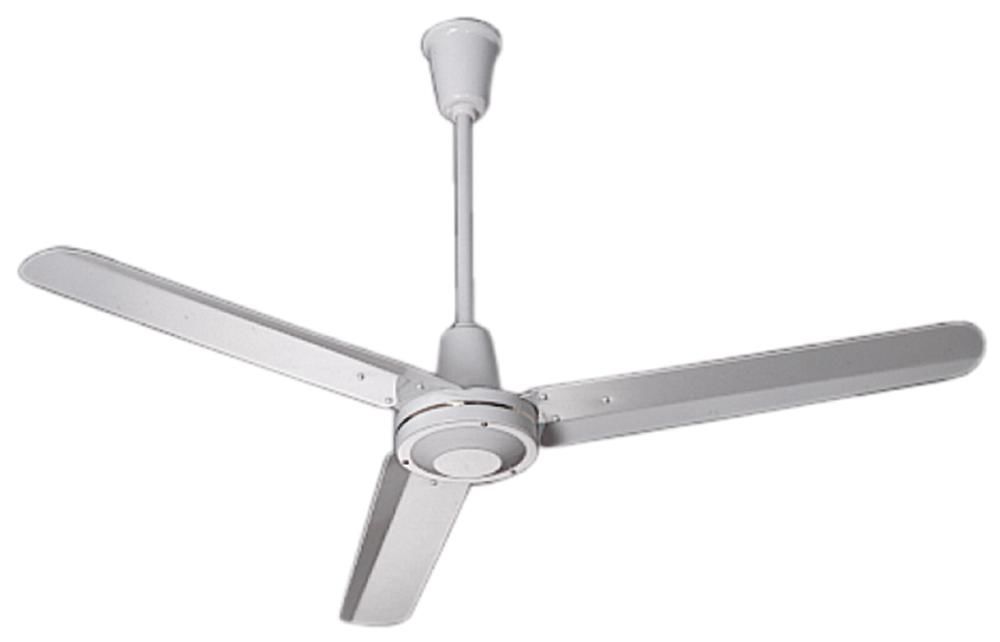

Ceiling Fan, Metal, White
Sturdy metal construction in classic
Design. Maintenance and funkstörfreier
enclosed motor designed for continuous
operating desinged, white enamel.
Anti-vibration suspension for
low vibration. Easy installation
through pre-delivery: there are
only the three impeller blades to-
screws. Variable suspension height by
Delivery of a short and a long
Pendant tube. Speed ​​controllable with 5 -
Step speed controller TSW 0.3 (acces-
sory). TUV GS approved. The accident
prevention regulations (UVV) provide mandatory
a minimum distance of 2.3 m from the foot-
floor to the lower edge of front wing.
Reversible airflow direction.
Flow toward the bottom
or through the ceiling fixed connection
or by reversing switch
(Accessories DSEL 2)
fixable. In reversing
(Air flow direction upwards)
Minimum starting voltage of
100 V is required.
Motor and impeller white enamel.
Anti-vibration mount for vi-
brationsarmen run. Variable suspension height
by delivery of a short and a
Long pendant tube.
Impeller with 3 blades made of metal, white
painted.
Single-phase AC external rotor motor
through voltage reduction on speed
controlled, closed design,
maintenance-free, sealed, low-noise
Ball bearing with long life oil.
Fan-data (default)
Vol.str. at 0 Pa m3 / h
Vol.str. Betr.pkt. m3 / h
Max 0 Pa pressure increase
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium Temperature degC
Angle of 0 degrees
Operating time h
Speed ​​270 1/min
aufgenomm. Power 0.065 kW
Weight 7.75 kg
Sound Power dB (A)
Sound pressure at 1 m dB (A)
230 Volt
Current consumption 0.3 Amp
AC / AC W
Frequency 50 Hz
B insulation
IP
Explosion protection N
Temperature class
Make: Helios
Item No.: 8649
Type: DVW 140
______________________________________
Type: DVW140
