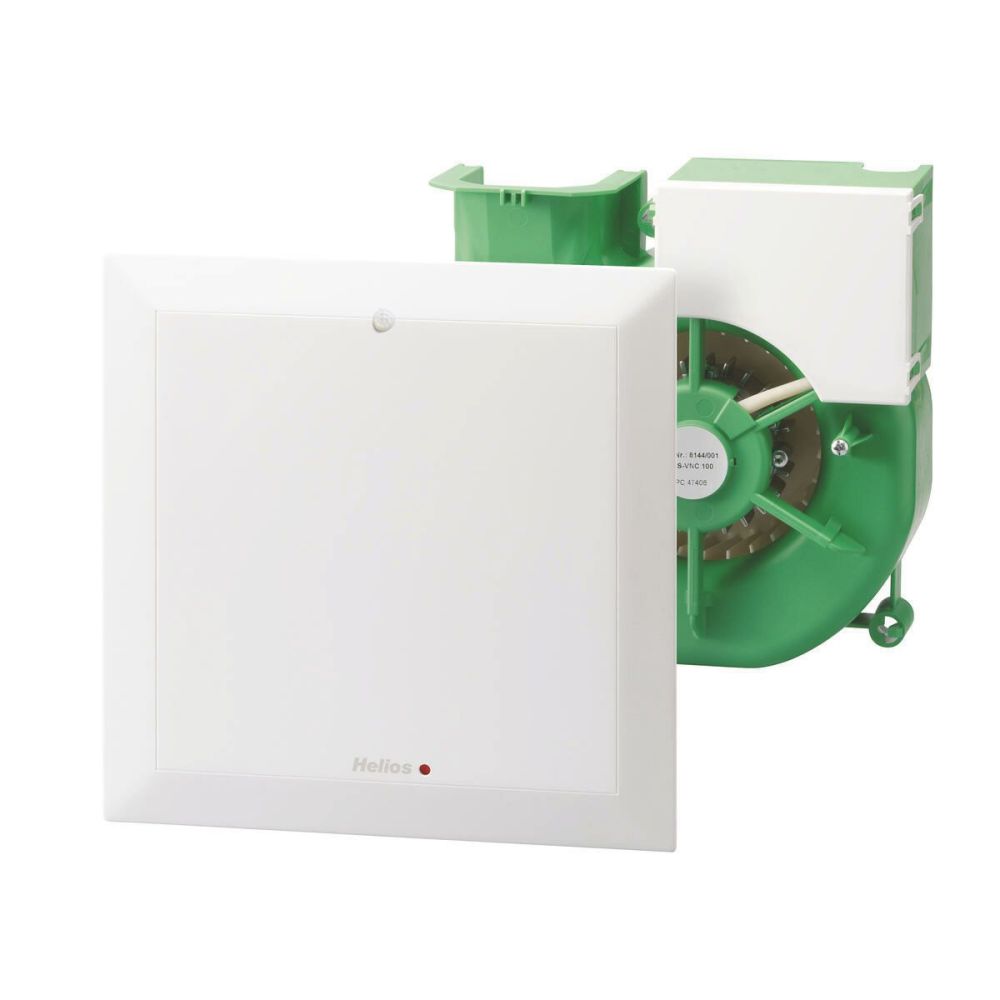

Helios Ventilatoren 8149 ELS-VP 60 fan insert with facade, run-down V=60 m³/h content_copy

The fan insert ELS-VP 60 from Helios Ventilatoren is a compact, presence-controlled fan for installation in wet rooms, particularly in zone 1, such as bathrooms or shower rooms. It features an integrated presence detector that automatically starts operation when someone enters the room, ensuring barrier-free, switch-independent ventilation. The run-on time is approximately 15 minutes, which continues to improve air quality even after leaving the room. The insert is delivered ready for operation and features a flat inner facade in alpine white, which blends discreetly into the room design. The ultraSilence® technology ensures particularly quiet operation, with a sound pressure level of approximately 35 dB(A) at an equivalent absorption area of 10 m². The sound power level is 39 dB(A), measured in combination with housing type ELS-GU and side discharge. The data refers to standards DIN 24163, DIN 24166, DIN 45635 and DIN 44974.

Applications

The ELS-VP 60 is intended for automatic, presence-controlled ventilation in wet rooms, particularly in zone 1, where increased humidity and possible water splashes occur. The protection class IP X5 ensures sufficient protection against splashing water, enabling installation in bathrooms or shower rooms. The integrated plug connection allows for easy electrical connection to the nearest distribution box without requiring an additional switch to be operated. This makes the insert particularly suitable for barrier-free apartments or facilities where manual operation is difficult.

Functions and Equipment in Detail

The fan insert is standard-equipped with a permanent filter, which improves air quality and extends the device's service life. A filter cleaning indicator informs the user when cleaning is required. The motor is maintenance-free, ball-bearing, and designed as an energy-saving motor. It operates at a supply voltage of 230 V~, 50 Hz and consumes approximately 18 W of power. The integrated plug connection enables simple installation without additional wiring. Protection class II without PE (double insulated) reduces the risk of electric shock and does not require grounding.

Technology Explained Simply

The ultraSilence® technology reduces noise emissions through optimized airflow and motor design. The sound power level of 39 dB(A) and the sound pressure level of 35 dB(A) are in the range perceived as quiet, especially in rooms with an equivalent absorption area of 10 m². The IP X5 protection class means the device is protected against splashing water from any direction, making it suitable for wet rooms. The integrated plug connection simplifies installation, as no additional cable connections are required. The run-on time of 15 minutes ensures that air is exchanged even after leaving the room, reducing humidity.

Compatibility and Accessories

The ELS-VP 60 is intended for use with housing type ELS-GU, under which conditions the noise emission and performance data were measured. The electrical supply is via NYM-O 2 x 1.5 mm². The connection type follows circuit diagram number SS-887.

Installation and Mounting

Installation is carried out by connecting to the nearest distribution box via the integrated plug connection. No switch operation is required. Mounting is typically done in the ceiling or wall, depending on the housing used. The facade is pre-mounted and finished in alpine white. The electrical supply must be installed in accordance with standards DIN 24163, DIN 24166, DIN 45635 and DIN 44974.

Operational Advantages

Operation starts automatically upon detection of a person in the room, eliminating the need for constant ventilation. The run-on time ensures sufficient dehumidification even after leaving the room. The integrated filter cleaning indicator enables targeted maintenance. Protection class II and IP X5 protection class increase safety and suitability for use in wet rooms. The ultraSilence® technology ensures quiet operation that does not affect room acoustics. The ready-to-operate delivery reduces installation time and simplifies the installation process.

General
Flow rate	60 m³/h
Response time	15 minutes
Power consumption	18 W
Sound pressure level	35 dB(A)
Sound performance level	39 dB(A)
Operating voltage	230 V~
Frequency	50 Hz
Degree of protection	IP X5
Protection class	II
Electrical supply connection	NYM-O 2 x 1,5 mm²
Connection	Integrated plug-in connection
Motor type	maintenance-free, ball-bearing energy-saving motor
Facade	flat, alpine white
Presence detector	Integrated
Filter	Permanent filter standard
Filter cleaning indicator	Integrated
Connection according to wiring diagram	SS-887
Application range	Zone 1 of wet rooms
Technology	ultraSilence®

---
