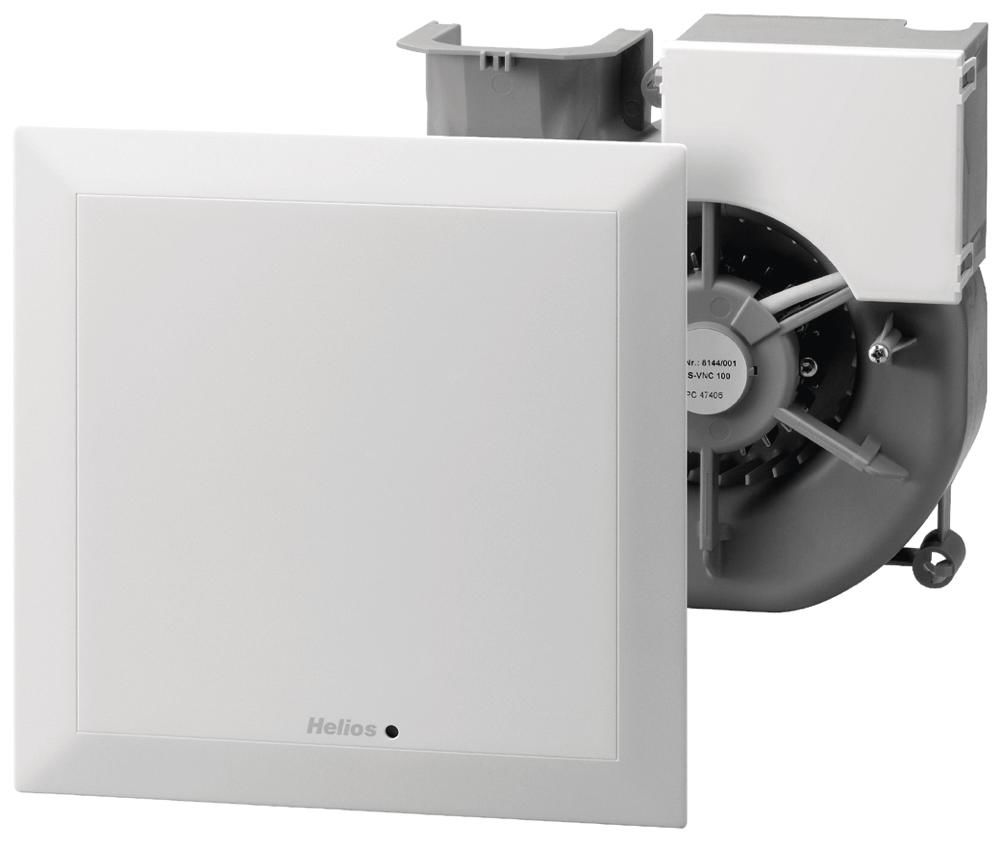

Helios Ventilatoren 8144 Helios ELS-VNC 100 Fan insert m., V = trailing facade 100cbm / h content_copy

Fan insert with 100 m3/h volume flow with codable run-on and interval operation. Start-up delay of 0 or 45 seconds, run-on time of 6, 10, 15 or 21 minutes and interval time of 4, 8, 12 or 24 hours selectable. Ready to use delivery with flat inner facade (alpine white) and ultraSilence® technology. With permanent filter and filter cleaning indicator as standard. Integrated plug connection for electrical connection. Protectively insulated, class II, IP X5. For installation in area 1 of wet rooms. Maintenance-free, ball-bearing energy-saving motor 230 V~, 50 Hz, 29 W. Sound power 51 dB (A), sound pressure 47 dB (A).* * with AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Information according to DIN 18017, T.3, edition 1990, item 6.2.4. Footnote 3. Area of application Automatic, periodic ventilation of rooms (also covering two-room ventilation) with irregular use, such as in hotels, holiday homes. Comfort solution in the private sector. Technical data Run-on time: 6, 10, 15, 21 Volume flow approx. m³/h: 100 Power consumption approx. watts: 29 Sound pressure level 1) approx. dB(A) with 10 m² equivalent absorption area: 47 Sound power level 1) LWA approx. dB(A): 51 Electrical connection: 230 V~, 50Hz Electrical supply cable in mm²: NYM-O 3 x 1.5, NYM-O 4 x 1.5* Protection class II without PE Connection according to circuit diagram no.: SS-882 All performance and noise information according to DIN 24163, DIN 24166, DIN 45635, DIN 44974 1) in combination with housing type ELS-GU, side discharge. * for deactivation of the automatic function.
Type: ELS-VNC 100
