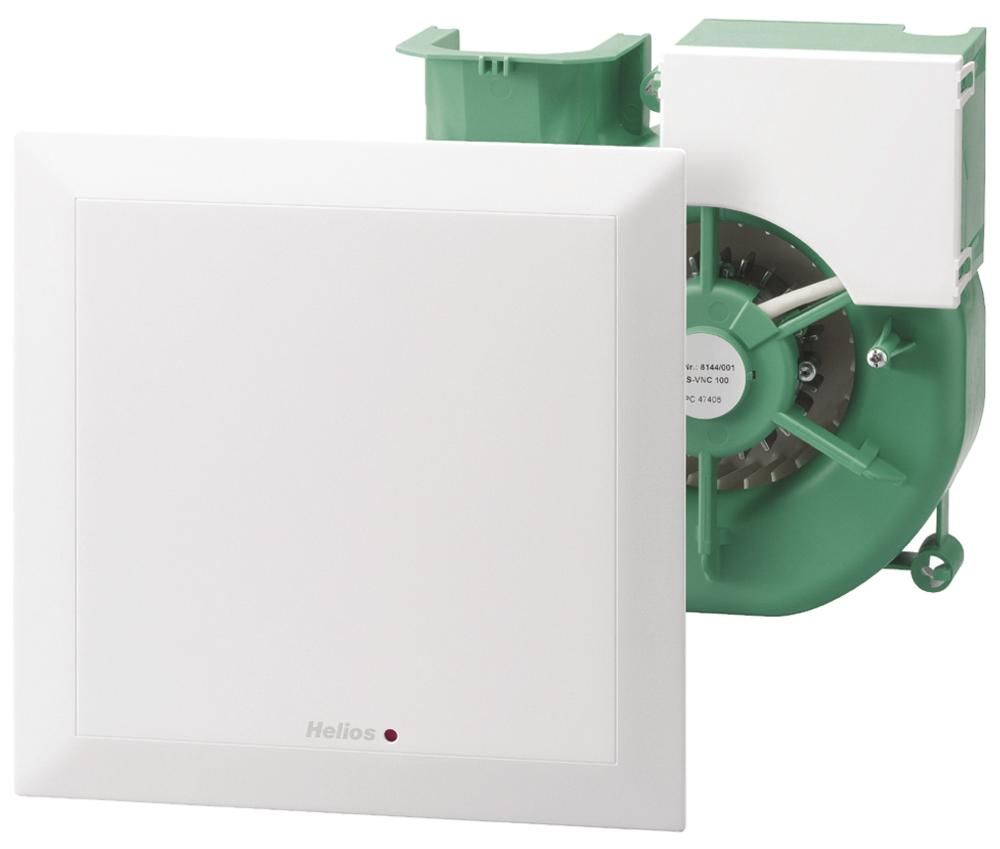

Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h

This image may differ from the desired article.

396,99 EUR

( 472,42 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

559288

Mfg Part No:

8136

UPC/EAN:

4010184081364

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
4	379,13 EUR
8	361,26 EUR
12	343,40 EUR
16	325,53 EUR

Further Ventilators from Helios Ventilatoren Further products in category Ventilators All products of Helios Ventilatoren

Product information for Helios Ventilatoren 8136:

Fan insert with 3 performance levels (100/60/35 m3/h) for demand and basic ventilation. Delivered ready for use with flat inner facade (alpine white) and ultraSilence® technology. With permanent filter and filter cleaning indicator as standard. Integrated plug connection for electrical connection. Protectively insulated, class II, IP X5. For installation in area 1 of wet rooms. Maintenance-free, ball-bearing energy-saving motor 230 V~, 50 Hz, 29/18 W. Sound power 51/39/30 dB (A), sound pressure 47/35/26 dB(A).* * with AL = 10 m2 equivalent absorption area in combination with housing type ELS-GU, side discharge. Information according to DIN 18017, T.3, edition 1990, section 6.2.4. Footnote 3. Area of application Comfortable thanks to 3 performance levels. For apartment kitchen or two-room ventilation. The medium or low power level can be connected for continuous operation and switched using DSEL2 (accessory). Manual control of all three stages using DSEL 3. Technical data Run-on time: - Volume flow approx. m³/h: 100/60/35 Power consumption approx. watts: 29/18/9 Switching pressure level 1) approx. dB(A) with 10 m² equivalent absorption area: 47/35/26 Sound power level 1) LWA approx. dB(A): 51/39/30 Electrical connection: 230 V~, 50Hz Electrical supply cable in mm²: NYM-O 4 x 1.5 Protection class II without PE Connection according to circuit diagram no.: SS-874 All performance and noise specifications according to DIN 24163, DIN 24166, DIN 45635, DIN 44974 1) in combination with housing type ELS-GU, side discharge.
Type: ELS-V 100/60/35

Questions & answers

What is the delivery time of Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h?

The article Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helios Ventilatoren 8136 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h always at the best possible price. We can give you a discount of 2% on Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h we can offer you a price of 379,13 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Helios Ventilatoren 8136 ELS V 100/60/35 fan tray, 3 power levels V = 100/60/35 m³ / h via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
