Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54
|
1.569,15 EUR |
|||||||||||
|
( 1.867,29 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 482136 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 6771 | ||||||||||
| UPC/EAN: | 4010184067719 | ||||||||||
| Weight: | 11.1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 6771:

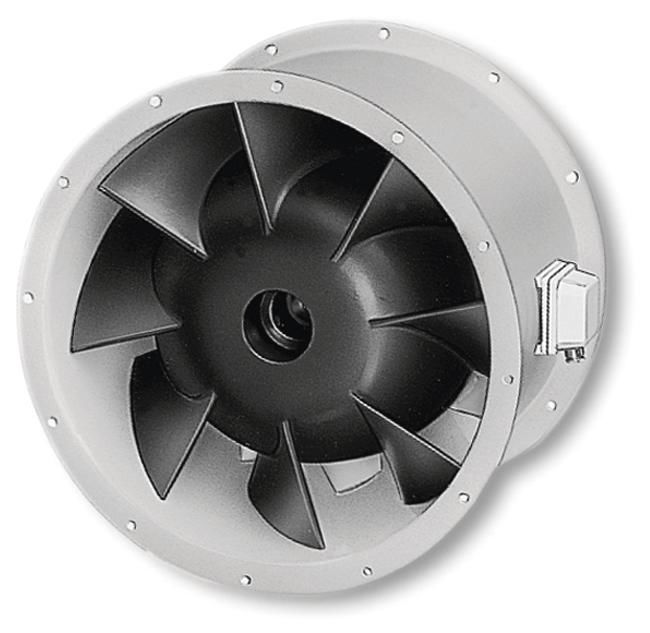

RADAX high pressure duct fan
High pressure duct fan with cylindrical
exchanger tube sleeve flanges on both sides,
directly driven.
Cylindrical tube made of galvanized steel
sheet, molded on both sides with
Flange hole pattern according to DIN 24155, be-
bautes vane.
Mixed flow impeller, eight spatially
curved blades made of thermoplastic,
Balancing quality G 6.3 according to VDI 2060
and ISO 1940.
Three-phase squirrel-cage motor with
Dahlander windings (pole-changing),
closed design, maintenance-free,
sealed, low noise ball bearing with
Long-term lubrication.
Fan-data (default)
Vol.str. 0 Pa at 1890 m3 / h
Vol.str. Betr.pkt. m3 / h
Max Booster 280 Pa
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium Temperature 60 degree C
Angle of 0 degrees
Operating time h
Speed ​​1450/2800 1/min
consumpt.Performance 0.07 / 0.3 kW
Weight 11.1 kg
Sound power 81 dB (A)
Sound pressure at 4m 61 dB (A) Voltage 400 Volt Current consumption 0.25 / 0.7 Amp
AC / AC D
Frequency 50 Hz
B insulation
Degree of protection IP 54
Explosion protection N
Temperature class
Make: Helios
Item: 6771
Type: 225/4/2 VARD TK
______________________________________
Type: VARD225/4/2
Questions & answers
What is the delivery time of Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54?
The article Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helios Ventilatoren 6771 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54 always at the best possible price. We can give you a discount of 2% on Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54 we can offer you a price of 1.498,54 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helios Ventilatoren 6771 Helios RADAX VAR VARD225/4/2, high pressure duct fan IP54 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
