Helios Ventilatoren 6659 Helios High pressure duct fan, VARW280/2TK RADAX VAR IP54
|
1.782,00 EUR |
|||||||||||
|
( 2.120,58 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 409941 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 6659 | ||||||||||
| UPC/EAN: | 4010184066590 | ||||||||||
| Weight: | 0.22 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 6659:

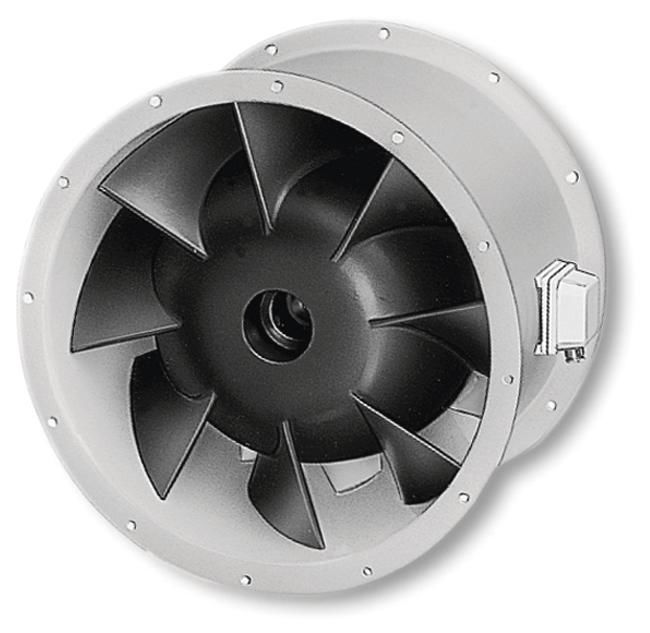

RADAX high pressure duct fan
High pressure duct fan with cylindrical
exchanger tube sleeve flanges on both sides,
directly driven.
Cylindrical tube made of galvanized steel
sheet, molded on both sides with
Flange hole pattern according to DIN 24155, be-
bautes vane.
Mixed flow impeller, eight spatially
curved blades made of thermoplastic,
Balancing quality G 6.3 according to VDI 2060
and ISO 1940.
Single phase capacitor motor
closed design, maintenance-free, with
in the coil built-in thermal
overclock speed controllable by tension-
tion reduction, sealed, low-
poor ball bearing with long-term lubrication,
not reversible.
Fan-data (default)
Vol.str. 0 Pa at 3550 m3 / h
Vol.str. Betr.pkt. m3 / h
Max Booster 430 Pa
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium temperature 40 degC
Angle of 0 degrees
Operating time h
Speed ​​2730 1/min
aufgenomm.Leistung 0.79 kW
Weight 18.7 kg
Sound power 88 dB (A)
LWa sound power spectrum in dB (A)
Associated freq = frequency in Hz
Freq 250 500 1000 2000 4000 8000
LW 69 80 83 83 79 70
230 Volt
Current consumption 4 / 4.5 Amp
AC / AC W
Frequency 50 Hz
B insulation
Degree of protection IP 54
Explosion protection N
Temperature class
Make: Helios
Item No.: 6659
Type: VARW 280/2 TK
______________________________________
Type: VARW280/2TK
