Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz

This image may differ from the desired article.

3.296,70 EUR

( 3.923,07 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

609852

Mfg Part No:

5521

UPC/EAN:

4010184055211

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
2	3.148,35 EUR
4	3.000,00 EUR
6	2.851,65 EUR
8	2.703,29 EUR

Further Ventilator-Accessories from Helios Ventilatoren Further products in category Ventilator-Accessories All products of Helios Ventilatoren

Product information for Helios Ventilatoren 5521:

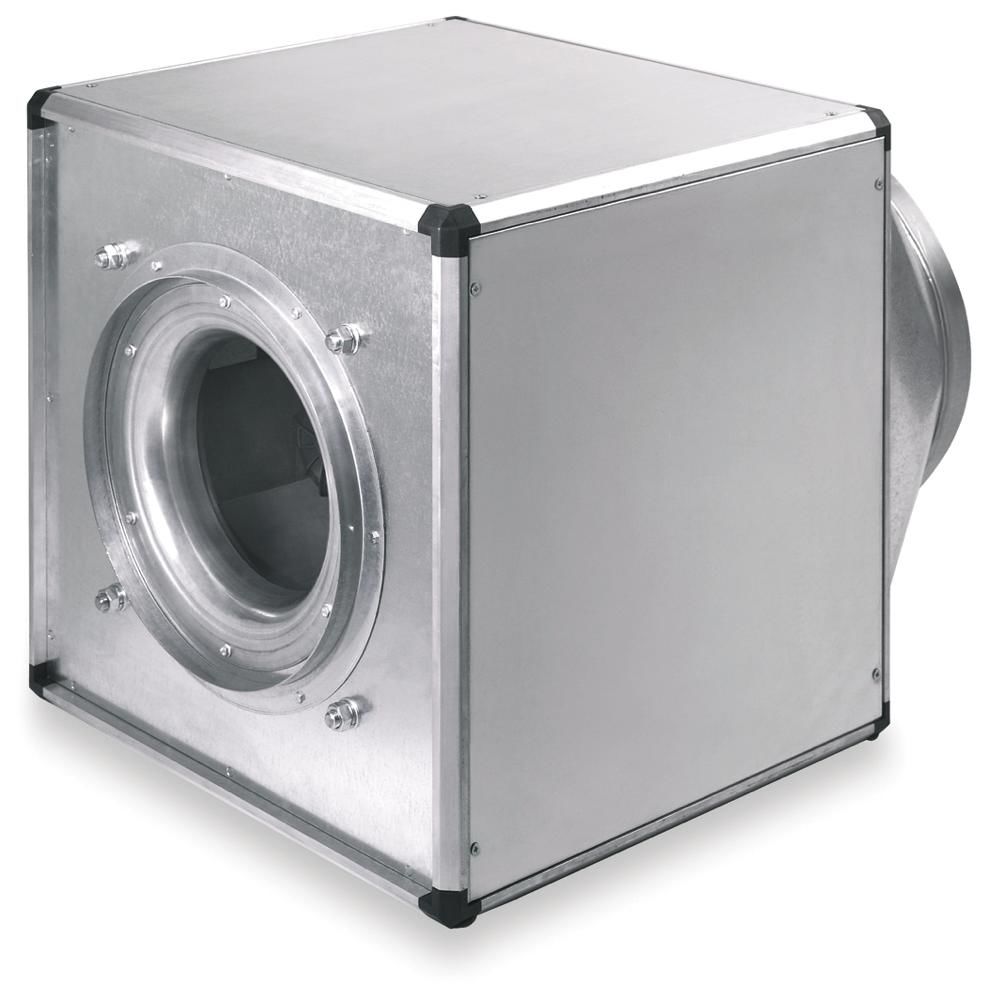

Cubic ventilation box with low-loss pipe connection nozzles on the pressure and suction side including flexible sleeves to prevent structure-borne noise and variably usable housing panels for optimal adaptation to structural conditions. Easy positioning thanks to standard crane hooks. Self-supporting housing frame construction made of aluminum hollow profiles. Double-walled, 20 mm thick side panels made of galvanized sheet steel, sound and heat insulated by lining with non-flammable mineral wool. The housing panels can be replaced as required with accessories such as weather protection grilles and condensate trays. Additional accessories, wall bracket and weather protection roof can be mounted inside and outside for any installation. High-performance radial impeller with backwards curved aluminum blades, directly driven. Vibration-free operation due to dynamic balancing together with the motor in accordance with quality level 6.3 according to DIN ISO 1940 T.1. Driven by three-phase external rotor motor, two-speed via star/delta connection, closed, maintenance-free design, speed can be controlled by voltage reduction or with Helios frequency converter with all-pole sine filter, built-in thermal contacts on terminal block, sealed, low-noise ball bearings with long-term lubrication. Mains connection on the terminal box integrated in the device (IP54).
Type: GBD 560/4/4

Questions & answers

What is the delivery time of Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz?

The article Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helios Ventilatoren 5521 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz always at the best possible price. We can give you a discount of 2% on Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz we can offer you a price of 3.148,35 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Helios Apparatebau GBD 560/4/4 - Gigabox fitting cuffs adjustable 3 PH 400V 50Hz Helios Ventilatoren 5521 GBD 560/4/4 Gigabox including fitting, cuffs, adjustable 3-PH 400V-50Hz	3.296,70 EUR
