Helios Ventilatoren 1004 Helios High performance axial fan 1ph, HWW315/4TK m grid 0.1320kW 230V 50Hz

Your rating:
Average rating
Rating for Helios Ventilatoren 1004 Helios High performance axial fan 1ph, HWW315/4TK m grid 0.1320kW 230V 50Hz
( 4.5 / 5 ) 22 ratings
Helios Ventilatoren 1004

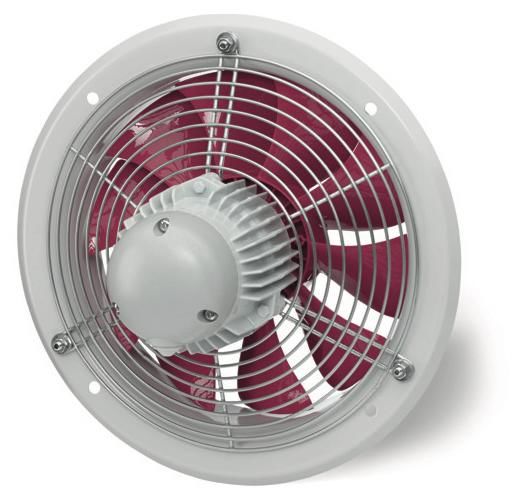

This image may differ from the desired article.
1.163,25 EUR
( 1.384,27 EUR incl. VAT )
2025-09-13Delivery time on requestinfo_outline
1x Helios Ventilatoren 1004 Helios High performance axial fan 1ph, HWW315/4TK m grid 0.1320kW 230V 50Hz
Lieske Part No.:315403
Mfg Part No: 1004
UPC/EAN: 4010184010043
Weight:6.75 kg
Graduated prices net
From piecesPrice per pieces
31.110,90 EUR
61.058,56 EUR
91.006,21 EUR
12953,87 EUR

Product information for Helios Ventilatoren 1004:

HWW 315/4
Axial high-performance fan
Axial high-performance fan conce-
mounting ring, Inlet, directly driven
ben.
Wall ring made of galvanized sheet steel,
two coats of varnish, paint papyrus white,
Nozzle with suction grille.
Terminal box on the motor.
Impeller with 7 blades made of thermoplastic.
High efficiency, low operating
noise. Vibration-free operation through
Dynamic balancing to grade G 6.3
VDI 2060 and DIN ISO 1940. Can be used in
The range of -30 to +60 degrees C.
Single phase capacitor motor
closed design, maintenance-free, with
in the coil built-in thermal
overclock speed controllable by tension-
tion reduction, sealed, low-
poor ball bearing with long-term lubrication,
reversible.
Fan-data (default)

Vol.str. 0 Pa at 2070 m3 / h
Vol.str. Betr.pkt. m3 / h
Max pressure 70 Pa increase
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium temperature 40 degC
Angle of 0 degrees
Operating time h
Speed ​​1405 1/min
consumpt. Power 0,132 kW
Weight 8 kg
Sound power 71 dB (A)
Sound pressure at 4m 51 dB (A)

230 Volt
Current consumption 0.6 Amp
AC / AC W
Frequency 50 Hz
B insulation
Degree of protection IP 55
Explosion protection N
Temperature class

Make: Helios
Item No.: 1004
Type: HWW 315/4 TK
______________________________________
Type: HWW 315/4 TK
