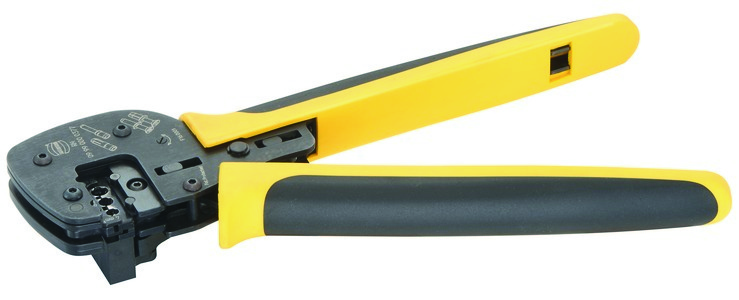

Harting 09990000377 crimping pliers Han C 6 mm² + 10 mm²
|
396,65 EUR |
|
|
( 472,02 EUR incl. VAT ) ≈ £331.60 | ≈ $438.30 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 125431 |
| Mfg Part No: | 09990000377 |
| UPC/EAN: | 5713140106758 |
| Weight: | 0.123 kg |
| Type: | 09990000377 |
Product information for Harting 09990000377:
Crimping pliers
The crimping pliers are designed as a hand tool, operated without additional power supply or auxiliary tools. Mechanical force is generated by manually actuating the plier handles, ensuring uniform and controlled crimping of the conductor at the contact point. The tool design ensures optimal fit for the specified cross-sections, achieving high connection quality. The pliers are suitable for cables with a conductor cross-section of 4 to 10 mm², with specific crimp dies provided for 6 mm² and 10 mm².
Applications
The tool is used in industrial applications, particularly for mounting connectors in electrotechnics and data communication. It is suitable for applications requiring high mechanical strength and electrical conductivity of the connection. The crimping pliers are frequently used during installation of network cables, control lines, or other electrical connections where a reliable and durable connection is necessary. Use is typically manual, without additional tools or accessories.
Functions and equipment in detail
The crimping pliers feature two crimp dies designed for cross-sections of 6 mm² and 10 mm². These dies are integrated into the tool and enable precise shaping of the conductor at the contact point. The tool construction ensures uniform force transmission, resulting in homogeneous crimping. The pliers are designed for cables with a conductor cross-section of 4 to 10 mm², with specific dies provided for 6 mm² and 10 mm². Operation is performed by manually actuating the plier handles, enabling controlled and secure crimping.
Technology explained simply
The crimping pliers operate on the principle of mechanical deformation. During crimping, the conductor is shaped by the pliers into a specific form that creates a secure connection with the contact pin or socket. The shape of the crimp dies is designed to ensure optimal fit for the specified cross-sections. Mechanical force is generated by manually actuating the plier handles, ensuring uniform and controlled crimping. The tool design ensures even force distribution onto the conductor, achieving high connection quality.
Compatibility and accessories
The tool is specifically designed for use with Han C series connectors by Harting. It is suitable for cables with a conductor cross-section of 4 to 10 mm², with crimp dies provided for 6 mm² and 10 mm². Use is exclusively manual, without additional tools or accessories.
Assembly and installation
Assembly is performed by manually actuating the plier handles. The conductor is inserted into the appropriate crimp die, and the pliers are closed, deforming the conductor and securing it at the contact point. The connection is created through mechanical deformation of the conductor, resulting in a secure and durable connection. Operation requires no additional tools or accessories, and crimping is performed solely by manual actuation of the pliers.
Advantages in operation
The crimping pliers provide a reliable and durable connection that meets requirements for electrical conductivity and mechanical strength. The precise shaping of the conductor through the specialised crimp dies ensures high connection quality. Operation is simple and requires no additional tools or accessories. The pliers are suitable for industrial use, particularly for mounting connectors in electrotechnics and data communication.
| General | |
| Conductor cross section | 4...10 mm² |
| Crimp shapes | 6 mm², 10 mm² |
| Tool type | hand crimping tool |
| Series | Han C |
| Manufacturer | Harting |
Questions & answers
What is the delivery time of Harting 09990000377 crimping pliers Han C 6 mm² + 10 mm²?
The article Harting 09990000377 crimping pliers Han C 6 mm² + 10 mm² is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Harting 09990000377 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Harting 09990000377 crimping pliers Han C 6 mm² + 10 mm² always at the best possible price. We can give you a discount of 2% on Harting 09990000377 crimping pliers Han C 6 mm² + 10 mm² if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
