Harting 09990000175 Crimp pliers for Min D single contacts

Your rating:
Average rating
product review for Harting 09990000175 Crimp pliers for Min D single contacts
( 4.4 / 5 ) 25 ratings

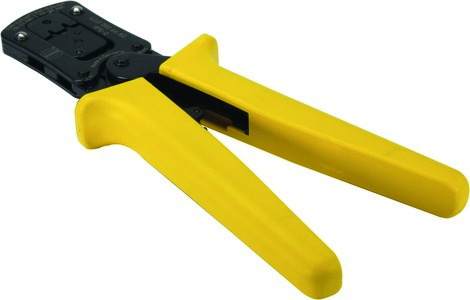

Harting 09990000175
This image may differ from the desired article.
Harting 09990000175Harting 09990000175
329,30 EUR
( 391,87 EUR incl. VAT )
≈ £275.29  |  ≈ $363.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Harting 09990000175 Crimp pliers for Min D single contacts
Lieske Part No.:267696
Mfg Part No: 09990000175
UPC/EAN: 5713140105782
Weight:0.123 kg
Type:09990000175

Product information for Harting 09990000175:

The Harting crimping pliers, type 09990000175, is a hand crimping tool for processing punched D-Sub single contacts. It is designed for precise and secure crimp connections of conductors with a cross-section of 0.09 to 0.56 mm². The tool is specifically designed for use in the field of electrical and IT installation, where reliable and durable contact connections are required.

Crimping pliers
The pliers enable a mechanical connection between the conductor and the D-Sub single contact by crimping, i.e. deforming the contact around the conductor. This ensures a stable electrical connection without additional soldering. The construction is designed for processing mini D-Sub contacts, which are commonly used in industrial and technical applications.

Applications
The tool is used in the field of electrical installation, IT infrastructure, and industrial electronics, where D-Sub connectors are used for signal transmission. It is particularly suitable for mounting single contacts in connectors found in computers, control devices, measuring instruments, and other electronic devices.

Functions and equipment in detail
The crimping pliers are designed as a hand tool that operates without additional power supply or auxiliary tools. The tool's design enables precise guidance of the contact and conductor, resulting in an even crimp connection. The tool opening is adapted to the geometry of punched D-Sub single contacts to ensure optimal fit.

Technology explained simply
Crimping is performed by inserting the conductor into the contact and then deforming the contact using the pliers. Force transmission occurs via the plier jaws, which deform the contact to securely enclose the conductor. The specified conductor cross-section range of 0.09 to 0.56 mm² covers small to medium cable cross-sections typical for data and control lines. The tool construction ensures that the crimp connection remains mechanically stable and electrically conductive.

The pliers are designed for processing punched D-Sub single contacts, meaning they are not suitable for other contact types such as screwed or soldered contacts. Use is limited to the specific contact geometry.

Compatibility and accessories
The tool is specifically designed for punched D-Sub single contacts. It is not intended for other contact types or connectors. Use with other contacts may result in inadequate connections or damage to the tool.

Mounting and installation
Mounting is done manually: the conductor is inserted into the contact, the contact is placed into the pliers, and by pressing the plier levers, the contact is deformed. Handling requires no special tool force, but controlled force transmission to achieve an even crimp connection.

Advantages in operation
The crimping pliers enable a quick and reliable connection without additional tools or materials. The mechanical connection is durable and resistant to vibrations and mechanical stress. The use without soldering reduces the risk of thermal damage to the conductor or contact. The tool construction ensures high precision and reproducibility of the crimp connection.

General
ManufacturerHarting
Product typecrimping tool
Applicationfor punched D-Sub single contacts
Conductor cross section0,09...0,56 mm²


Questions & answers

What is the delivery time of Harting 09990000175 Crimp pliers for Min D single contacts?

The article Harting 09990000175 Crimp pliers for Min D single contacts is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Harting 09990000175 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Harting 09990000175 Crimp pliers for Min D single contacts always at the best possible price. We can give you a discount of 2% on Harting 09990000175 Crimp pliers for Min D single contacts if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
