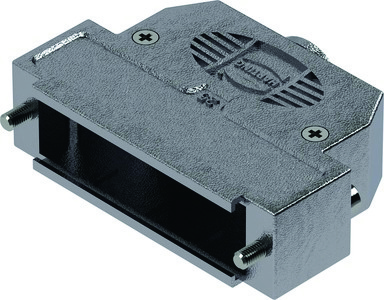

Harting housing 09670250443 D-Sub 25-pin

Your rating:
Average rating
product review for Harting housing 09670250443 D-Sub 25-pin
( 4.5 / 5 ) 12 ratings
Harting 09670250443
This image may differ from the desired article.
Harting 09670250443Harting 09670250443
79,17 EUR
( 94,21 EUR incl. VAT )
≈ £65.95  |  ≈ $86.85
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 10 pieces
1x Harting housing 09670250443 D-Sub 25-pin
Lieske Part No.:237929
Mfg Part No: 09670250443
Weight:0.123 kg
Type:09670250443

Product information for Harting 09670250443:

The shell housing of size D-Sub 3 from Harting, type 09670250443, is a component for mounting D-Sub connectors. It serves as a mechanical protection and mounting element for connectors in the field of electrical and IT technology. The housing is designed for use in devices and systems where a secure and stable connection is required, for example in industrial controls, measuring instruments, or communication systems.

Shell housing
The housing is designed as a shell housing, meaning it consists of a housing body and a separate cover that is fastened with screws. This design enables easy assembly and maintenance, as the cover can be removed to insert or remove the connector. The fastening is done using short locking screws with thread 4-40 UNC, ensuring secure fixation.

Size D-Sub 3
The size D-Sub 3 refers to the standard dimensions for D-Sub connectors with 25 contacts. The housing is specifically designed for this size and thus fits exactly to D-Sub connectors with a 25-pole arrangement. The precise fit ensures mechanical stability and prevents misalignment of the plug.

Material and surface treatment
The housing is made of plastic that is metallized. The metallic coating improves electromagnetic shielding and can be advantageous in applications with high interference. The metallized surface also increases mechanical strength and resistance to environmental influences.

Protection class IP30
The protection class IP30 means that the housing is protected against entry of solid foreign objects with a diameter of at least 2.5 mm. This excludes, for example, dust and small objects, but provides no protection against water or splashing water. The housing is therefore suitable for indoor use where no direct environmental influences such as moisture or dampness occur.

Cable entry
The housing features a straight cable entry, which is available once. This entry allows a cable to be guided directly into the housing, ensuring proper and secure cabling. The straight design simplifies assembly and reduces mechanical stress on the cable.

Application areas
The shell housing is intended for use in electronic devices and systems where D-Sub connectors are used. Typical application areas include industrial controls, measuring and testing equipment, computer peripherals, as well as communication and network technology. The robust design and metallized surface also make it suitable for environments with electromagnetic interference.

Compatibility and accessories
The housing is specifically designed for D-Sub connectors with a 25-pole arrangement. It is compatible with connectors of size D-Sub 3. No additional components are required for mounting, as the housing is already equipped with the necessary locking screws.

Mounting and installation
Mounting is done by screwing the cover to the housing body using the integrated short locking screws. The connector is inserted into the housing before fastening. The straight cable entry simplifies cabling. Mounting does not require special tools, although a screwdriver is necessary for securing the screws.

Advantages in operation
The shell housing provides a stable and secure fixation for D-Sub connectors. The metallized surface improves electromagnetic shielding, which enhances signal quality in interference-prone environments. The simple assembly and maintenance via the screwable cover system reduces installation effort and enables quick repair.

The item price shown refers to 10 pieces Harting 09670250443
General
Construction sizeD-Sub 3
Type of enclosureshell housing
Cover attachmentscrewable
Locking screwsShort
Thread4-40 UNC
Cable inputStraight
Number of cable entries1
Housing materialplastic, metallized
Degree of protectionIP30


Questions & answers

What is the delivery time of Harting housing 09670250443 D-Sub 25-pin?

The article Harting housing 09670250443 D-Sub 25-pin is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Harting 09670250443 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Harting housing 09670250443 D-Sub 25-pin always at the best possible price. We can give you a discount of 2% on Harting housing 09670250443 D-Sub 25-pin if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Harting housing 09670250443 D-Sub 25-pin is offered by us in a sales unit of 10 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
