Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated

Your rating:
Average rating
product review for Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated
( 4.4 / 5 ) 34 ratings

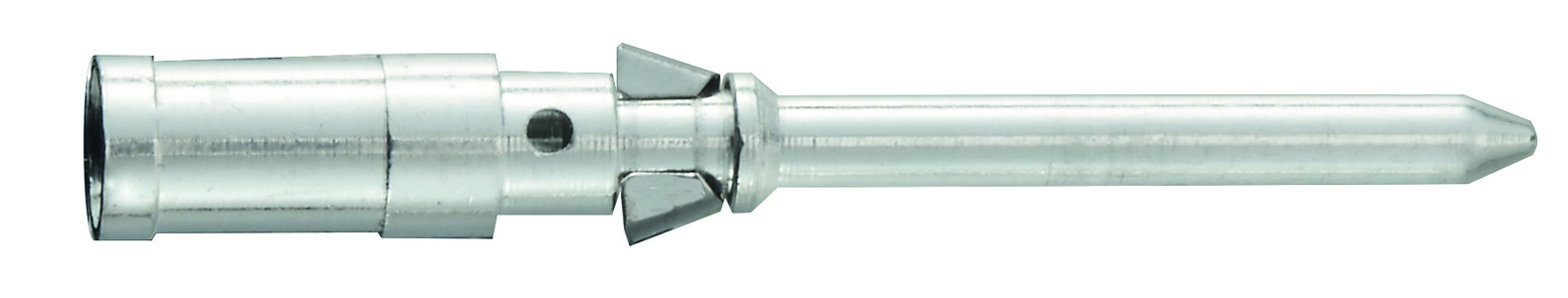

Harting 09150006104
This image may differ from the desired article.
Harting 09150006104Harting 09150006104
86,69 EUR
( 103,16 EUR incl. VAT )
≈ £72.21  |  ≈ $95.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
Sales unit: 100 pieces
In Stock: >10 pieces
1x Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated
Lieske Part No.:684007
Mfg Part No: 09150006104
UPC/EAN: 5713140021839
Weight:0.123 kg
Type:09150006104

Product information for Harting 09150006104:

The article is a crimp contact pin of the brand Harting, type 09150006104, specifically designed for use in connectors in the field of electrical engineering and industrial electronics. It is intended for secure and durable connection of cables with a conductor cross-section of 0.14 to 0.37 mm², corresponding to the American AWG scale 26 to 22. The contact is made of a copper alloy and is silver-plated, ensuring high electrical conductivity and corrosion resistance. The rated current is 10 A, making it suitable for applications with moderate current loads.

Crimp contact is a connection technique in which the cable end is clamped into the contact using a special tool (crimping tool) to create a mechanically stable and electrically reliable connection. This method is commonly used in industrial electrical installations and machine building, where quick assembly and high reliability are required.

Applications include primarily the cabling of connectors, enclosures, drive technology, and other electrical components where cables with a cross-section of 0.14 to 0.37 mm² are processed. The contact is intended for use in connectors that are assembled using crimping technology and is suitable for applications requiring a permanent electrical connection without additional soldering.

Functions and features in detail include the use of a copper alloy as the base material, which ensures good electrical conductivity and mechanical strength. The silver plating of the contact surface increases corrosion resistance and prevents the formation of oxides that could impair electrical conductivity. The pin shape allows for insertion into corresponding sockets or connectors, with the exact fit designed for the desired conductor cross-section size.

Technology explained simply means that the contact is connected to the cable not by soldering, but by mechanical crimping. This requires a special crimping tool that deforms the contact to securely clamp the cable. The silver plating ensures that the contact surface maintains its conductivity even under prolonged load and exposure to moisture or humidity. The rated current of 10 A is the maximum current the contact can transmit continuously without overheating or damage.

Compatibility and accessories refers to use in connectors designed for crimping technology. The contact is designed for conductor cross-sections of 0.14 to 0.37 mm² (AWG 26 to 22) and must be processed with a matching crimping tool.

Installation and mounting is performed by crimping the contact using an appropriate tool. The cable end is stripped, the contact is placed onto the cable, and then deformed using the crimping tool to create a secure mechanical and electrical connection. The installation does not require soldering and is therefore faster and often safer than soldered connections, especially in environments with vibrations or mechanical stress.

Operational advantages include the high reliability of the crimp connection, easy installation without soldering, and good corrosion resistance due to silver plating. The connection remains stable even under mechanical stress, making it particularly suitable for industrial applications. The rated current of 10 A allows use in a wide range of applications that do not require extremely high current loads.

The item price shown refers to 100 pieces Harting 09150006104
General
Degree of protectionSilver-plated
Rated current10 A
Conductor cross section0,14...0,37 mm²
AWG size26...22
MaterialCopper alloy
ShapePin
Connection technologyCrimp


Questions & answers

What is the delivery time of Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated?

The article Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Harting 09150006104 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated always at the best possible price. We can give you a discount of 2% on Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Harting 09150006104 Crimp contact pin 0.14–0.37 mm² silver-plated is offered by us in a sales unit of 100 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
