Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated

Your rating:
Average rating
product review for Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated
( 4.3 / 5 ) 11 ratings

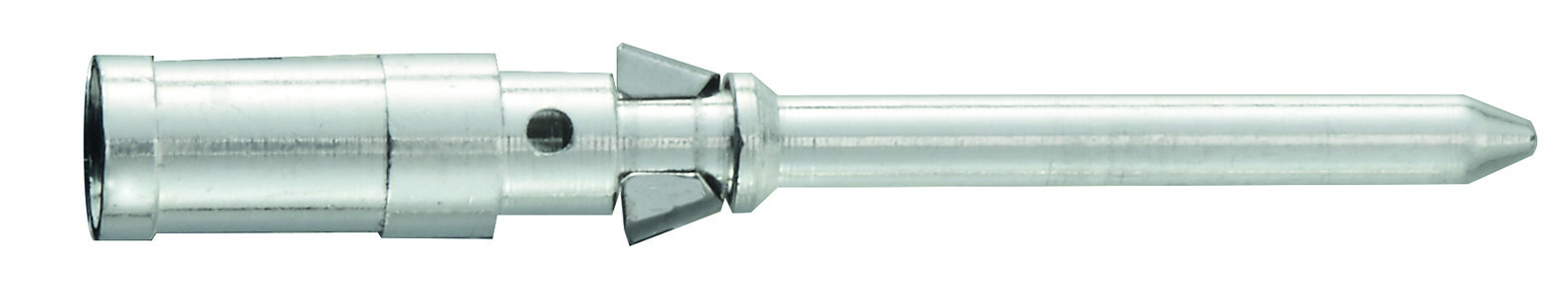

Harting 09150006103
This image may differ from the desired article.
Harting 09150006103Harting 09150006103
86,69 EUR
( 103,16 EUR incl. VAT )
≈ £72.21  |  ≈ $95.10
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
Sales unit: 100 pieces
In Stock: >25 pieces
1x Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated
Lieske Part No.:664300
Mfg Part No: 09150006103
UPC/EAN: 5713140021822
Weight:0.123 kg
Type:09150006103
Graduated prices net
From piecesPrice per pieces
686,04 EUR
1285,39 EUR
2484,74 EUR
3684,09 EUR

Product information for Harting 09150006103:

The item is a crimp contact pin from the brand Harting, type 09150006103, specifically designed for connecting cables with a cross-section of 0.5 mm² (equivalent to AWG 20). It serves as an electrical connection in connectors and is attached to the cable end by crimping – that is, compressing. The connection is made using a copper alloy coated with silver to ensure high electrical conductivity and corrosion resistance. The contact is rated for a nominal current of 10 A, making it suitable for applications in electrical engineering and mechanical engineering, where stable and reliable current transmission is required.

Crimp contact is the general term for a contact that is mechanically compressed onto a cable end. This method provides a secure and durable connection without requiring additional soldering or screw connections. The pin type is intended for insertion into sockets or connectors, where the shape of the contact ensures a secure mechanical and electrical connection. The use of a copper alloy ensures good electrical conductivity, while the silver-plated surface reduces oxidation tendency and maintains contact quality over a long period.

Applications include particularly the installation in industrial connectors, where high reliability and resistance to environmental influences are required. The contact is designed for use in electrical circuits with a maximum current of 10 A, making it suitable for many standard applications in automation technology, mechanical engineering, and plant construction. The specific design for a conductor cross-section of 0.5 mm² (AWG 20) allows use with thin cables, such as those found in control wiring or sensor cables.

Functions and equipment in detail include mechanical stability provided by the crimping principle, which ensures a firm connection between cable and contact. The silver plating layer ensures low contact resistance and prevents the formation of oxides that could impair conductivity. The copper alloy provides sufficient strength to withstand mechanical loads during operation without breaking or deforming. The precise fit of the pin enables secure insertion into compatible connectors.

Technology explained simply means that the contact is not soldered, but instead compressed onto the cable end using a special tool – a crimping tool. This process connects the cable material with the contact material through mechanical deformation, creating a durable and electrically conductive connection. The silver plating increases the contact's lifespan by slowing oxidation and thus maintaining contact quality over a longer period. The rating for 10 A ensures that the contact functions without overheating or wear under normal operating conditions.

Compatibility and accessories refers to use in connectors designed for a conductor cross-section of 0.5 mm². The precise fit of the pin enables use in standard connectors of the same series.

Installation and mounting is carried out using a crimping tool specifically designed for the 0.5 mm² cross-section. Before crimping, the cable end is stripped to allow the conductor strands to be fully inserted into the contact. The tool then compresses the contact onto the cable, creating a secure mechanical and electrical connection.

Operational advantages lie in the high reliability of the crimp connection, which remains stable over long periods under industrial conditions. The silver plating reduces contact resistance and prevents corrosion, extending the contact's lifespan. The mechanical strength of the copper alloy ensures the contact does not break even under mechanical stress. The simple mounting without soldering or screwing reduces installation time and minimizes error sources.

The item price shown refers to 100 pieces Harting 09150006103
General
Product typecrimp contact pin
Rated current10 A
Conductor cross section0,5 mm²
AWG designation20
MaterialCopper alloy
Surface coatingSilver-plated


Questions & answers

What is the delivery time of Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated?

The article Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Harting 09150006103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated always at the best possible price. We can give you a discount of 2% on Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated we can offer you a price of 86,04 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Harting 09150006103 Crimp contact pin 0.50 mm² silver-plated is offered by us in a sales unit of 100 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
