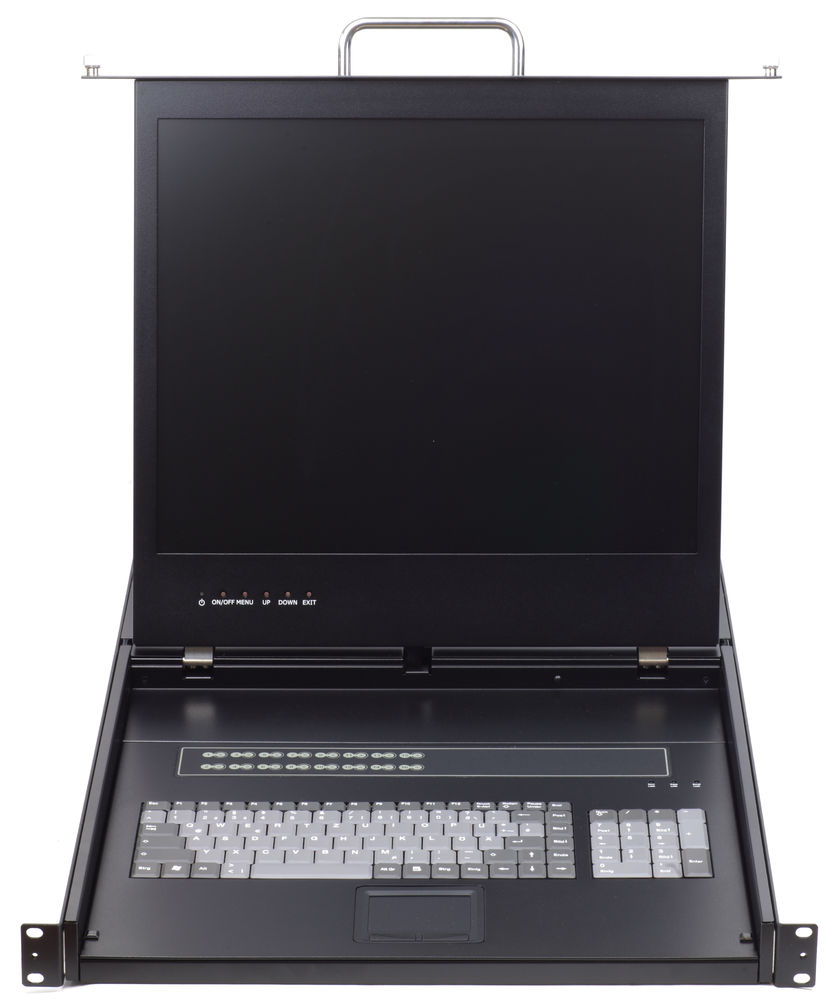

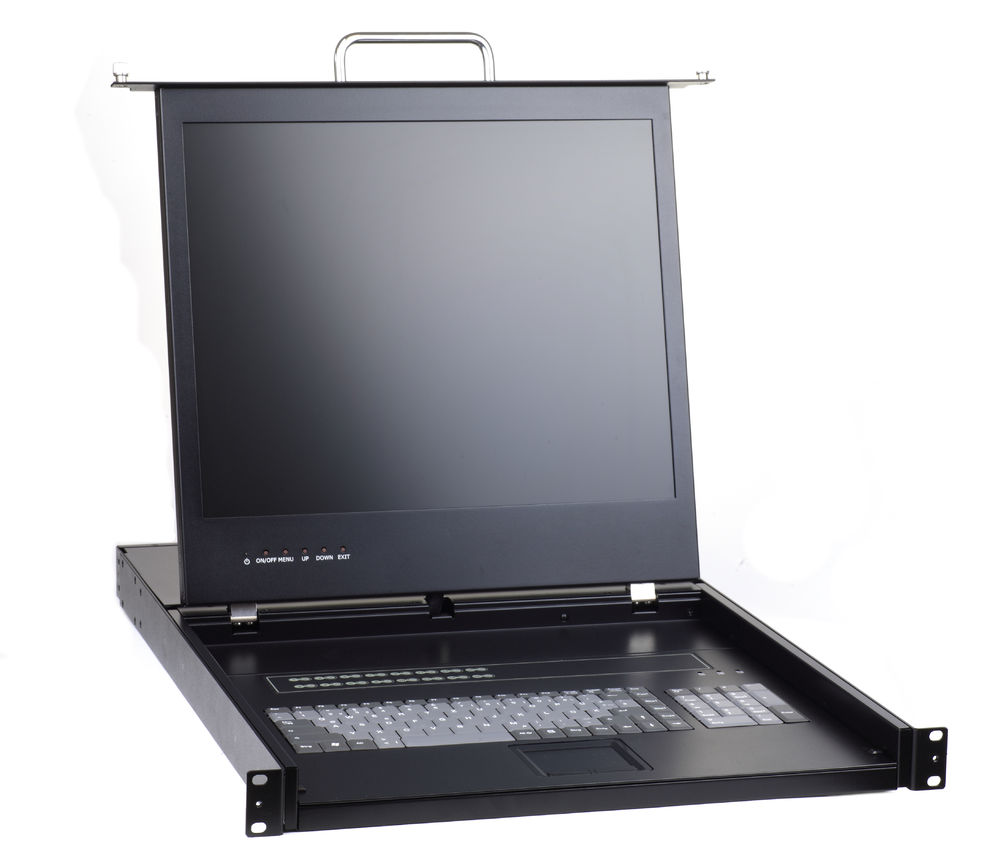

HAITWIN-DELPHIN AW-1932K5 1U 19 inch LCD Monitor Keyboard Drawer with integrated 32 port CAT5 KVM ()

Your rating:
Average rating
Rating for HAITWIN-DELPHIN AW-1932K5 1U 19 inch LCD Monitor Keyboard Drawer with integrated 32 port CAT5 KVM ()
( 4.5 / 5 ) 136 ratings
HAITWIN-DELPHIN AW-1932K5HAITWIN-DELPHIN AW-1932K5HAITWIN-DELPHIN AW-1932K5HAITWIN-DELPHIN AW-1932K5
HAITWIN-DELPHIN AW-1932K5
This image may differ from the desired article.
1.259,00 EUR
( 1.498,21 EUR incl. VAT )
Delivery time (ca.) 6 workdaysinfo_outline
1x HAITWIN-DELPHIN AW-1932K5 1U 19 inch LCD Monitor Keyboard Drawer with integrated 32 port CAT5 KVM ()
Datasheet:file_download Download
Lieske Part No.:550782
Mfg Part No: AW-1932K5
Weight:18 kg
Graduated prices net
From piecesPrice per pieces
21.240,12 EUR
41.221,23 EUR
61.202,35 EUR
81.183,46 EUR

Product information for HAITWIN-DELPHIN AW-1932K5:

Features:
Varions mounting slides for any (1000mm) 1U (19-inch) rack
integrated telescopic slides
Front panel lockable with practical knurled screws
RGB analog LCD display with a resolution of up to 1280x1024, and a brightness of 300 cd / m² (19 inches)
Fully integrated power supply 100V ~ 240VAC , 50 ~ 60Hz
32 Port CAT5 KVM
port Cascadable without loss
retrofit IP Module Specifications Case:


RoHS compliant
Heavy Duty Steel
Casing color RAL 9005 (RAL 7035 optional)
106 Key Windows PS / 2 keyboard with touchpad (trackball optional)
opening angle of 0 ° - 105 °

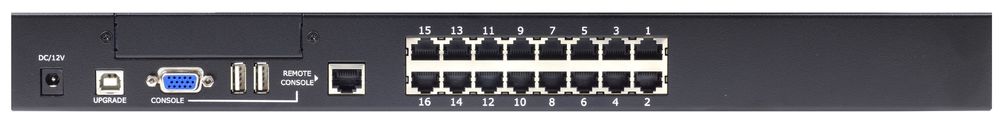

Connections: 16xRJ-45, DB-15 for daisy chain, RS-232
touchpad keyboard layouts: German / us-english / french / italian and spanish (further Layouts on request) Technical Specifications LCD monitor Screen size: 482.6 mm (19 inch) Resolution: 1280x1024 Maximum number of colors: 16.2 million





Frame rate:
H: 30.0 KHz - 70.0 KHz
V: 55.0 KHz - 75.0 KHz
Viewing Angle: H: 140 ° / V: 130 °
Bandwidth: 80MHz
Brightness: 300 cd / m²
Contrast: 700:1
Response time: 6ms
shadow mask: 0,294 mm (H) x 0.294 mm (V)
Backlight: 4xCCFL
Power Supply:
Input: 100V - 240V AC, 50Hz - 60Hz
Output: DC 12V, 4.2A Specifications CAT5 KVM Switch Connected computers: 32 Direct daisy-chain: a maximum of 256 port selection: OSD / hot key / push button terminals on the Rear: 32 x RJ45 (built-in), Daisy chain (DB-15), flash port (RS-232) release: Maximum 1280x1024 Flash Connection: RS-232 Maximum distance: 300 meters (in conjunction with optional USB dongle) Power Supply: DC 12V, 4.2A Support: USB ports for PC, SUN and MAC


Product data sheet
Datasheet for HAITWIN-DELPHIN AW-1932K5
