Hager ZU59LM7APZ2 EBsatz univ.ZH=1350mm for LM APZ 300mm RfZ 150mm MM 900mm 1-f.

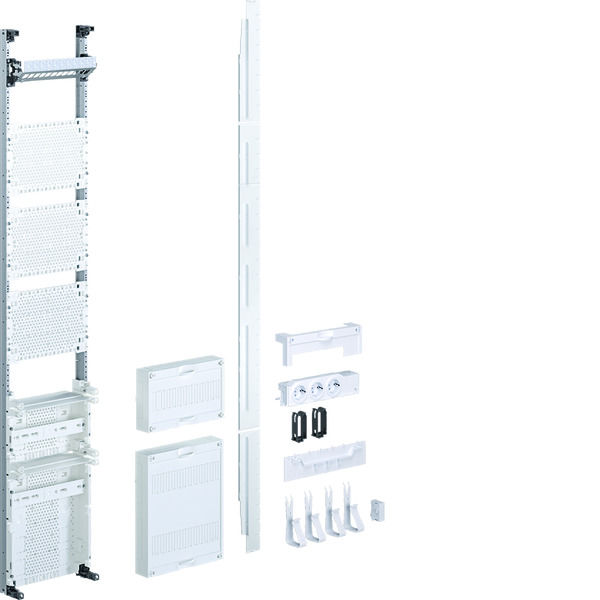

Installation kit, univ.Z, H=1350mm, for LM applications, APZ 300mm, RfZ 150mm, MM 900mm, 1-f..Installation kit for load management applications for installation in meter cabinet system using tool-free quick assembly in accordance with DIN VDE 0603. Pre-assembled installation kit consisting of support frame with support rails, patch panel and perforated plastic mounting plates for the multimedia area, additional space for load manager (RfL) and connection point meter location (APZ).
The APZ (HxW = 300x250 mm) for device component assembly for the APZ application is constructed as a complete plastic housing with side cable entries in the sealed area. Enclosed are: universal retaining bracket with screwless fastening of device components directly on the perforated plate, contact protection covers made of plastic with four-point fastening (sealable as standard) and integrated handle.
The RfL (HxW = 150x250 mm) is constructed as a complete plastic housing. A plastic top-hat rail is integrated for mounting the load manager (series-mounted device, not included).
The multimedia area for mounting the multimedia components for the load management application. Consists of an insulated, pre-assembled patch panel for 12 ports with labeling strips, 6 shielded data modules RJ45 Cat. 6 (500 MHz), 3-way protective contact sockets (rotatable 90 degrees) for cable connection via plug-in terminals, multimedia device holder for VDI components and cable retaining clips.
Note: A cable must be connected from the patch panel to the equipotential bonding rail (functional equipotential bonding according to DIN EN 50310 - VDE 0800-2-310) (not included). Partitions from the multimedia field next to other installation kits must be installed depending on the application (not included).
Type: ZU59LM7APZ2
