Hager ZH3EL22 Comp field , eHZ, height 1050mm 0.1 field.
|
949,14 EUR 989,11 EUR |
|||||||||||
|
( 1.129,48 EUR incl. VAT ) ≈ £816.26 | ≈ $1,079.17 plus delivery charges: 83,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 562422 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ZH3EL22 | ||||||||||
| UPC/EAN: | 3250617685191 | ||||||||||
| Weight: | 5.625 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ZH3EL22:

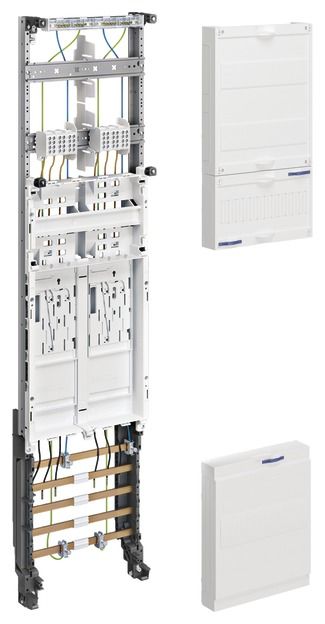

Complete panel, univers Z, 2 meter spaces, BKE-I, H=1050mm, 1-field. Complete panel / installation kit univers Z for eHZ for setting up meter spaces in accordance with DIN 43870, quick installation in the cabinet using a snap-in system, equipped and wired in accordance with VNB TAB regulations for eHZ meter spaces in accordance with DIN VDE 603-1 (VDE 0603-1).
Upper connection compartment: 1-row, height 150 mm with one top hat rail, 2-row, height 300 mm with two top hat rails, equipped with 3-/4- or 5-pole main line branch terminals, finger-safe in accordance with BGVA3 or equipped with __________ __________ ___________ -meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ meter support plate with integrated additional space (for communication and control devices).
Additional space: 1-field, height 150 mm, closed with cover, pre-punched for 12 PLE, sealable, with top hat rail 12 PLE, openings for cable routing.
Lower connection compartment: Height 300 mm equipped with top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________.
Type: ZH3EL22
Upper connection compartment: 1-row, height 150 mm with one top hat rail, 2-row, height 300 mm with two top hat rails, equipped with 3-/4- or 5-pole main line branch terminals, finger-safe in accordance with BGVA3 or equipped with __________ __________ ___________ -meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ meter support plate with integrated additional space (for communication and control devices).
Additional space: 1-field, height 150 mm, closed with cover, pre-punched for 12 PLE, sealable, with top hat rail 12 PLE, openings for cable routing.
Lower connection compartment: Height 300 mm equipped with top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________.
Type: ZH3EL22
