HAGER ZB015T connector base IP44 SKI, 500x1300x205mm

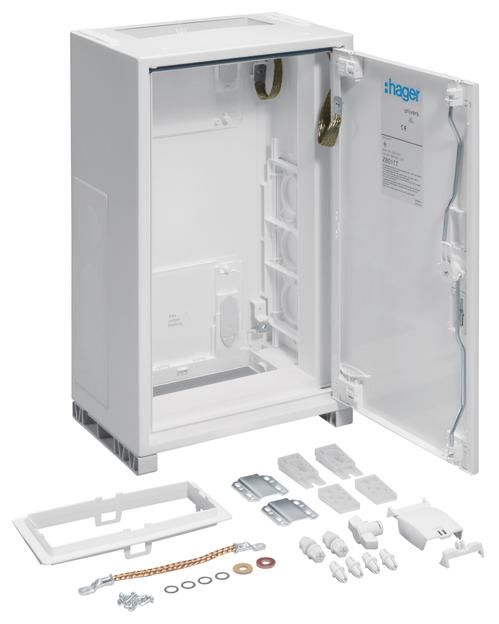

This image may differ from the desired article.

734,48 EUR

( 874,03 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

330429

Mfg Part No:

ZB015T

UPC/EAN:

3250617622394

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
3	690,41 EUR
6	646,34 EUR
9	602,27 EUR
12	558,20 EUR

Further Meter Cabinets from HAGER Further products in category Meter Cabinets All products of HAGER

Product information for HAGER ZB015T:

Connection base, universal, 500x1300x205mm, protection class I, IP44, 180 space units. Cabinet housing in accordance with DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted or partially recessed installation. For setting up a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP44 IP44 IP44 in accordance with DIN VDE 0470/1), protection class II protectively insulated, protection class IP3X behind the door. Consists of a cabinet with door made of powder-coated, baked-on, stably profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear knockout in the plastic part and busbar bushings as side knockouts on both sides in the lower area. Door flush with the front with internal, adjustable hinges, can be opened on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and one above the other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).
Type: ZB015T

Questions & answers

What is the delivery time of HAGER ZB015T connector base IP44 SKI, 500x1300x205mm?

The article HAGER ZB015T connector base IP44 SKI, 500x1300x205mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of HAGER ZB015T to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you HAGER ZB015T connector base IP44 SKI, 500x1300x205mm always at the best possible price. We can give you a discount of 2% on HAGER ZB015T connector base IP44 SKI, 500x1300x205mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of HAGER ZB015T connector base IP44 SKI, 500x1300x205mm we can offer you a price of 690,41 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of HAGER ZB015T connector base IP44 SKI, 500x1300x205mm via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	HAGER ZB015T - connector base IP44 SKI 500x1300x205mm HAGER ZB015T connector base IP44 SKI, 500x1300x205mm	734,48 EUR
