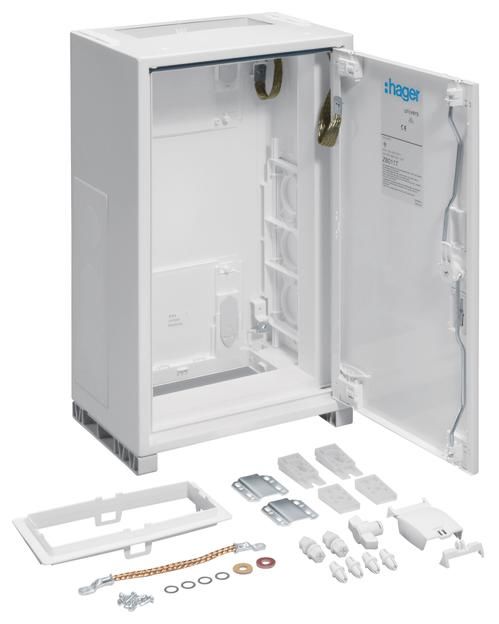

HAGER ZB014T connector base IP44 SKI, 500x1050x205mm

This image may differ from the desired article.

636,27 EUR

( 757,16 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

330350

Mfg Part No:

ZB014T

UPC/EAN:

3250617622387

Weight:

0.12 kg

Graduated prices net

From pieces	Price per pieces
3	598,09 EUR
6	559,92 EUR
9	521,74 EUR
12	483,57 EUR

Further Meter Cabinets from HAGER Further products in category Meter Cabinets All products of HAGER

Product information for HAGER ZB014T:

Connection base, universal, 500x1050x205mm, protection class, IP44, 144 space units. Cabinet housing according to DIN VDE 0603/1, dimension standard DIN 43 870 for surface-mounted, flush-mounted or partially recessed installation. For setting up a meter distribution system up to 355 A, rated voltage 230/400 V 50 Hz. Protection class IP44 IP44 IP44 according to DIN VDE 0470/1), protection class II protectively insulated, protection class IP3X behind the door. Consists of a cabinet with door made of powder-coated, baked-on, stably profiled 1 mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates, rear pre-punching in the plastic part and busbar bushings as side pre-punching on both sides in the lower area. Door flush with the front with internal, adjustable hinges, can be opened on the right or left with an opening angle of 110°. Door lock with sash, from a width of 800 mm and for all cabinets from a height of 1250 mm with three-point locking. Door lock can be replaced with other locks. Cabinets can be flanged next to each other and one above the other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE).
Type: ZB014T

Questions & answers

What is the delivery time of HAGER ZB014T connector base IP44 SKI, 500x1050x205mm?

The article HAGER ZB014T connector base IP44 SKI, 500x1050x205mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of HAGER ZB014T to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you HAGER ZB014T connector base IP44 SKI, 500x1050x205mm always at the best possible price. We can give you a discount of 2% on HAGER ZB014T connector base IP44 SKI, 500x1050x205mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of HAGER ZB014T connector base IP44 SKI, 500x1050x205mm we can offer you a price of 598,09 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of HAGER ZB014T connector base IP44 SKI, 500x1050x205mm via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
