Hager ZAX007 buried plinth size 2

Your rating:
Average rating
product review for Hager ZAX007 buried plinth size 2
( 4.1 / 5 ) 9 ratings
Hager ZAX007
This image may differ from the desired article.
Hager ZAX007Hager ZAX007
803,51 EUR
( 956,18 EUR incl. VAT )
≈ £672.54  |  ≈ $883.06
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
In Stock: 3 pieces
1x Hager ZAX007 buried plinth size 2
Datasheet:file_download Download
Lieske Part No.:288953
Mfg Part No: ZAX007
UPC/EAN: 3250611072065
Weight:17.3 kg
Type:ZAX007
Graduated prices net
From piecesPrice per pieces
3761,33 EUR
6719,14 EUR
9676,96 EUR
12634,77 EUR

Product information for Hager ZAX007:

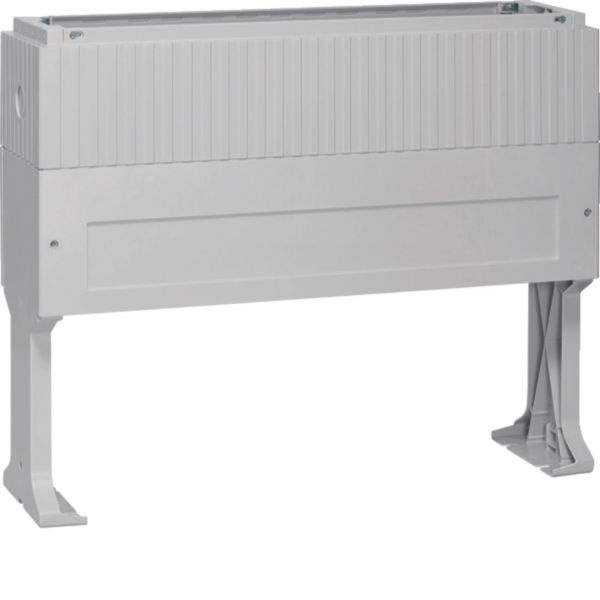

The ZAX007 buried plinth from Hager is a complete plinth kit designed for outdoor use, specifically developed for the installation of distributors and meter enclosures in damp environments. It is designed for KVS size 2 and reaches a height of 900 mm. The robust construction made of glass-fibre-reinforced polyester ensures high mechanical stability and weather resistance. The colour is light grey, corresponding to RAL number 7035, and the surface is untreated. The plinth is designed for a maximum load of 100 kg, providing sufficient load capacity for typical distributor installations.

Applications
The plinth is specifically suitable for outdoor use and can be used in damp environments, such as for outdoor installations of electricity meter or distributor systems. The construction is designed for an enclosure width of 2 and an enclosure depth of 600 mm, making it suitable for standard distributor enclosures in KVS format. The impact resistance corresponds to standard IK10, indicating high resistance to mechanical impacts such as shocks or blows.

Functions and equipment in detail
The plinth features a profiled ribbed design that increases structural stability and ensures optimal load distribution. An integrated mounting rail made of angle steel (40 x 40 x 3 mm) enables effective tension relief using clamps. This is particularly important during cable installation to minimise mechanical stress on the enclosure. On the sides, pre-punched openings are provided, allowing flexible cable routing. These openings can be sealed with a cover (diameter 55 mm) to maintain weather protection.

Technology explained simply
The plinth is made of glass-fibre-reinforced polyester, a material known for its high strength, corrosion resistance, and weather resistance. The material selection ensures that the plinth does not deform or become damaged even after prolonged outdoor exposure. The IK10 impact resistance means the plinth is resistant to mechanical impacts such as shocks or blows up to a certain energy level. The maximum load capacity of 100 kg ensures stability under normal operating conditions. The plinth filler prevents condensation inside the plinth, protecting the functionality and lifespan of installed devices.

Compatibility and accessories
The plinth is designed for mounting distributors in KVS format, size 2. It is suitable for enclosures with a depth of 600 mm. The side openings allow for cable integration, while the covers maintain weather protection. The installation is partially recessed, ensuring secure fixation in the ground.

Installation and mounting
The installation is partially recessed, with the angle steel mounting rail enabling tension relief. The side openings can be used or sealed according to requirements. The pre-punched openings offer flexibility for cable routing. The installation does not require special tools, although the use of a floor grid is recommended for increased stability.

Advantages in operation
The plinth offers high mechanical stability and weather resistance, making it suitable for long-term outdoor use. The integrated tension relief via the mounting rail protects installed devices from mechanical stress. The side openings with covers allow flexible and weather-resistant cable routing. The plinth filler prevents condensation, protecting the functionality of installed devices. The materials are halogen-free, REACh-SVHC-free, and RoHS-compliant, ensuring environmental compatibility and safety.

General
ModelBase complete
MaterialPlastic
ColourGrey
Max. load capacity100 kg
Width1110 mm
Height900 mm
Depth315 mm
Suitable for enclosure building width2
Suitable for enclosure building depth600 mm
Impact strengthIK10
RAL-number (akin)7035
Suitable for aeration/de-aerationno
Suitable for cable patchno
Suitable for outdoor installationyes


Product data sheet
Datasheet for Hager ZAX007, EAN: 3250611072065
